Запчасти Case IH 810 (78.110.09.AA) - CHEMICAL INDUCTOR TANK ASSEMBLY (78) - SPRAYING

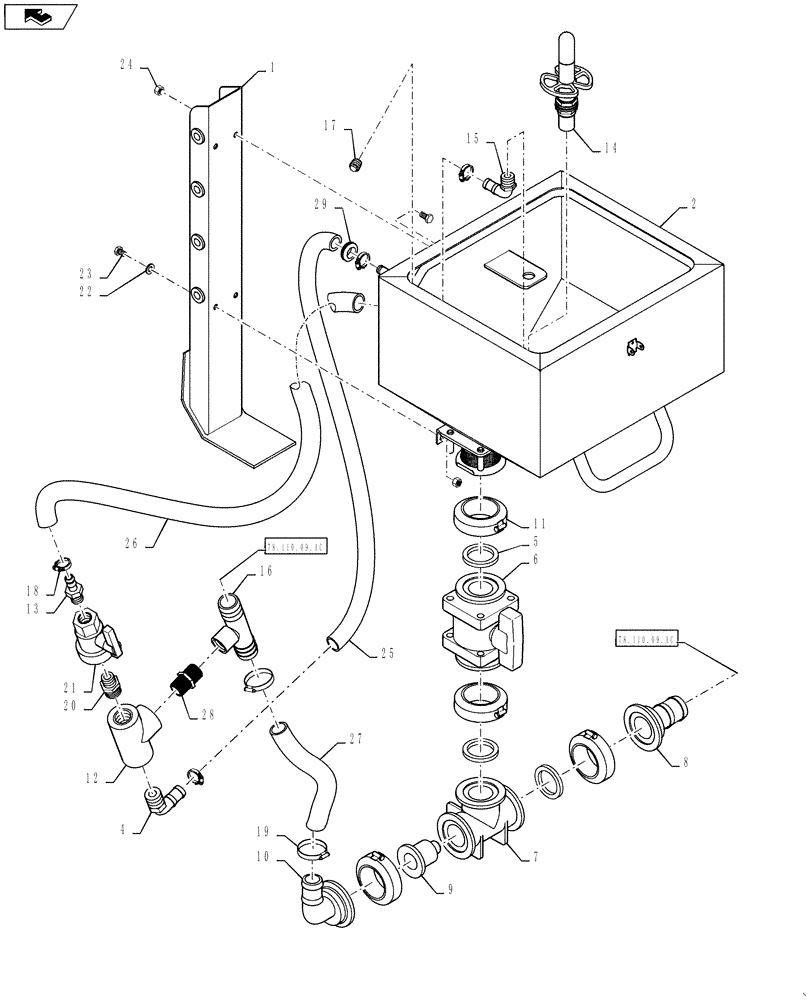

Схема запчастей Case IH 810 - (78.110.09.AA) - CHEMICAL INDUCTOR TANK ASSEMBLY (78) - SPRAYING
29
78.110.09.ac
78.110.09.ac
15
7
20
24
9
2
1
25
23
13
8
home
28
26
14
27
16
11
5
12
22
10
18
4
17
6
21
19

Артикул

Название

Примечание

Количество

1

BN313388

SUPPORT

Inductor

1шт.

2

BN320983

TANK

Inductor, Includes Ref 3

1шт.

3

BN53630

LATCH

Inductor Tank Lid, Not Shown

1шт.

4

BN73578

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

1шт.

5

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

6

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange, With Handle

1шт.

7

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

2" Flange, Poly

1шт.

8

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1-1/2" Hose Barb, Poly

1шт.

9

BN313919

VENTURI

Chemical Inductor, 1/4

1шт.

10

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1-1/4" Hose Barb, Poly

1шт.

11

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

12

BN73560

TEE

3/4" NPT, Poly

1шт.

13

BN73510

PIPE FITTING,1/2"Male Thread x 1/2"Hose Barb

Barb - 1/2" X 1/2" Poly

1шт.

14

BN310895

VALVE

Inductor, Jug Rinse

1шт.

15

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

16

BN311026

TEE

1 1/4" Hose Barb x 1 1/4" Hose Barb x 3/4" fp, Poly

1шт.

17

BN311050

PLUG

Pipe, 1/8" Poly Hex

1шт.

18

BN75956

CLAMP

#10 Stainless Steel

4шт.

19

87485002

CLAMP,1.06" - 2"

Worm Gear, 2"/1.06", Stainless Steel

2шт.

20

BN73572

NIPPLE, LUBE

NIPPLE 3/4-1/2, Poly

1шт.

21

BN311100

VALVE

Ball, 1/2" Poly

1шт.

22

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

23

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

24

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

25

BN311185

HOSE,0.50" ID x 24.00"

EPDM

1шт.

26

BN311186

HOSE,0.50" ID x 41.00"

EPDM

1шт.

27

BN24530

HOSE

1 1/4" EPDM x 6"

1шт.

28

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

29

BN85855

GROMMET

Large, 1/2" Hose

1шт.

Выбрано товаров: 29
