Запчасти Case IH 810 (78.110.08.AD) - PUMP STATION STRAINER, 2" NPT, "Y" STYLE (78) - SPRAYING

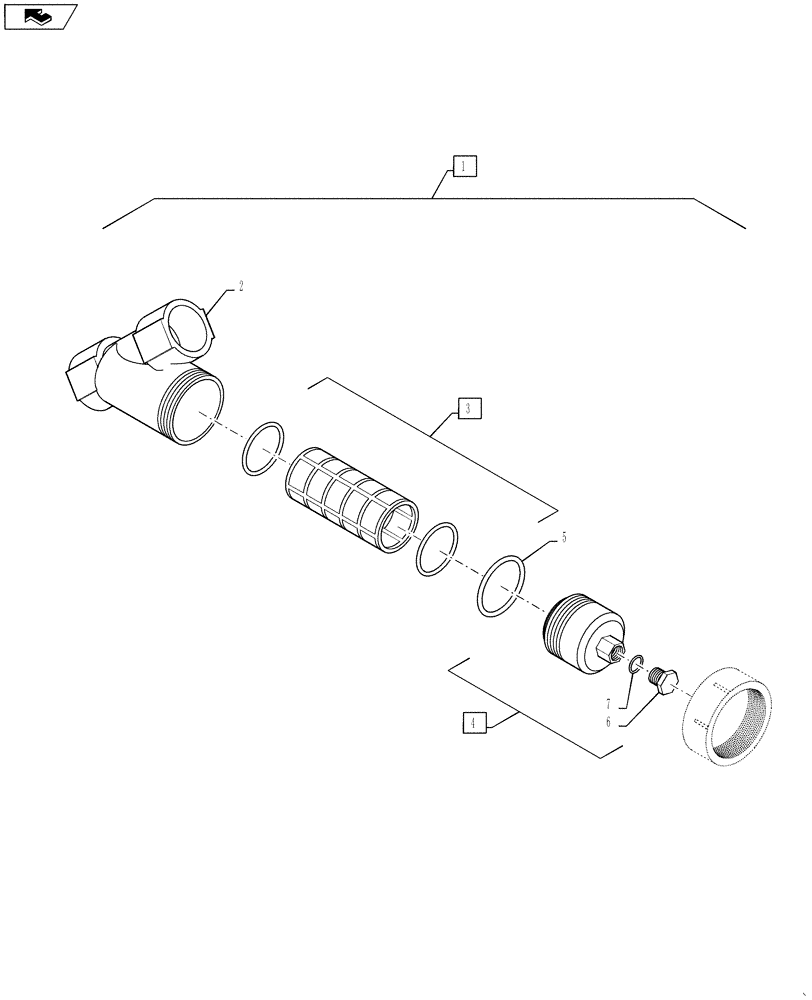

Схема запчастей Case IH 810 - (78.110.08.AD) - PUMP STATION STRAINER, 2" NPT, "Y" STYLE (78) - SPRAYING
2
3
4
7
1
5
6
home

Артикул

Название

Примечание

Количество

1

BN304320

FILTER STRAINER,2" x 2" Y Strainer

Product Strainer Assembly, 2" NPT, 12 Mesh, Includes Ref 2 - 7

1шт.

2

84595338

BODY,2" Y Body

2" NPT, Strainer Head, Poly

1шт.

3

BN73736

SCREEN

12 Mesh, SST, Strainer

1шт.

4

84588484

CAP,1-1/2" to 2" End Cap

1-1/2" - 2" "Y" Strainers, Poly, Includes Ref 6 - 7

1шт.

5

84588512

GASKET,EPDM Gasket for Y Strainer, 1 1/2 - 2"

1-1/2" - 2" "Y" Strainers

1шт.

6

87706931

PLUG,1" Clean Out Plug

Drain

1шт.

7

87706932

O-RING,1.174" ID x 1.38" OD x 0.103"

Drain Plug

1шт.

Выбрано товаров: 7
