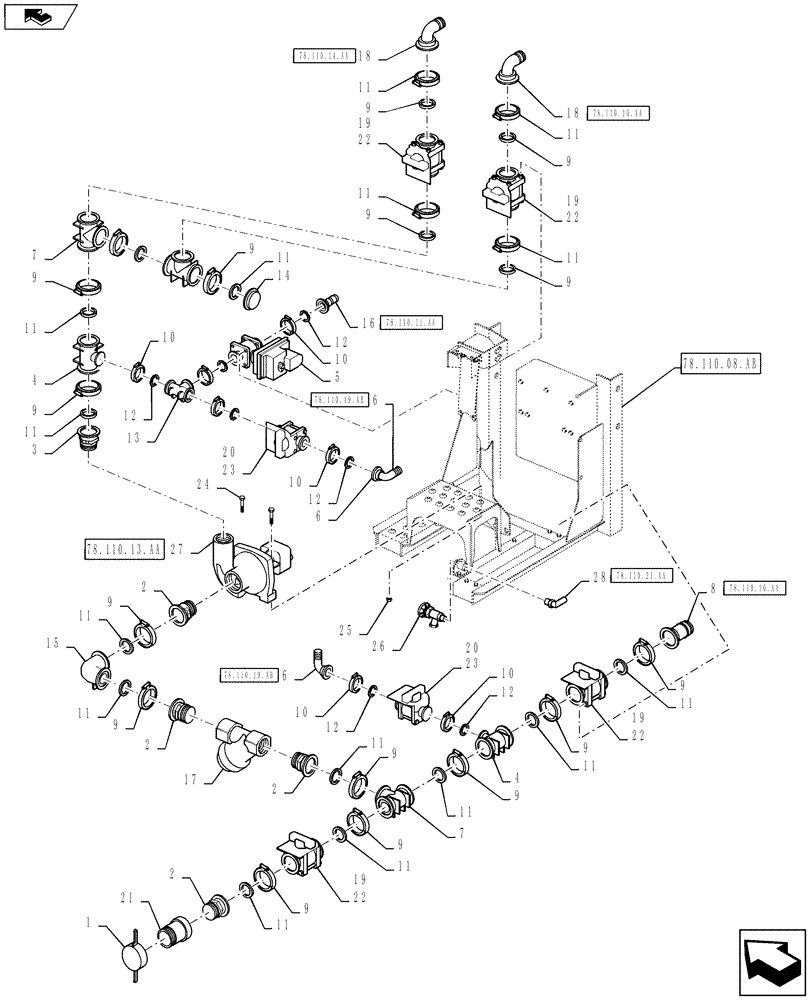

Запчасти Case IH 810 (78.110.08.AC) - PUMP STATION VALVE BREAKDOWN (78) - SPRAYING

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

4шт.

3

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

2шт.

5

87267520

VALVE,STD Port Regulating 1”, 8 Second, 2 Wire ARBB

Sparge Valve, 2 Wire

1шт.

6

435587A1

FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow

1" Flange x 1" Hose Barb, Poly

2шт.

7

405779A1

TEE,2" Port Flanged Tee

2" Flange Manifold, Poly

3шт.

8

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

9

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

16шт.

10

BN303203

CLAMP,1" Flange

1" Flange

7шт.

11

BN303199

CLAMP,2" Flange

2" Standard Flange

16шт.

12

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" Thick

7шт.

13

405787A1

TEE,1" Flanged Tee

1" Flange Manifold, Poly

1шт.

14

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

15

BN304318

COUPLING,90 Degree Elbow, 2" Flange x 2" Flange, Poly

2" Flange, 90

1шт.

16

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1" Flange X 1" Hose Barb

1шт.

17

BN304320

FILTER STRAINER,2" x 2" Y Strainer

Line, 2", 12 Mesh

1шт.

See Fig 78.110.08.AD For Service Parts

1шт.

18

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

2шт.

19

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange, With Handle

4шт.

20

BN304329

VALVE,1"FP Valve w/C-Flng & T Handle

Ball, 1" Flange, With Handle

2шт.

21

BN304330

ADAPTER

2" Cam X 2" NPT

1шт.

22

BN320997

BRACKET

Decal Mount, Stainless Steel

4шт.

23

BN320998

PLATE

Decal Mount, Stainless Steel

2шт.

24

87343970

NUT,3/8"-16, G8, DOR

2шт.

25

87342773

BOLT

3/8" -16 x 2", G5, DOR

2шт.

26

BN53817

DRAIN VALVE

Ball, 1/2" NPT x Garden Hose Thread, Blue Handle

1шт.

27

BN68766

PUMP

Product, 2" Inlet

1шт.

See Fig 78.110.13.AA For Service Parts

1шт.

28

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.
