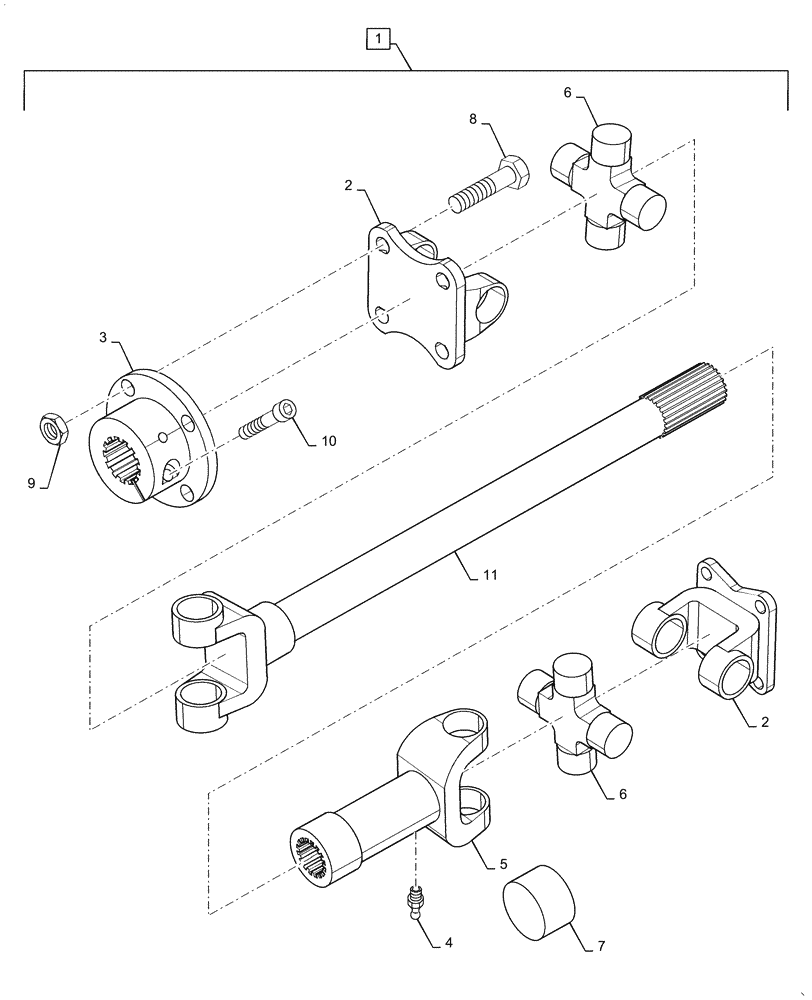

Запчасти Case IH 810 (35.220.06) - HYDRAULIC DRIVELINE, 4 WHEELER (35) - HYDRAULIC SYSTEMS

1

84188742

DRIVE SHAFT

Hydrostatic Pump, Includes Ref 2 - 11

1шт.

2

BN306563

FLANGE

Yoke

2шт.

3

BN313375

FLANGE

Pinch

1шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

5

BN313372

YOKE

Slip

1шт.

6

R2713

BEARING ASSY

Cross

1шт.

7

84192220

DUST CAP

1шт.

8

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

4шт.

9

86637736

NUT,7/16"-14, GB

4шт.

10

280257

HEX SOC SCREW,3/8" - 24 x 1 1/4"

CS HSH P .38-24X1.25

1шт.

11

84192584

PTO SHAFT

Yoke, Incl 6

1шт.
