Запчасти Case IH 810 (78.110.06.AB) - DOUBLE AND TRIPLE BIN LADDER (78) - SPRAYING

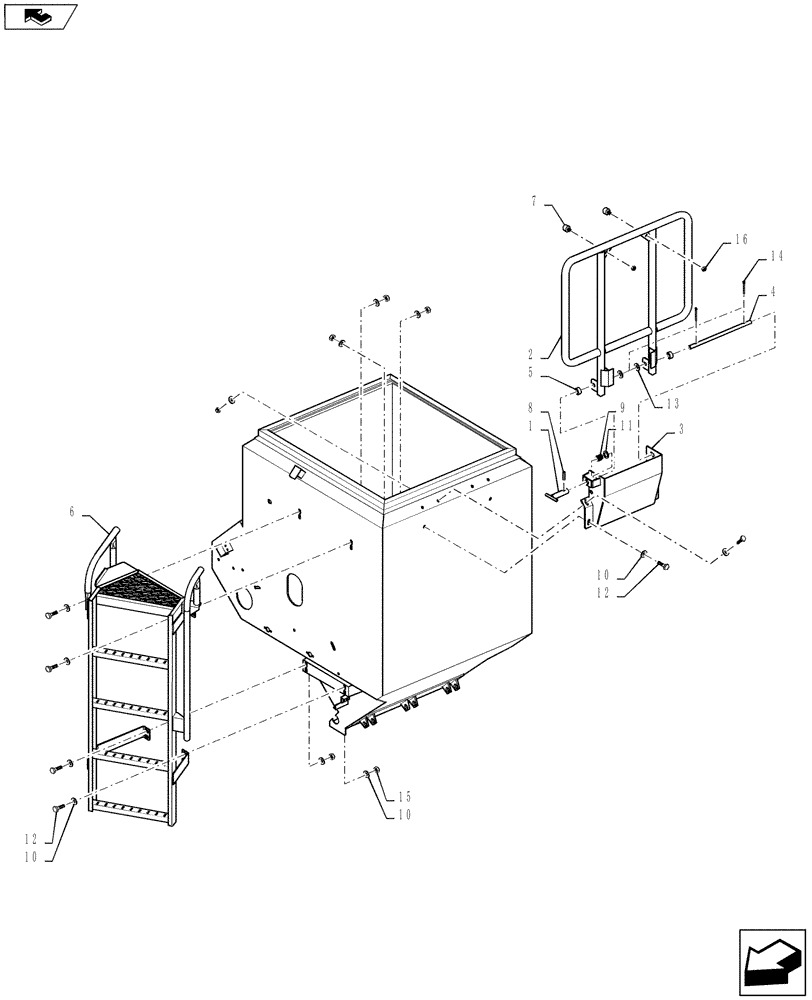

Схема запчастей Case IH 810 - (78.110.06.AB) - DOUBLE AND TRIPLE BIN LADDER (78) - SPRAYING
10
4
15
1
13
7
2
9
5
home
12
12
10
3
6
16
14
8
10
11

Артикул

Название

Примечание

Количество

1

BN05412

PIN

Handrail Locking

1шт.

2

BN308099

HANDRAIL

Co-Ap Bin

1шт.

3

BN308100

SUPPORT

Co-Ap Bin Handrail

1шт.

4

BN308104

PIN

Handrail, Pivot

1шт.

5

BN308105

BUSHING

Co-Ap Bin Handrail

2шт.

6

87267261

LADDER

Co-Ap Bin, LH

1шт.

7

BN310002

BUMPER

1" OD X 1" H

2шт.

8

BN31444

PIN, ROLL

1/4 X 1-1/2

1шт.

9

BN31937

SPRING

Compression, 0.76" x 2"

1шт.

10

BN50146

WASHER,3/8", Stainless

22шт.

11

87528981

WASHER,0.81" ID x 1.5" OD x 0.14" Thk

1шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

14шт.

13

BN50595

WASHER,1/2", Stainless

2шт.

14

BN50602

COTTER PIN

1/8" X 1-1/4"

2шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

14шт.

16

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

Выбрано товаров: 16
