Запчасти Case IH 810 (78.110.06.AA) - SINGLE BIN LADDER (78) - SPRAYING

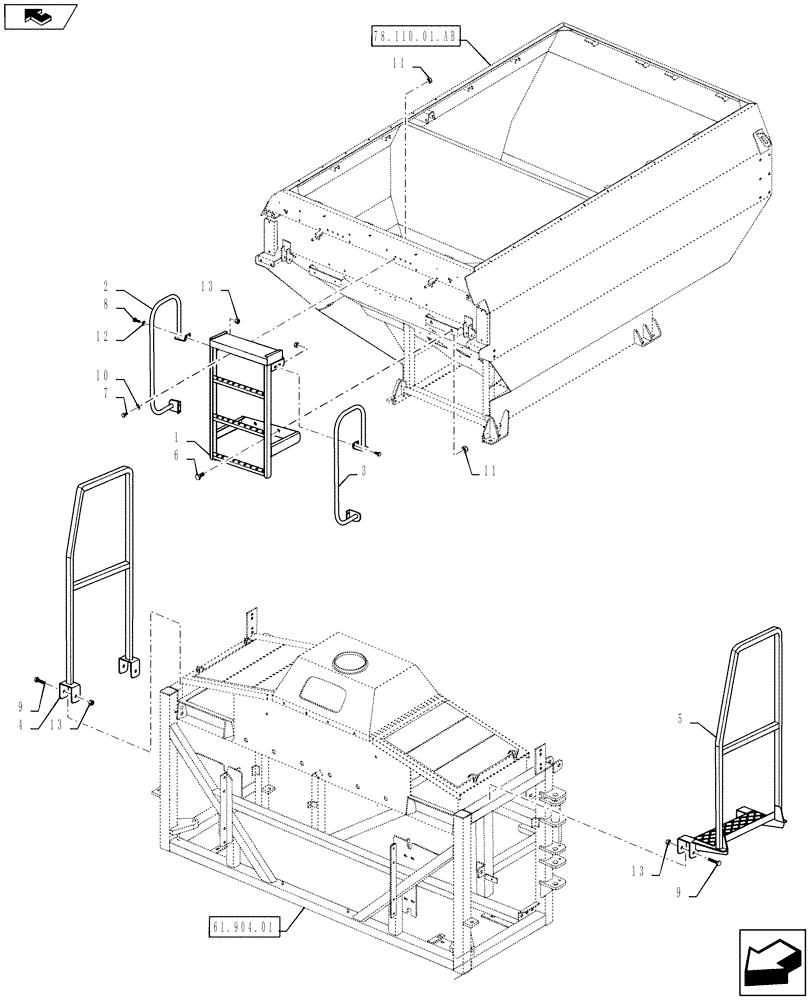

Схема запчастей Case IH 810 - (78.110.06.AA) - SINGLE BIN LADDER (78) - SPRAYING
4
61.904.01
7
8
9
6
13
12
5
11
10
13
2
78.110.01.ab
home
13
3
11
9
1

Артикул

Название

Примечание

Количество

1

87267597

LADDER

Single Bin

1шт.

2

BN313701

HANDRAIL

Single Bin, LH

1шт.

3

BN313702

HANDRAIL

Single Bin, RH

1шт.

4

87271434

HANDRAIL

RH

1шт.

5

87271435

HANDRAIL

LH

1шт.

6

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

7

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

8шт.

9

BN50242

BOLT,5/16"-18 X 3-1/4", Stainless Steel

4шт.

10

BN50146

WASHER,3/8", Stainless

2шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

12

BN50142

WASHER,5/16", Stainless Steel

8шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

12шт.

Выбрано товаров: 13
