Запчасти Case IH 810 (78.110.05.AB) - MID RATE CO-AP WHEELS (78) - SPRAYING

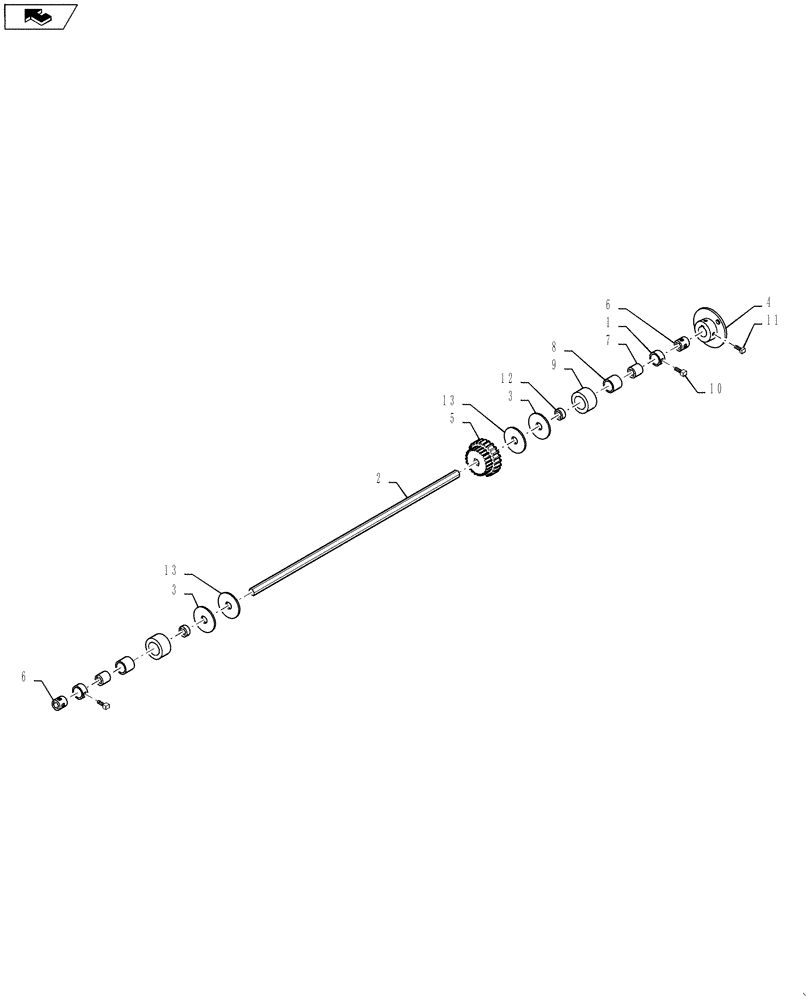

Схема запчастей Case IH 810 - (78.110.05.AB) - MID RATE CO-AP WHEELS (78) - SPRAYING
10
8
5
7
12
1
13
2
13
6
4
home
9
3
3
11
6

Артикул

Название

Примечание

Количество

0

BN65615

WHEEL ASSY

CO-AP, Mid Rate

1шт.

1

BN10054

COLLAR

1-1/4" OD x 3/4" ID, HRST

4шт.

2

BN15362

BAR

Hex, 5/8" x 29.5"

2шт.

3

BN15969

WASHER

Plastic, Co-Ap Wheel

4шт.

4

BN21398A

COUPLING

Machined

2шт.

5

BN23215

WHEEL

Metering, Mid-Rate, Red

36шт.

6

BN23106

JOURNAL

Steel

4шт.

7

BN23240

JOURNAL

Nylatron

4шт.

8

BN35909

BUSHING,25.58mm ID x 31.75mm OD x 28.45mm L

Inside, Quick Change

4шт.

9

BN35910

BUSHING,31.6mm ID x 51.94mm OD x 28.45mm L

Outside, Quick Change

4шт.

10

BN50421

SET SCREW

5/16"-18 X 1/2"

4шт.

11

BN50399

BOLT

5/16-18 X 1

4шт.

12

BN65658

BUSHING

1.0 OD x .62 Hex, .50

4шт.

13

BN309412

WASHER,3/4, Stainless Steel

8шт.

Выбрано товаров: 14
