Запчасти Case IH 810 (78.110.04.AA) - 6" AUGER, DOUBLE & TRIPLE BIN (78) - SPRAYING

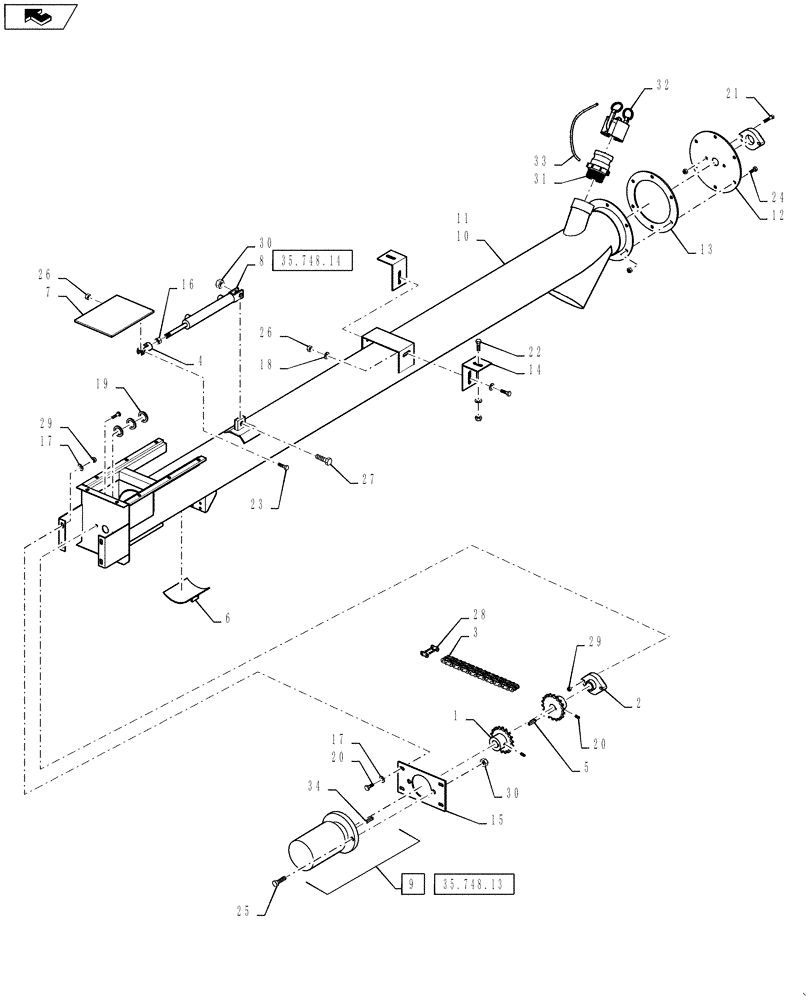

Схема запчастей Case IH 810 - (78.110.04.AA) - 6" AUGER, DOUBLE & TRIPLE BIN (78) - SPRAYING
21
6
23
18
22
26
30
33
29
10
20
29
17
31
9
27
7
8
12
4
35.748.13
35.748.14
24
16
34
30
3
home
14
28
15
11
17
25
26
32
5
1
2
13
19
20

Артикул

Название

Примечание

Количество

1

BN10181

SPROCKET

18 Teeth, With 1" Bore

2шт.

2

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

2шт.

3

BN53134

CHAIN

Bulk, #50-2 Double Roller, Cut To Length Of 18 Links

1шт.

4

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

5

Q26

KEY,1/4" Sq x 1 1/4", Par

1шт.

6

BN304623

DOOR

Cleanout, 6" Auger

1шт.

7

BN304625

PLATE

Gate, 6" Auger

1шт.

8

87266443

HYDRAULIC CYLINDER,12.7mm Rod, 152.4mm Stroke

6" Auger Gate, 1 x 6 x 0.5

1шт.

See Fig 35.748.14 For Service Parts

1шт.

9

BN306232

MOTOR

Hydraulic, 6" Auger, Includes Key Ref 34

1шт.

See Fig 35.748.13 For Service Parts

1шт.

10

BN321067

AUGER

Tube, 6"

1шт.

11

87528879

AUGER

6"

1шт.

12

BN308063

PLATE

6" Auger, Upper

1шт.

13

BN308067

GASKET

6" Auger, Upper

1шт.

14

BN309460

ANGLE

Bracket, 6" Auger Mount

2шт.

15

BN35935

PLATE

6" Auger Motor Mount

1шт.

16

BN50075

NUT

1/2"-20, Stainless Steel

1шт.

17

BN50142

WASHER,5/16", Stainless Steel

16шт.

18

BN50146

WASHER,3/8", Stainless

6шт.

19

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

1" ID X 1.5 OD X 10 GA

3шт.

20

80442

SET SCREW,5/16" - 18 x 1/2"

5/16"-18 x 3/8"

4шт.

21

BN50237

BOLT,5/16"-18 X 1-1/2", Stainless Steel

4шт.

22

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

23

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

24

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

6шт.

25

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

26

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

5шт.

27

BN50786

BOLT,1/2"-13 x 2", Stainless

1шт.

28

BN53159

LINK

Connecting, 50-2 Double Strand Roller Chain

1шт.

29

BN55361

NUT,5/16"-18, Nylon, Stainless

22шт.

30

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

3шт.

31

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

2" Cam x 2" MPT, Poly

1шт.

32

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever, Poly

1шт.

33

BN321087

STRAP

Lanyard, 11" Poly

1шт.

34

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

Выбрано товаров: 36
