(78.110.03.EH) - TRIPLE BIN, SUPPLEMENTAL ASSEMBLY, RH, 37 CUBIC FOOT

Запчасти Case IH 810 (78.110.03.EH) - TRIPLE BIN, SUPPLEMENTAL ASSEMBLY, RH, 37 CUBIC FOOT (78) - SPRAYING

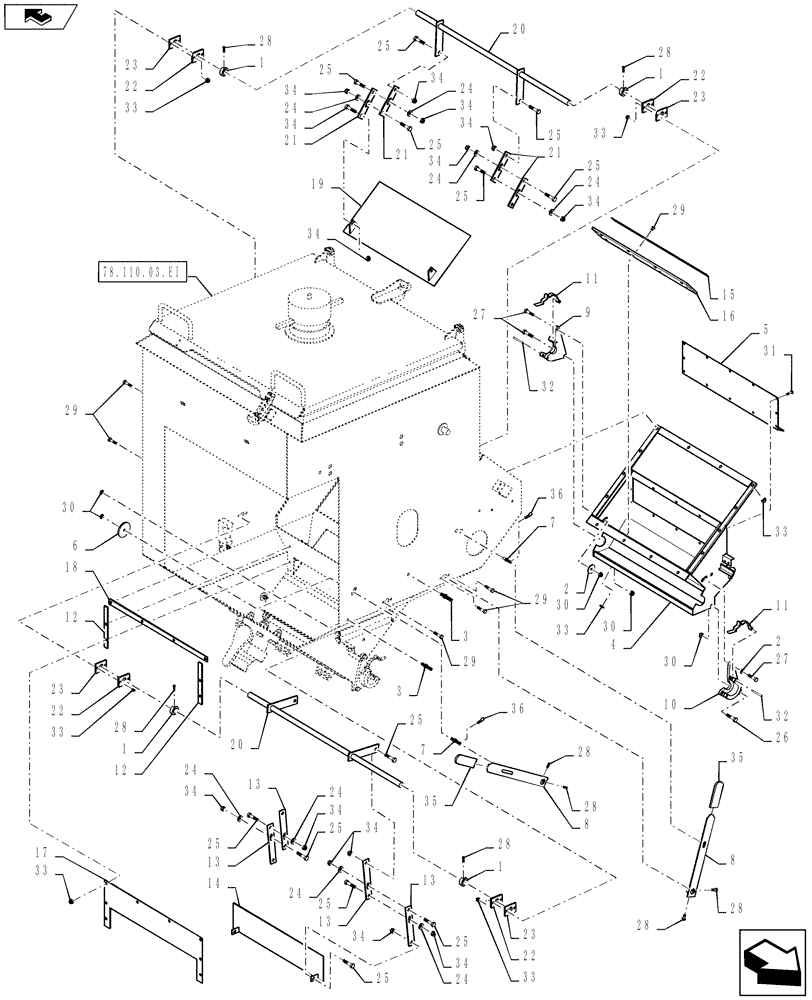

Схема запчастей Case IH 810 - (78.110.03.EH) - TRIPLE BIN, SUPPLEMENTAL ASSEMBLY, RH, 37 CUBIC FOOT (78) - SPRAYING
29
24
33
1
78.110.03.ei
29
36
28
20
10
13
30
2
6
28
8
34
30
15
28
13
36
33
13
24
25
3
22
34
11
1
1
33
24
35
5
17
home
34
31
23
30
19
23
28
34
9
25
22
18
12
30
25
21
32
16
34
33
25
28
22
25
28
35
24
34
32
26
25
28
3
27
11
34
21
4
22
7
12
13
33
23
25
34
25
14
34
34
2
8
24
25
34
23
21
33
28
7
1
25
34
33
24
24
29
27
25
24
25
34
20
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN10054

COLLAR

1-1/4" OD x 3/4" ID, HRST

4шт.

2

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

3

BN307047

PIN

3/8, With Shoulder

2шт.

4

BN308142

BRACKET, SUPPORTING

Supplemental

1шт.

5

BN309317

PANEL

Supplemental Access

1шт.

6

BN310862

WASHER

Co-Ap Bin

2шт.

7

BN310283

PIN

3/8, With 3/4 Shoulder

2шт.

8

BN35411

HANDLE

Bin Gate Adjust

2шт.

9

BN35705

BEARING HOUSING

Co-Ap Wheel Housing, LH

1шт.

10

BN35706

BEARING HOUSING

Co-Ap Wheel Housing, RH

1шт.

11

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

2шт.

12

BN35785

SLIDE

Vertical, Co-Ap Gate

2шт.

13

BN35786

LINK

Co-Ap Bin Gate

4шт.

14

BN35787

GATE ASSY

Co-Ap Bin

1шт.

15

BN35788

SEAL

Co-Ap Gates

2шт.

16

BN35789

SEAL

Co-Ap Gates

1шт.

17

BN35790

COVER

Co-Ap Bin Gate

1шт.

18

BN35791

SLIDE

Horizontal, Co-Ap Gate

1шт.

19

BN35793

GATE ASSY

Supplemental Bin

1шт.

20

BN35796

SHAFT

Supplemental Gate

2шт.

21

BN35799

LINKAGE

Supplemental Gate

4шт.

22

BN35800

BUSHING

Shaft, Supplemental Gate

4шт.

23

BN35801

SEAL

Shaft, Supplemental Gate

4шт.

24

BN50142

WASHER,5/16", Stainless Steel

8шт.

25

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

16шт.

26

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

27

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

28

BN50421

SET SCREW

5/16"-18 X 1/2"

8шт.

29

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

34шт.

30

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

31

87343659

SELF-TAP SCREW,Hex Wshr, 1/4" - 20 x 3/4"

Tapping, 1/4"-20 x 3/4"

12шт.

32

84204175

SLOTTED PIN

5/32 X 1-1/2, SS

4шт.

33

BN55359

LOCK NUT,1/4"-20, SS

34шт.

34

BN55361

NUT,5/16"-18, Nylon, Stainless

16шт.

35

BN65711

CAP

Lever, 1.25 X .162 X 4.00

2шт.

36

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

2шт.
