Запчасти Case IH 810 (78.110.03.EA) - TRIPLE BIN MOUNTING, WITH AUGER, 37 CUBIC FOOT (78) - SPRAYING

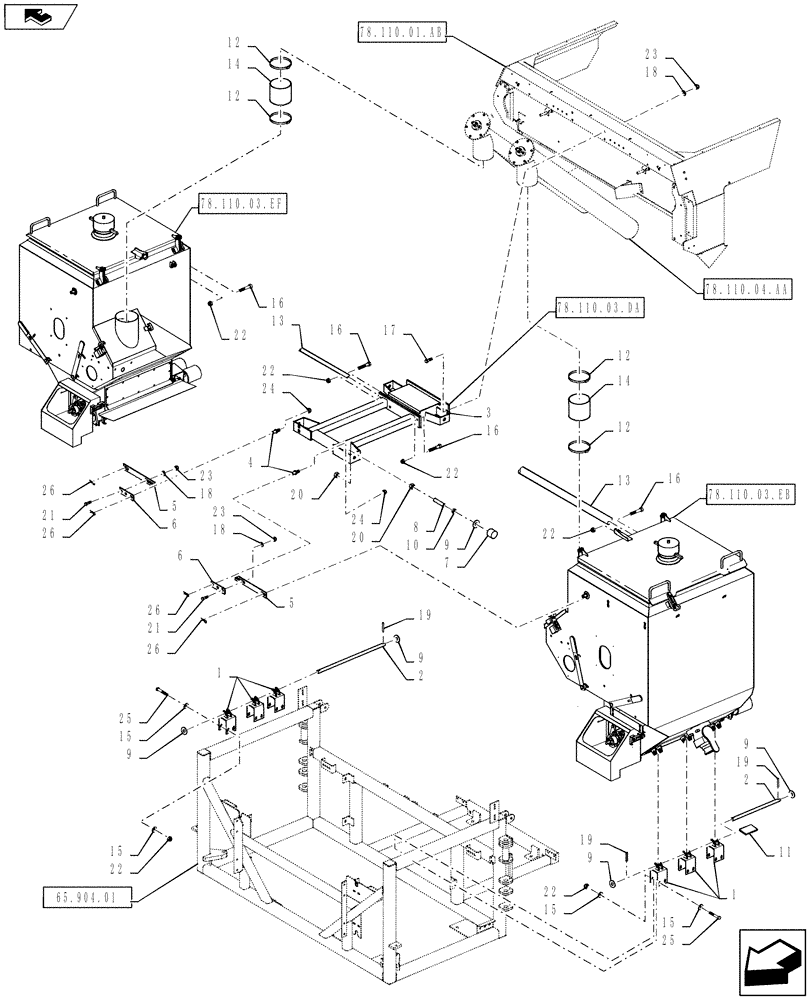

Схема запчастей Case IH 810 - (78.110.03.EA) - TRIPLE BIN MOUNTING, WITH AUGER, 37 CUBIC FOOT (78) - SPRAYING
7
25
home
16
13
16
21
11
26
19
23
9
15
1
5
12
20
19
5
2
18
2
78.110.04.aa
6
18
26
78.110.01.ab
24
1
9
12
14
78.110.03.da
26
26
15
14
9
22
8
22
9
15
13
65.904.01
16
22
78.110.03.ef
18
6
23
3
21
9
19
22
15
20
4
10
23
12
16
25
22
22
24
17
12
78.110.03.eb

Артикул

Название

Примечание

Количество

1

86986160

HINGE

Co-Ap Bin

6шт.

2

BN306380

HINGE

3/4" rod, Co-Ap

2шт.

3

84185176

BRACKET

Center Co-Ap Support

1шт.

See Fig 78.110.03.DA For Service Parts

1шт.

4

BN309338

PIN

5/8" With Shoulder

2шт.

5

BN309339

BAR

Latch, Long

2шт.

6

BN309340

BAR

Latch, Short

2шт.

7

BN309409

BUMPER

2" DIA x 1-5/8", Neoprene

4шт.

8

BN309410

THREADED ROD

3/4-10, Threaded Rod

4шт.

9

BN309412

WASHER,3/4, Stainless Steel

8шт.

10

BN309413

SCREW,3/4" - 10, SST

3/4-10, HJN, SS

4шт.

11

84350652

SPACER

Co-ap Bin Lift, Use As Necessary

3шт.

12

BN85064

HOSE CLAMP

6"

4шт.

13

BN310661

CABLE

Co-Ap Bin Tip

2шт.

14

BN310662

HOSE,6.00" ID x 6.00"

Co-Ap Bin

2шт.

15

BN50146

WASHER,3/8", Stainless

24шт.

16

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

17

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

18

BN50595

WASHER,1/2", Stainless

8шт.

19

BN50600

COTTER PIN

3/16" X 1-1/2"

4шт.

20

BN50661

NUT,3/4"-10, Stainless Steel

8шт.

21

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

22

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

23

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

8шт.

24

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

2шт.

25

BN55373

BOLT,3/8"-16 X 3-1/2", Stainless Steel

12шт.

26

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

4шт.

Выбрано товаров: 27
