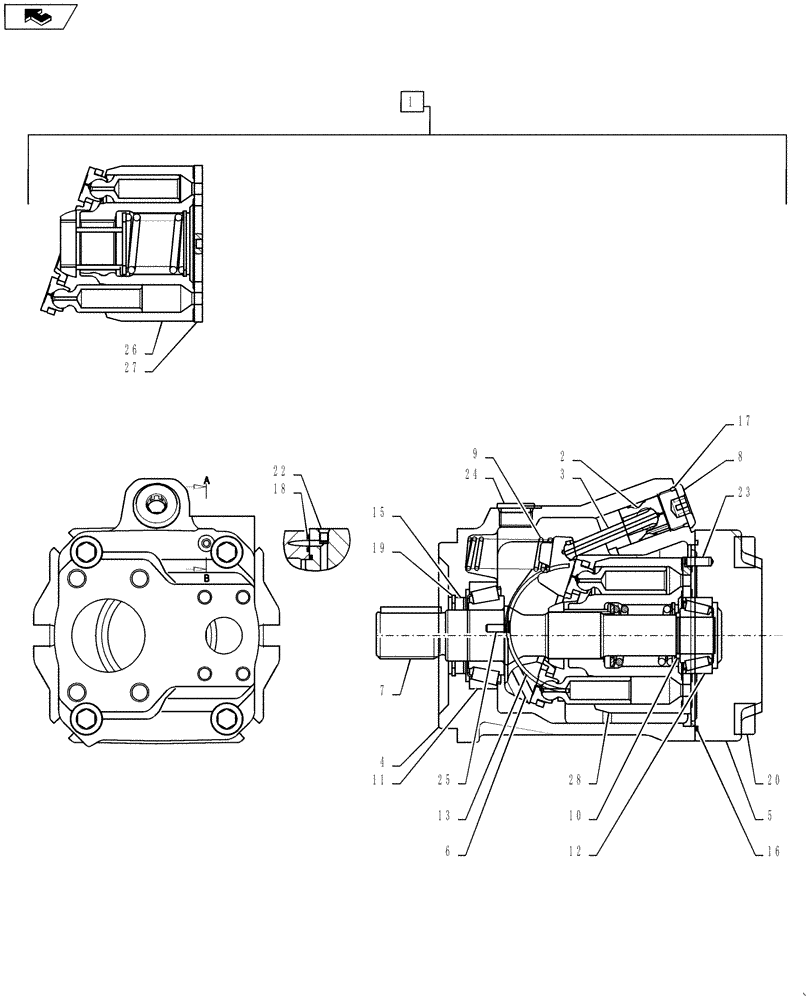

Запчасти Case IH 810 (35.220.04) - PRESSURE COMPENSATED PUMP, 60CC (35) - HYDRAULIC SYSTEMS

1

86986504

PUMP

60CC, Pressure Compensated, Variable Displacement Axial Piston, Includes Ref 2 - 28

1шт.

2

87269704

PISTON

Control

1шт.

3

87269705

PISTON ROD

45/50X

1шт.

4

87269706

PUMP

Housing

1шт.

5

87269707

PLATE

Port Plate

1шт.

6

87269708

PLATE

Swash Plate

1шт.

7

87269709

SHAFT

Drive

1шт.

8

87269710

PLUG

Threaded

1шт.

9

87269711

SPRING

1шт.

10

87269712

SHIM

1шт.

11

87269713

TAPERED BEARING

1шт.

12

87269714

TAPERED BEARING

1шт.

13

87269715

CRADLE

Shell RH

1шт.

14

87269716

CRADLE

Shell LH, Not Shown

1шт.

15

87269717

SEAL

Shaft

1шт.

16

87269718

O-RING,2.5mm Thk x 125mm ID

1шт.

17

87269719

O-RING,23.7MM ID x 2.8MM Width

1шт.

18

87269720

O-RING

1шт.

19

87269721

LOCKING RING

Safety

1шт.

20

87269722

SCREW,Skt, M14

Socket, M14 x 45

1шт.

21

87269723

LOCKING RING

Stop, Not Shown

1шт.

22

87269724

STOP

Plug

1шт.

23

87269725

DOWEL

PI6 M6 x 18

1шт.

24

87269726

PLUG

N 02.106-7/8 UNF 2A

1шт.

25

87269727

SCREW,CSK, M5 x 16mm

Countersunk, M5 X 16

1шт.

26

87269728

FIP KIT

Rotary Group

1шт.

27

87269729

PLATE

Distributor

1шт.

28

87268471

PIVOT PLATE

Rotary

1шт.
