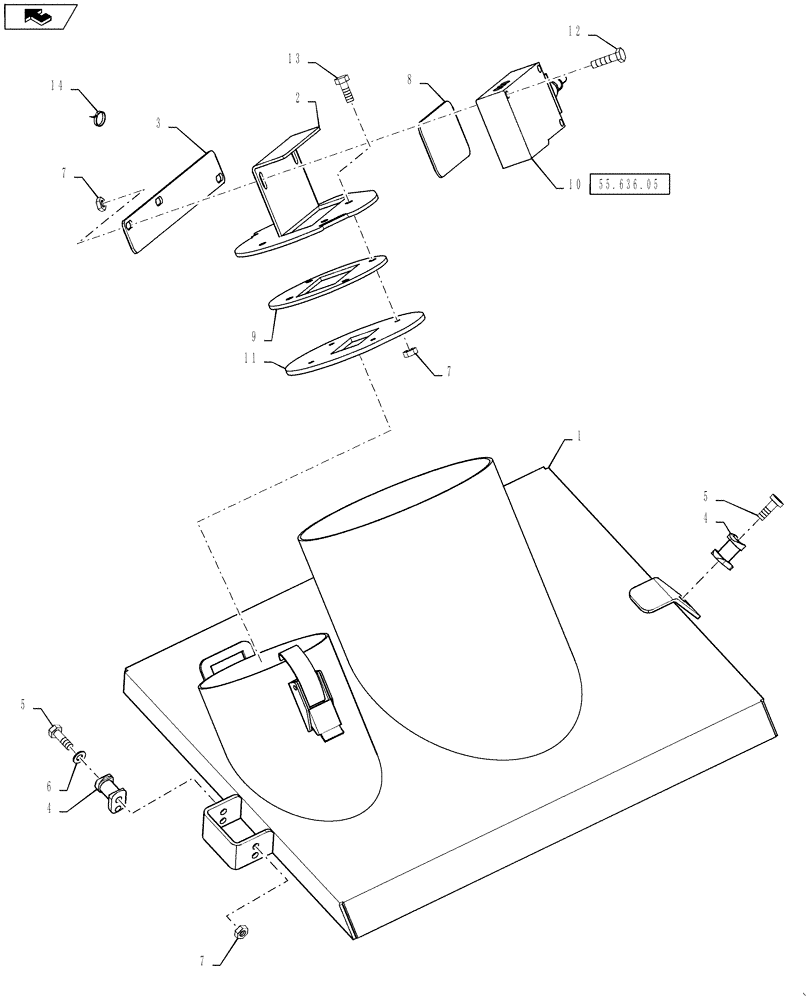

Запчасти Case IH 810 (78.110.03.CG) - COVER ASSEMBLY, RH BIN, WITH AUGER (78) - SPRAYING

1

86986413

COVER

RH Bin

1шт.

2

86986111

CAP

Cap, RH Mount

1шт.

3

87675156

MOUNT

Cable

1шт.

4

BN309337

LATCH

Flexible Draw

2шт.

5

BN316803

SCREW,#10 - 24 x 1 1/2", SST

#10-24 x 1.5, Stainless Steel

2шт.

6

BN310265

WASHER

10, Stainless Steel

2шт.

7

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

8

BN321167

GASKET

Sensor Cushion

1шт.

9

86986115

RUBBER SLEEVE

Sensor

1шт.

10

BN322583

SENSOR

Supplemental Bin Level

1шт.

See Fig 55.636.05 For Service Parts

1шт.

11

86986114

PLATE

Retainer

1шт.

12

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

2шт.

13

BN2407985

SCREW,Hex, #10 - 24 x 3/4"

10-24 x 3/4", HH, SST

4шт.

14

BN570007

STRAP

Black, 14-1/2" Long

1шт.
