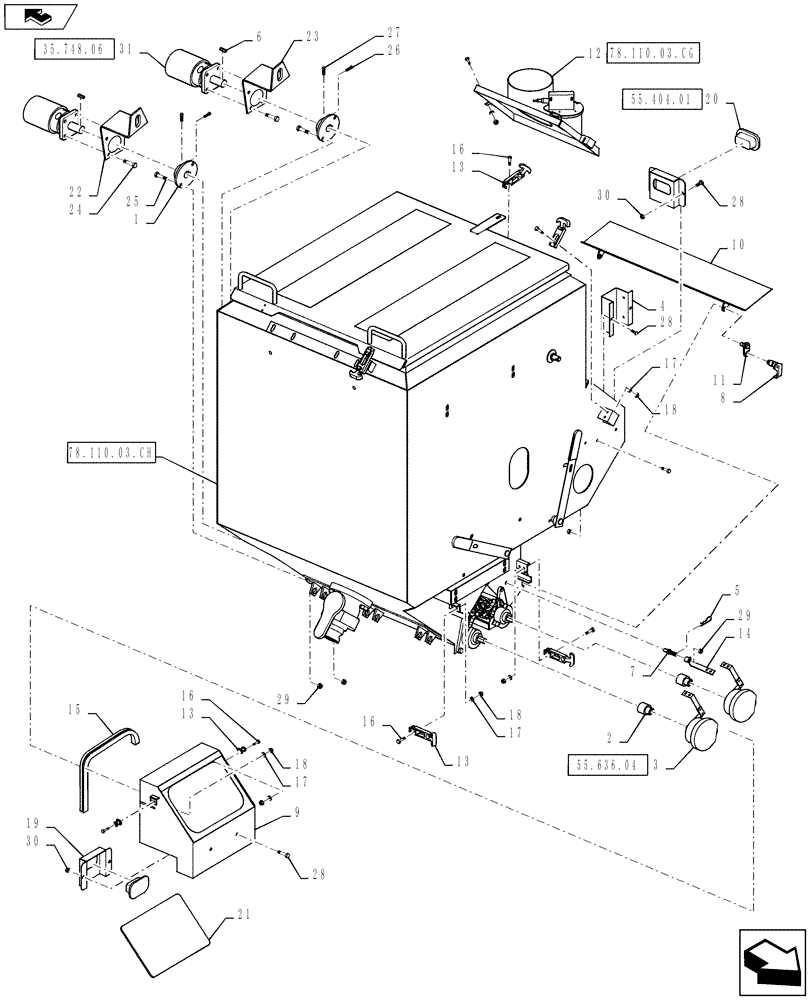

Запчасти Case IH 810 (78.110.03.CF) - TRIPLE BIN, RH, WITH AUGER, 50 CUBIC FEET (78) - SPRAYING

1

BN21398A

COUPLING

Machined

2шт.

2

BN22884

KIT

Adaptor

2шт.

3

BN314948

SENSOR

Application Rate

2шт.

See Fig 55.636.04 For Service Parts

1шт.

4

86986421

BRACKET

Sensor Control

1шт.

5

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

2шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

BN307047

PIN

3/8, With Shoulder

2шт.

8

342478A1

LATCH

Swell

2шт.

9

BN308143

COVER

Wind, RH

1шт.

10

BN308146

COVER

Lower Co-Ap

1шт.

11

BN308147

PIN

Lower Co-Ap Cover Pivot

2шт.

12

86986418

COVER

RH Bin Auger

1шт.

See Fig 78.110.03.CG For Service Parts

1шт.

13

BN309337

LATCH

Flexible Draw

2шт.

14

BN312519

BRACKET

Bracket, Rate

2шт.

15

BN67438

SEAL

Weather Strip, Wind Cover

1шт.

16

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

10шт.

17

BN310265

WASHER

10, Stainless Steel

10шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

10шт.

19

BN310644

MOUNTING PLATE

Bin Lights

2шт.

20

BN310648

LIGHT

Co-Ap Bin

2шт.

See Fig 55.404.01 For Service Parts

1шт.

21

87265980

WINDOW

Hopper 12" x 8"

1шт.

22

BN35938

ARM

Torque, RH Co-Ap

1шт.

23

BN35939

ARM

Torque, LH Co-Ap

1шт.

24

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

25

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

26

BN50421

SET SCREW

5/16"-18 X 1/2"

2шт.

27

BN50473

SET SCREW

5/16"-18 X 3/4"

2шт.

28

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

29

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

30

BN55359

LOCK NUT,1/4"-20, SS

6шт.

31

BN65718

HYDRAULIC MOTOR

Co-Ap Bin

2шт.

See Fig 35.748.06 For Service Parts

1шт.
