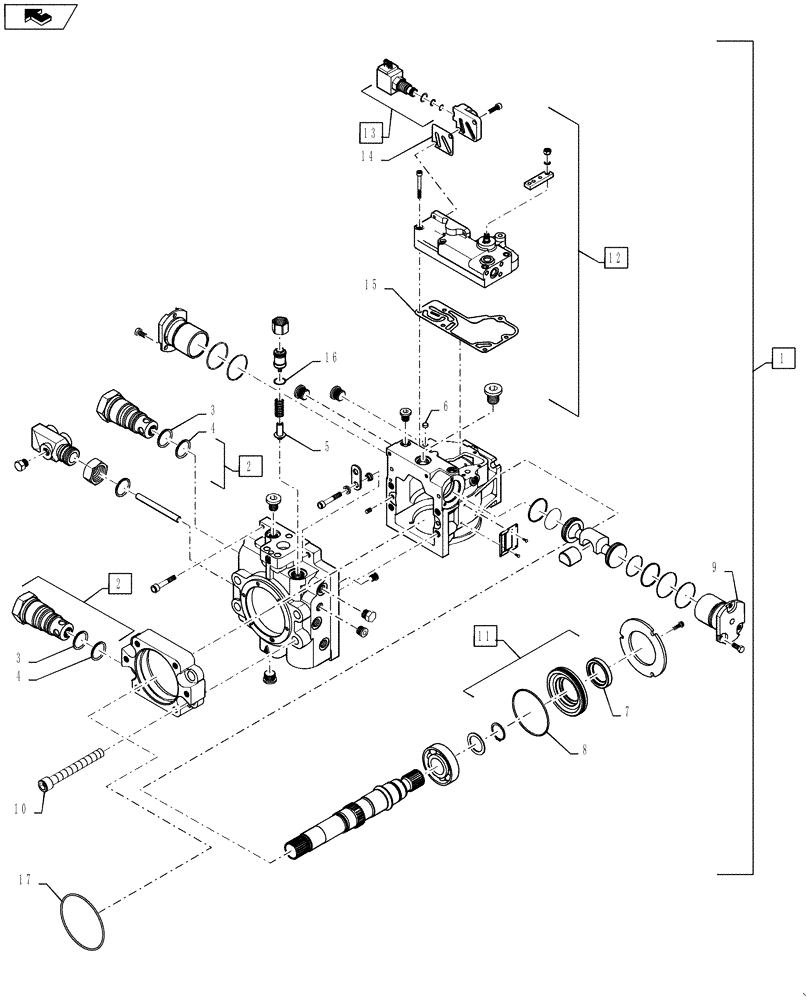

Запчасти Case IH 810 (35.220.03) - HYDROSTATIC PUMP, 75CC, 90 SERIES, 810 DRIVE (35) - HYDRAULIC SYSTEMS

1

BN309564

PUMP

75CC Hydrostat, 90 Series, 810 Drive, Includes Ref 2 - 16

1шт.

2

BN65540

VALVE

Multi-Function 90 Series, Includes Ref 3 and 4

2шт.

3

BN65541

O-RING

Multi-Function Valve Upper

2шт.

4

BN65542

O-RING

Multi-Function Valve Lower

2шт.

5

BN313402

POPPET

Charge Relief

1шт.

6

BN313403

SCREEN

Control Filter

2шт.

7

BN65546

SEAL

Lip, Shaft 75 CC

1шт.

8

BN313405

O-RING

1шт.

9

87271997

FIP KIT

Displacement Limiter

1шт.

10

87267720

BOLT

M16 X 140, SHCS, 10.9

4шт.

11

87272008

SEAL

Shaft, Includes Ref 7 and 8

1шт.

12

BN306567

CONTROL

MDC Control, 12V, On/Off, Includes Ref 13 - 15

1шт.

13

BN306569

SOLENOID VALVE

On/Off

1шт.

14

BN306570

GASKET

Manifold

1шт.

15

BN307684

O-RING

Control Body

1шт.

16

BN313401

O-RING

1шт.

17

70934882

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

.103 X 4.737 158 7, Used Between Hydrostatic Pump And Pressure Compensated Pump, Not Included With Pump

1шт.
