Запчасти Case IH 810 (78.110.03.BF) - DOUBLE BIN, RH, WITH AUGER, 50 CUBIC FEET (78) - SPRAYING

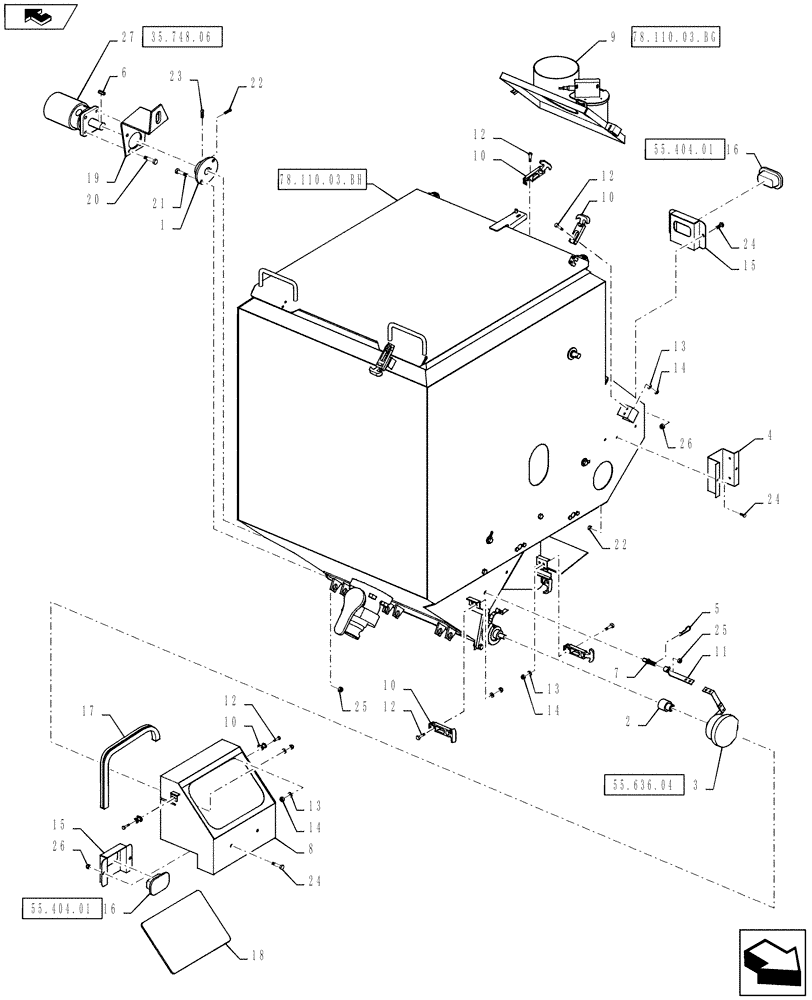

Схема запчастей Case IH 810 - (78.110.03.BF) - DOUBLE BIN, RH, WITH AUGER, 50 CUBIC FEET (78) - SPRAYING
10
27
24
13
24
12
1
6
22
14
12
17
8
25
10
3
26
home
9
23
16
15
10
13
21
5
4
22
24
35.748.06
55.404.01
55.636.04
55.404.01
18
13
26
78.110.03.bh
78.110.03.bg
2
25
19
16
10
14
12
14
12
20
11
7
15

Артикул

Название

Примечание

Количество

1

BN21398A

COUPLING

Machined

1шт.

2

BN22884

KIT

Adaptor

1шт.

3

BN314948

SENSOR

Application Rate

1шт.

See Fig 55.636.04 For Service Parts

1шт.

4

86986421

BRACKET

Sensor Control

1шт.

5

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

7

BN307047

PIN

3/8, With Shoulder

1шт.

8

BN308143

COVER

Wind, RH

1шт.

9

86986418

COVER

RH Bin Auger

1шт.

See Fig 78.110.03.BG For Service Parts

1шт.

10

BN309337

LATCH

Flexible Draw

2шт.

11

BN312519

BRACKET

Bracket, Rate

1шт.

12

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

10шт.

13

BN310265

WASHER

10, Stainless Steel

10шт.

14

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

10шт.

15

BN310644

MOUNTING PLATE

Bin Lights

2шт.

16

BN310648

LIGHT

Co-Ap Bin

2шт.

See Fig 55.404.01 For Service Parts

1шт.

17

BN67438

SEAL

Weather Strip, Wind Cover

1шт.

18

87265980

WINDOW

Hopper 12" x 8"

1шт.

19

BN35938

ARM

Torque, RH Co-Ap

1шт.

20

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

21

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

22

BN50421

SET SCREW

5/16"-18 X 1/2"

1шт.

23

BN50473

SET SCREW

5/16"-18 X 3/4"

1шт.

24

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

26

BN55359

LOCK NUT,1/4"-20, SS

6шт.

27

BN65718

HYDRAULIC MOTOR

Co-Ap Bin

1шт.

See Fig 35.748.06 For Service Parts

1шт.

Выбрано товаров: 31
