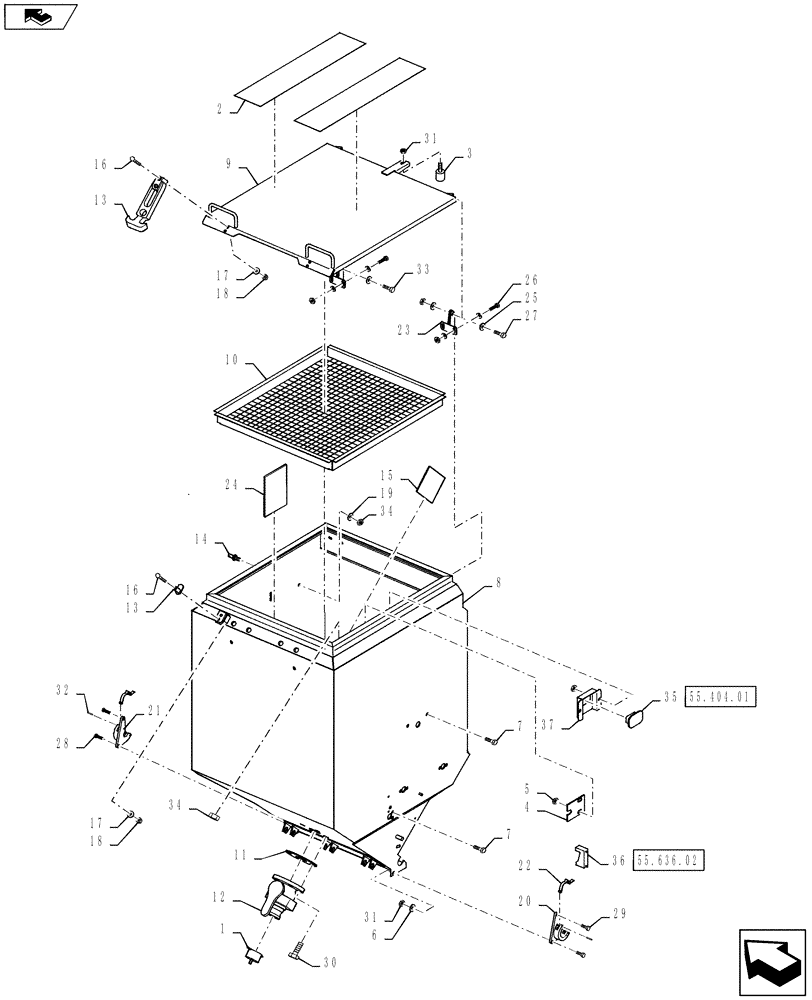

Запчасти Case IH 810 (78.110.03.BE) - DOUBLE BIN BREAKDOWN, LH, 50 CUBIC FEET (78) - SPRAYING

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN54054

TAPE

Safety Walk, 6" X 29"

2шт.

3

BN25232

BUMPER

1.56" Dia - Urethane

1шт.

4

BN319230

COVER

Wire, Hopper Sensor

1шт.

5

BN55359

LOCK NUT,1/4"-20, SS

4шт.

6

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

7

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

8

84486040

BOX

LH Co-Ap Bin, 50 Cubic Feet

1шт.

9

87265914

COVER

Co-Ap Bin, 50 Cubic Feet

1шт.

10

BN312897

SCREEN

Co-Ap Bin, 50 Cubic Feet

1шт.

11

BN309335

FLANGE,2" ANSI Flange EPDM Gasket

2" ANSI Flange, EPDM

1шт.

12

BN309336

VALVE,2" Full Port Valve Male Adapter x 2" ANSI Flange

2" Full Port, ANSI Flange

1шт.

13

BN309337

LATCH

Flexible Draw

1шт.

14

BN309338

PIN

5/8" With Shoulder

1шт.

15

87265979

WINDOW

5-1/2" x 5-1/2", Supplemental Bin

1шт.

16

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

3шт.

17

BN310265

WASHER

10, Stainless Steel

3шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

19

BN310267

WASHER,5/8", Stainless Steel

1шт.

20

BN35705

BEARING HOUSING

Co-Ap Wheel Housing, LH

1шт.

21

BN35706

BEARING HOUSING

Co-Ap Wheel Housing, RH

1шт.

22

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

2шт.

23

87266476

HINGE

Co-Ap Cover

2шт.

24

87265978

WINDOW

Co-Ap Bin

1шт.

25

BN50142

WASHER,5/16", Stainless Steel

13шт.

26

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

27

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

2шт.

28

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

29

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

30

BN50648

BOLT,5/8"-11 X 2.00", Stainless Steel

4шт.

31

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

32

84204175

SLOTTED PIN

5/32" X 1-1/2", Stainless Steel

4шт.

33

BN55361

NUT,5/16"-18, Nylon, Stainless

7шт.

34

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

5шт.

35

BN310648

LIGHT

Co-Ap Bin

1шт.

See Fig 55.404.01 For Service Parts

1шт.

36

BN319646

SENSOR

Bin Level

1шт.

See Fig 55.636.02 For Service Parts

1шт.

37

BN310644

MOUNTING PLATE

Bin Lights

1шт.
