Запчасти Case IH 810 (78.110.03.BB) - DOUBLE BIN, LH, WITH AUGER, 50 CUBIC FEET (78) - SPRAYING

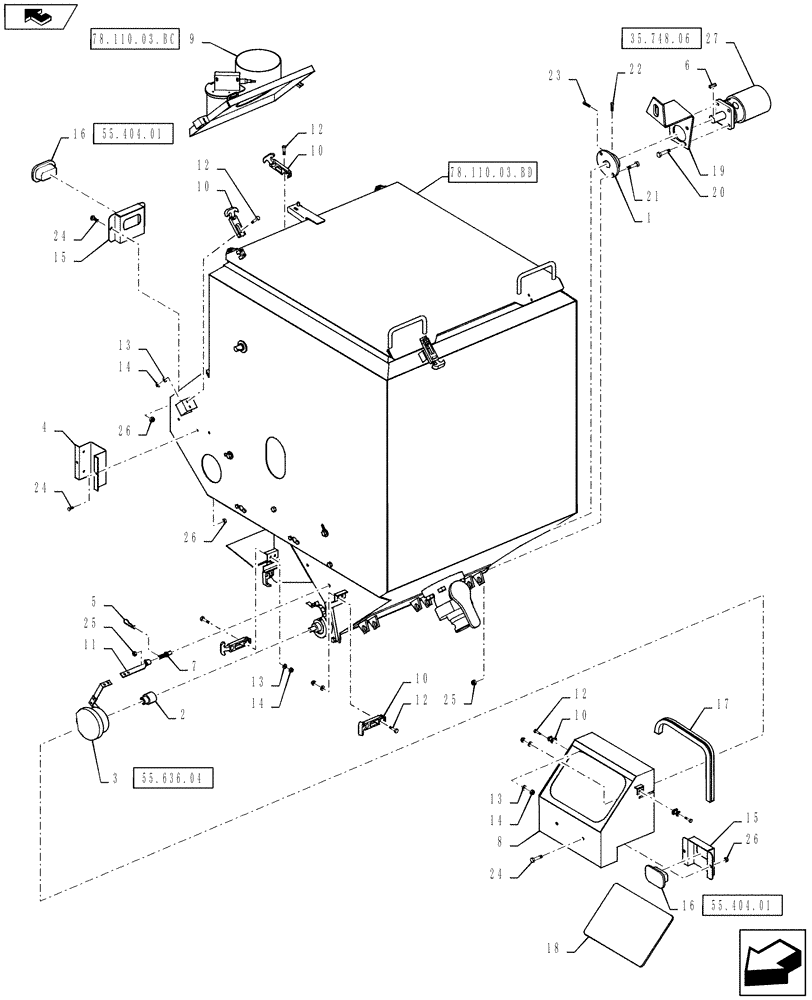

Схема запчастей Case IH 810 - (78.110.03.BB) - DOUBLE BIN, LH, WITH AUGER, 50 CUBIC FEET (78) - SPRAYING
23
home
13
6
18
12
26
24
15
10
78.110.03.bc
15
16
14
17
13
16
11
22
14
9
26
7
20
78.110.03.bd
55.404.01
5
12
27
26
25
2
12
19
35.748.06
55.404.01
1
10
21
14
25
13
8
4
55.636.04
24
12
10
3
10
24

Артикул

Название

Примечание

Количество

1

BN21398A

COUPLING

Machined

1шт.

2

BN22884

KIT

Adaptor

1шт.

3

BN314948

SENSOR

Application Rate

1шт.

See Fig 55.636.04 For Service Parts

1шт.

4

86986421

BRACKET

Sensor Control

1шт.

5

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

7

BN307047

PIN

3/8, With Shoulder

1шт.

8

BN308144

COVER

Wind, LH

1шт.

9

86986419

COVER

LH Bin Auger

1шт.

See Fig 78.110.03.BC For Service Parts

1шт.

10

BN309337

LATCH

Flexible Draw

2шт.

11

BN312519

BRACKET

Bracket, Rate

1шт.

12

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

10шт.

13

BN310265

WASHER

10, Stainless Steel

10шт.

14

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

10шт.

15

BN310644

MOUNTING PLATE

Bin Lights

2шт.

16

BN310648

LIGHT

Co-Ap Bin

2шт.

See Fig 55.404.01 For Service Parts

1шт.

17

BN67438

SEAL

Weather Strip, Wind Cover

1шт.

18

87265980

WINDOW

Hopper 12" x 8"

1шт.

19

BN35939

ARM

Torque, LH Co-Ap

1шт.

20

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

21

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

22

BN50421

SET SCREW

5/16"-18 X 1/2"

1шт.

23

BN50473

SET SCREW

5/16"-18 X 3/4"

1шт.

24

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

26

BN55359

LOCK NUT,1/4"-20, SS

6шт.

27

BN65718

HYDRAULIC MOTOR

Co-Ap Bin

1шт.

See Fig 35.748.06 For Service Parts

1шт.

Выбрано товаров: 31
