Запчасти Case IH 810 (78.110.03.AD) - DOUBLE BIN BREAKDOWN, LH, 50 CUBIC FEET (78) - SPRAYING

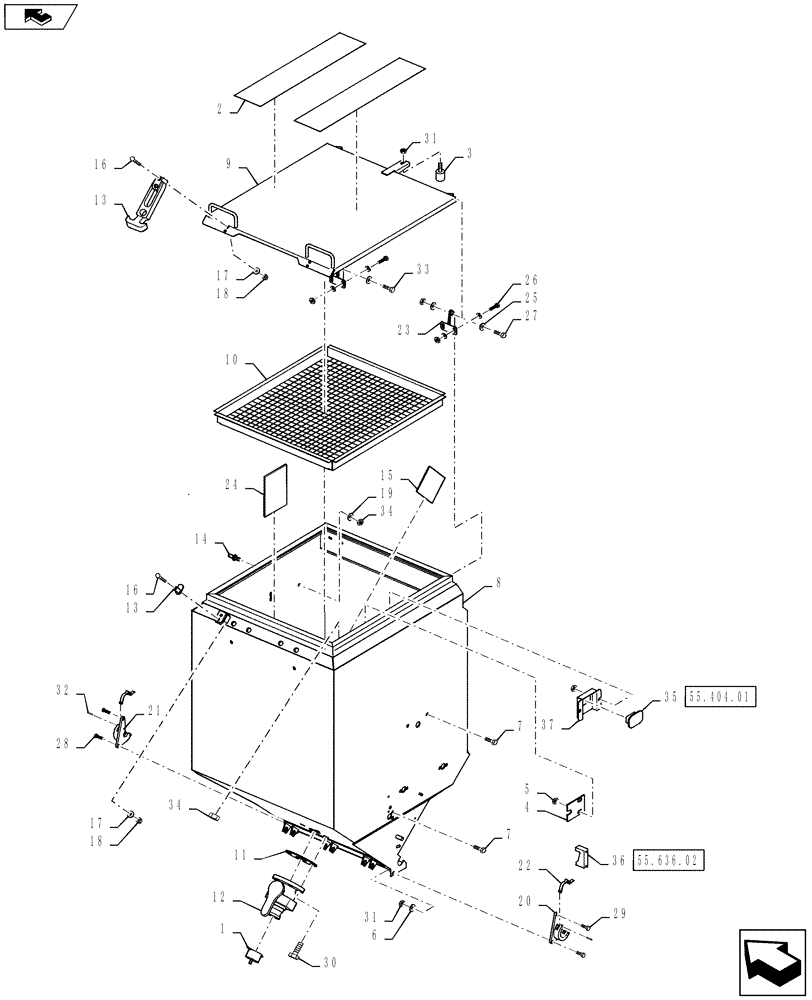

Схема запчастей Case IH 810 - (78.110.03.AD) - DOUBLE BIN BREAKDOWN, LH, 50 CUBIC FEET (78) - SPRAYING
2
29
34
22
11
home
31
36
25
3
6
13
28
35
34
13
32
18
33
21
27
7
1
15
20
7
9
8
16
26
24
5
30
14
10
17
17
19
37
31
16
18
12
23
4
55.636.02
55.404.01

Артикул

Название

Примечание

Количество

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN54054

TAPE

Safety Walk, 6" X 29"

2шт.

3

BN25232

BUMPER

1.56" Dia - Urethane

1шт.

4

BN319230

COVER

Wire, Hopper Sensor

1шт.

5

BN55359

LOCK NUT,1/4"-20, SS

4шт.

6

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

7

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

8

84486040

BOX

LH Co-Ap Bin, 50 Cubic Feet

1шт.

9

87265914

COVER

Co-Ap Bin, 50 Cubic Feet

1шт.

10

BN312897

SCREEN

Co-Ap Bin, 50 Cubic Feet

1шт.

11

BN309335

FLANGE,2" ANSI Flange EPDM Gasket

2" ANSI Flange, EPDM

1шт.

12

BN309336

VALVE,2" Full Port Valve Male Adapter x 2" ANSI Flange

2" Full Port, ANSI Flange

1шт.

13

BN309337

LATCH

Flexible Draw

1шт.

14

BN309338

PIN

5/8" With Shoulder

1шт.

15

87265979

WINDOW

5-1/2" x 5-1/2", Supplemental Bin

1шт.

16

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

3шт.

17

BN310265

WASHER

10, Stainless Steel

3шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

19

BN310267

WASHER,5/8", Stainless Steel

1шт.

20

BN35705

BEARING HOUSING

Co-Ap Wheel Housing, LH

1шт.

21

BN35706

BEARING HOUSING

Co-Ap Wheel Housing, RH

1шт.

22

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

2шт.

23

87266476

HINGE

Co-Ap Cover

2шт.

24

87265978

WINDOW

Co-Ap Bin

1шт.

25

BN50142

WASHER,5/16", Stainless Steel

13шт.

26

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

27

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

2шт.

28

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

29

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

30

BN50648

BOLT,5/8"-11 X 2.00", Stainless Steel

4шт.

31

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

32

84204175

SLOTTED PIN

5/32" X 1-1/2", Stainless Steel

4шт.

33

BN55361

NUT,5/16"-18, Nylon, Stainless

7шт.

34

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

5шт.

35

BN310648

LIGHT

Co-Ap Bin

1шт.

See Fig 55.404.01 For Service Parts

1шт.

36

BN319646

SENSOR

Bin Level

1шт.

See Fig 55.636.02 For Service Parts

1шт.

37

BN310644

MOUNTING PLATE

Bin Lights

1шт.

Выбрано товаров: 39
