Запчасти Case IH 810 (78.110.03.AB) - DOUBLE BIN, LH, WITHOUT AUGER, 50 CUBIC FEET (78) - SPRAYING

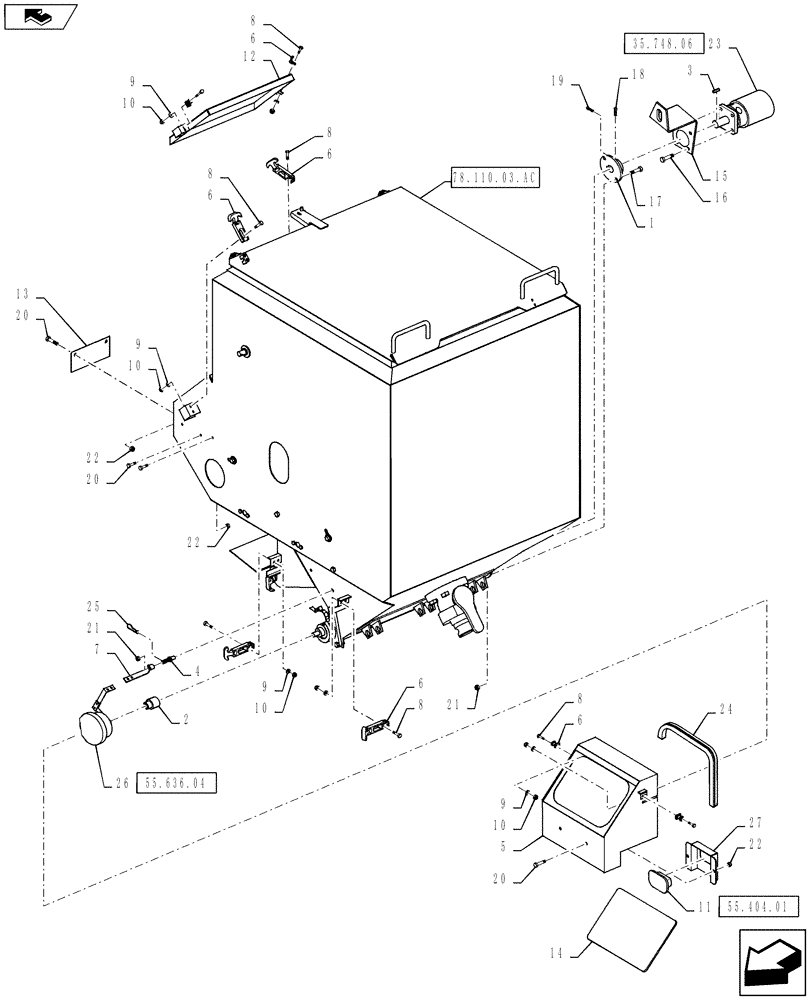

Схема запчастей Case IH 810 - (78.110.03.AB) - DOUBLE BIN, LH, WITHOUT AUGER, 50 CUBIC FEET (78) - SPRAYING
78.110.03.ac
9
11
55.636.04
home
55.404.01
26
23
10
9
8
16
9
24
20
21
4
9
6
5
13
19
6
14
21
22
27
22
20
10
8
2
10
7
6
6
22
15
25
8
6
17
3
8
8
10
35.748.06
20
12
1
18

Артикул

Название

Примечание

Количество

1

BN21398A

COUPLING

Machined

1шт.

2

BN22884

KIT

Adaptor

1шт.

3

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

4

BN307047

PIN

3/8, With Shoulder

1шт.

5

BN308144

COVER

Wind, LH

1шт.

6

BN309337

LATCH

Flexible Draw

4шт.

7

BN312519

BRACKET

Bracket, Rate

1шт.

8

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

12шт.

9

BN310265

WASHER

10, Stainless Steel

12шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

12шт.

11

BN310648

LIGHT

Co-Ap Bin

1шт.

See Fig 55.404.01 For Service Parts

1шт.

12

BN310845

COVER

Double Bin Without Auger, LH

1шт.

13

86986590

COVER

Wire Hole

1шт.

14

87265980

WINDOW

Hopper 12" x 8"

1шт.

15

BN35939

ARM

Torque, LH Co-Ap

1шт.

16

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

17

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

18

BN50421

SET SCREW

5/16"-18 X 1/2"

1шт.

19

BN50473

SET SCREW

5/16"-18 X 3/4"

1шт.

20

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

21

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

22

BN55359

LOCK NUT,1/4"-20, SS

6шт.

23

BN65718

HYDRAULIC MOTOR

Co-Ap Bin

1шт.

See Fig 35.748.06 For Service Parts

1шт.

24

BN67438

SEAL

Weather Strip, Wind Cover

1шт.

25

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

26

BN314948

SENSOR

Application Rate

1шт.

See Fig 55.636.04 For Service Parts

1шт.

27

BN310644

MOUNTING PLATE

Bin Lights

1шт.

Выбрано товаров: 30
