Запчасти Case IH 810 (78.110.03.AA) - DOUBLE BIN MOUNTING, WITHOUT AUGER, 50 CUBIC FEET (78) - SPRAYING

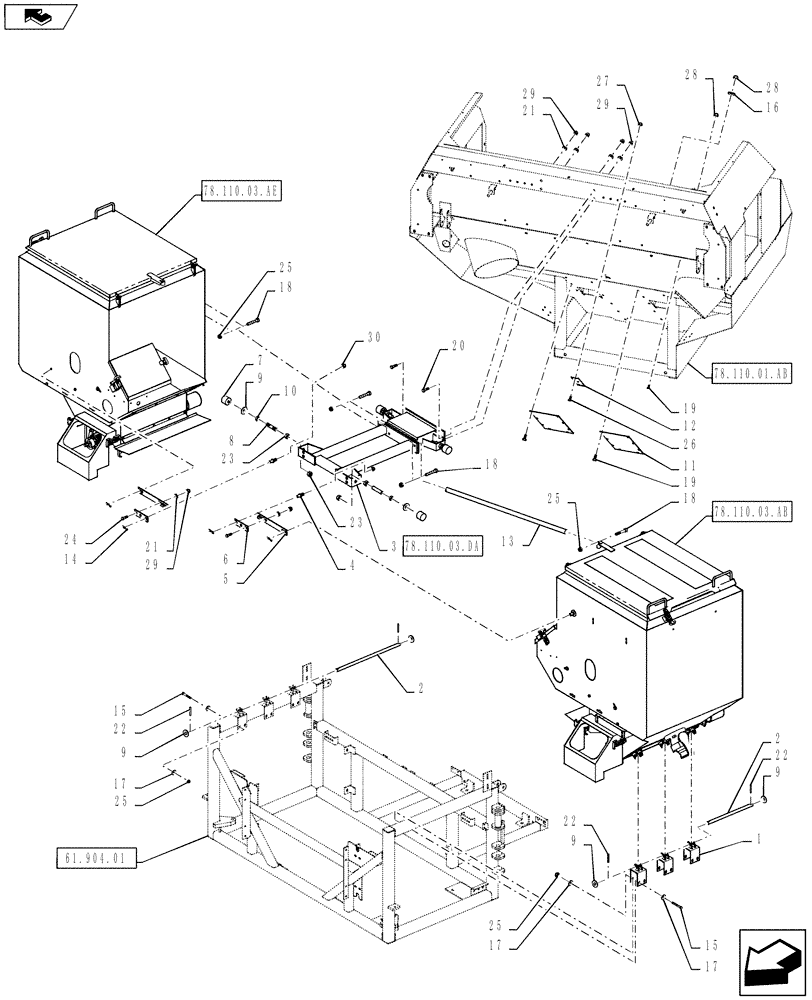

Схема запчастей Case IH 810 - (78.110.03.AA) - DOUBLE BIN MOUNTING, WITHOUT AUGER, 50 CUBIC FEET (78) - SPRAYING
30
25
78.110.03.ab
16
28
24
22
23
9
25
21
18
20
9
14
15
6
9
25
7
18
22
29
25
12
13
28
2
18
19
29
11
26
17
78.110.03.da
4
5
1
78.110.01.ab
15
17
22
78.110.03.ae
10
23
home
21
3
17
2
9
27
61.904.01
19
29
8

Артикул

Название

Примечание

Количество

1

47697228

HINGE

Co-Ap Bin

6шт.

2

BN306380

HINGE

3/4" Rod, Co-Ap Bin

2шт.

3

84185176

BRACKET

Center Co-Ap Support

1шт.

See Fig 78.110.03.DA For Service Parts

1шт.

4

BN309338

PIN

5/8" With Shoulder

2шт.

5

BN309339

BAR

Latch, Long

2шт.

6

BN309340

BAR

Latch, Short

2шт.

7

BN309409

BUMPER

2" DIA x 1-5/8", Neoprene

4шт.

8

BN309410

THREADED ROD

3/4-10, Threaded Rod

4шт.

9

BN309412

WASHER,3/4, Stainless Steel

8шт.

10

BN309413

SCREW,3/4" - 10, SST

3/4-10, Stainless Steel

4шт.

11

BN309886

COVER

Auxiliary Auger Hole

2шт.

12

BN309887

COVER

Sensor Hole

1шт.

13

BN310661

CABLE

Co-Ap Bin Tip

2шт.

14

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

4шт.

15

BN55373

BOLT,3/8"-16 X 3-1/2", Stainless Steel

12шт.

16

BN50142

WASHER,5/16", Stainless Steel

16шт.

17

BN50146

WASHER,3/8", Stainless

24шт.

18

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

19

BN50476

BOLT,5/16"-18 x 0.75", Stainless

20шт.

20

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

21

BN50595

WASHER,1/2", Stainless

8шт.

22

BN50600

COTTER PIN

3/16" X 1-1/2"

4шт.

23

BN50661

NUT,3/4"-10, Stainless Steel

8шт.

24

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

26

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

27

BN55359

LOCK NUT,1/4"-20, SS

4шт.

28

BN55361

NUT,5/16"-18, Nylon, Stainless

20шт.

29

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

8шт.

30

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

2шт.

31

BN55347

BOLT

1/2 x 13 x 3, HH, SS TAP, NOT SHOWN

4шт.

32

BN50071

NUT,1/2"-13, Stainless

NOT SHOWN

8шт.

Выбрано товаров: 33
