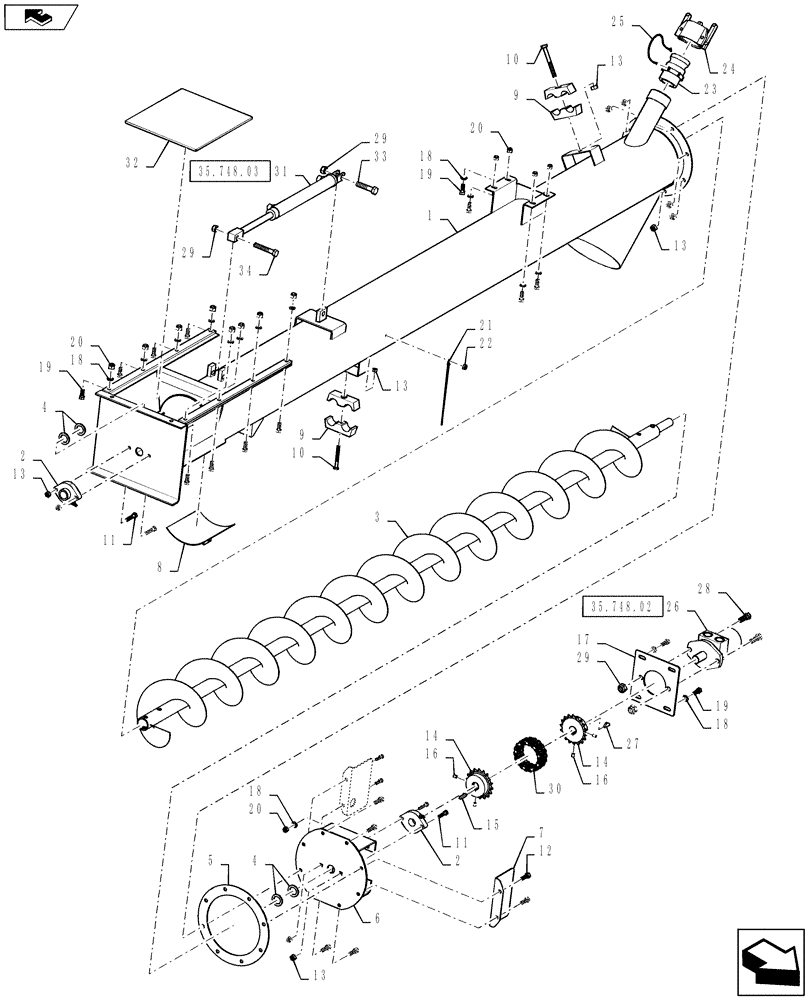

Запчасти Case IH 810 (78.110.02.AA[02]) - MAIN AUGER, 8", SN YCT033001 AND AFTER (78) - SPRAYING

1

BN321047

TUBE

8" Auger

1шт.

2

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

2шт.

3

BN35672

AUGER

8" Diameter

1шт.

4

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

1" ID x 1.5" OD x 10 Ga

4шт.

5

BN68577

GASKET

8" Auger, Upper

1шт.

6

BN35482

COVER

8" Auger

1шт.

7

84597792

COVER

Coupling, Chain Guard

2шт.

8

BN302843

DOOR

Cleanout, 8" Auger

1шт.

9

BN68161

CLAMP

Dual Tube, 1-1/4" Tube

2шт.

10

BN309848

SCREW,Hex, 5/16" - 18 x 3", SST

2шт.

11

BN50237

BOLT,5/16"-18 X 1-1/2", Stainless Steel

4шт.

12

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

8шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

14шт.

14

BN10181

SPROCKET

18 Teeth, With 1" Bore

2шт.

15

Q26

KEY,1/4" Sq x 1 1/4", Par

1шт.

16

80442

SET SCREW,5/16" - 18 x 1/2"

5/16"-18 x 3/8"

4шт.

17

BN35484

PLATE

Motor Mount, 8" Auger

1шт.

18

BN50146

WASHER,3/8", Stainless

20шт.

19

BN50254

BOLT,3/8"-16 x 1", Stainless

16шт.

20

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

21

BN570007

STRAP

Black, 14-1/2" Long

1шт.

22

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

1шт.

23

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

2" Cam x 2" MPT, Poly

1шт.

24

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever, Poly

1шт.

25

BN321087

STRAP

Lanyard, 11" Poly

1шт.

26

BN306957

HYDRAULIC MOTOR

Main Auger, 8". Includes Key Ref 33

1шт.

See Fig 35.748.02 For Service Parts

1шт.

27

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Included With Motor Ref 7

1шт.

28

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

29

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

30

1792DX

CHAIN (AG)

#50-2 Double Roller, Cut To Length Of 18 Links

1шт.

31

87266444

CYLINDER,Double Acting, 19.05mm Rod, 254mm Stroke

8" Auger Gate, 1.5 x 10 x .75

1шт.

See Fig 35.748.03 For Service Parts

1шт.

32

BN313600

GATE ASSY

8" Auger

1шт.

33

BN50786

BOLT,1/2"-13 x 2", Stainless

1шт.

34

BN55369

BOLT,1/2"-13 x 3", Stainless

1шт.
