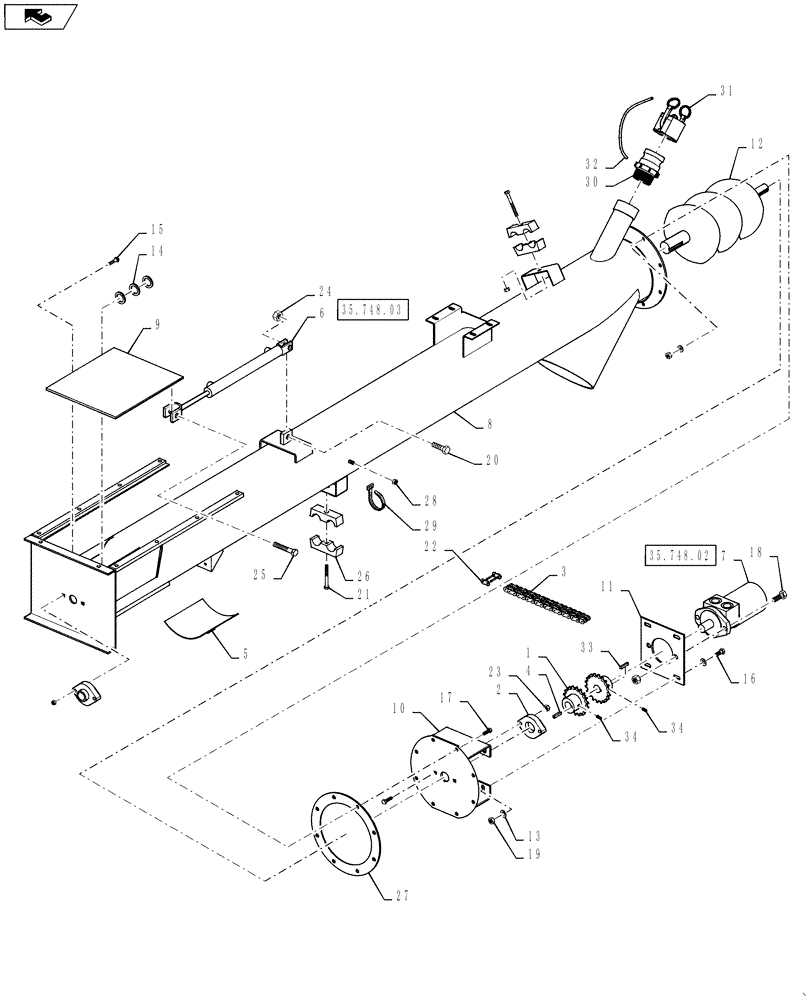

Запчасти Case IH 810 (78.110.02.AA[01]) - MAIN AUGER, 8", BSN YCT033001 (78) - SPRAYING

1

BN10181

SPROCKET

18 Teeth, With 1" Bore

2шт.

2

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

2шт.

3

BN53159

LINK

Bulk, #50-2 Double Roller, Cut To Length Of 18 Links

1шт.

4

Q26

KEY,1/4" Sq x 1 1/4", Par

2шт.

5

BN302843

DOOR

Cleanout, 8" Auger

1шт.

6

87266444

CYLINDER,Double Acting, 19.05mm Rod, 254mm Stroke

8" Auger Gate, 1.5 x 10 x .75

1шт.

See Fig 35.748.03 For Service Parts

1шт.

7

BN306957

HYDRAULIC MOTOR

Main Auger, 8". Includes Key Ref 33

1шт.

See Fig 35.748.02 For Service Parts

1шт.

8

BN321047

TUBE

8" Auger

1шт.

9

BN313600

GATE ASSY

8" Auger

1шт.

10

BN35482

COVER

8" Auger

1шт.

11

BN35484

PLATE

Motor Mount, 8" Auger

1шт.

12

BN35672

AUGER

8" Diameter

1шт.

13

BN50146

WASHER,3/8", Stainless

22шт.

14

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

1" ID x 1.5" OD x 10 Ga

6шт.

15

BN50237

BOLT,5/16"-18 X 1-1/2", Stainless Steel

4шт.

16

BN50254

BOLT,3/8"-16 x 1", Stainless

16шт.

17

BN50476

BOLT,5/16"-18 x 0.75", Stainless

8шт.

18

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

20

BN50786

BOLT,1/2"-13 x 2", Stainless

1шт.

21

BN309848

SCREW,Hex, 5/16" - 18 x 3", SST

2шт.

22

BN53159

LINK

Connecting, 50-2 Double Strand Roller Chain

1шт.

23

BN55361

NUT,5/16"-18, Nylon, Stainless

14шт.

24

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

25

BN55369

BOLT,1/2"-13 x 3", Stainless

1шт.

26

BN68161

CLAMP

Dual Tube, 1-1/4" Tube

2шт.

27

BN68577

GASKET

8" Auger, Upper

1шт.

28

BN570007

STRAP

Black, 14-1/2" Long

1шт.

29

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

1шт.

30

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

2" Cam x 2" MPT, Poly

1шт.

31

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever, Poly

1шт.

32

BN321087

STRAP

Lanyard, 11" Poly

1шт.

33

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Included With Motor Ref 7

1шт.

34

80442

SET SCREW,5/16" - 18 x 1/2"

5/16"-18 x 3/8"

4шт.
