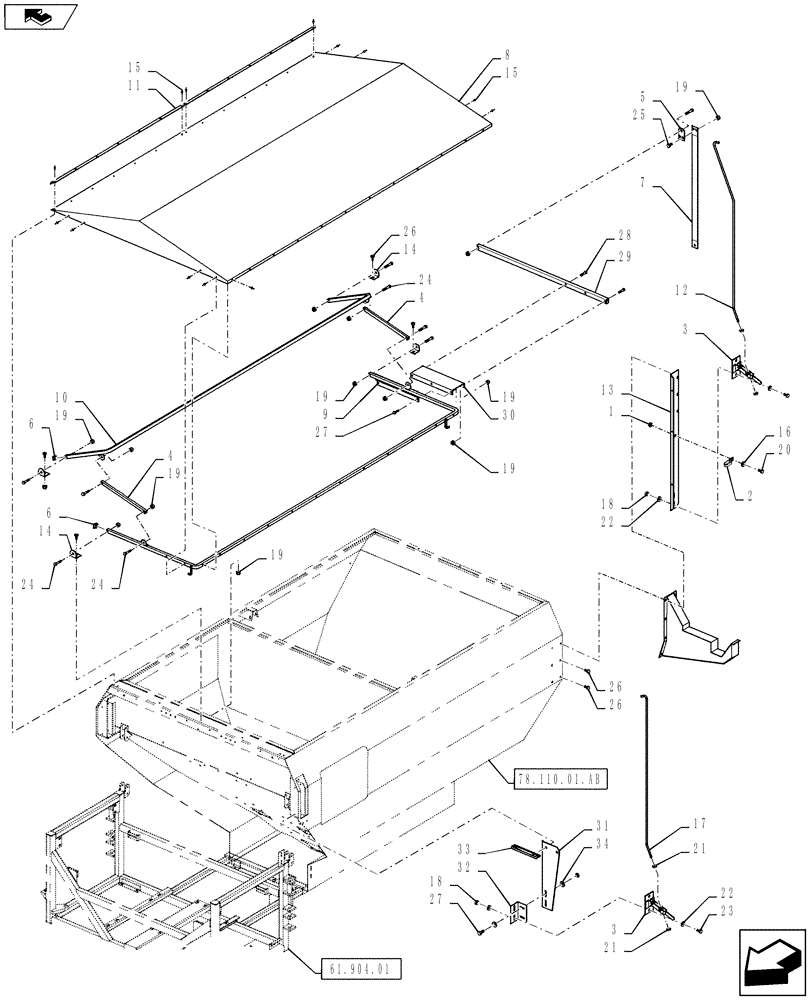

Запчасти Case IH 810 (78.110.01.AF) - OPTIONAL FLIP TOP TARP GROUP (78) - SPRAYING

1

BN55359

LOCK NUT,1/4"-20, SS

1шт.

2

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

3

BN05777

CLAMP

Lock Mech-Flip Top

2шт.

4

BN15214

LINK

Flip Top

2шт.

5

BN32816

BRACKET

2" x 3.75", Pivot

1шт.

6

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

7

BN32836

STRAP

Pull, Flip Top

1шт.

8

BN311670

TARPULIN

Flip Top, Gray

1шт.

9

BN35903

FRAME

Outside Flip Top

1шт.

10

BN35906

FRAME

Inside Flip Top

1шт.

11

BN35908

SUPPORT

Tarp, Outside

2шт.

12

BN67118

ROD

Flip Top, Side

1шт.

13

BN66075

SUPPORT

Flip Top Rod, Side

1шт.

14

BN324644

PIVOT

Flip Top Bracket

4шт.

15

BN54127

RIVET

Nylon Drive

34шт.

16

BN50138

WASHER,1/4", SS

1шт.

17

BN67117

ROD

Lock, Formed

1шт.

18

BN55361

NUT,5/16"-18, Nylon, Stainless

7шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

25шт.

20

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

1шт.

21

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

22

BN50142

WASHER,5/16", Stainless Steel

5шт.

23

BN50476

BOLT,5/16"-18 x 0.75", Stainless

3шт.

24

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

9шт.

25

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

26

87312740

BOLT

3/8-16 x 8, G5, DOR

2шт.

27

BN50254

BOLT,3/8"-16 x 1", Stainless

7шт.

28

BN50263

BOLT,3/8"-16 X 1-3/4", Stainless Steel

3шт.

29

BN311719

HANDLE

Flip Top

1шт.

30

BN311720

SPACER

Flip Top Handle

1шт.

31

BN319812

SUPPORT

Flip Top Front Rod

1шт.

32

BN319813

BRACKET

Lock

1шт.

33

BN319824

GUIDE

Rod

1шт.

34

BN50146

WASHER,3/8", Stainless

8шт.
