(78.110.01.AE) - SINGLE BIN ASSEMBLY

Запчасти Case IH 810 (78.110.01.AE) - SINGLE BIN ASSEMBLY (78) - SPRAYING

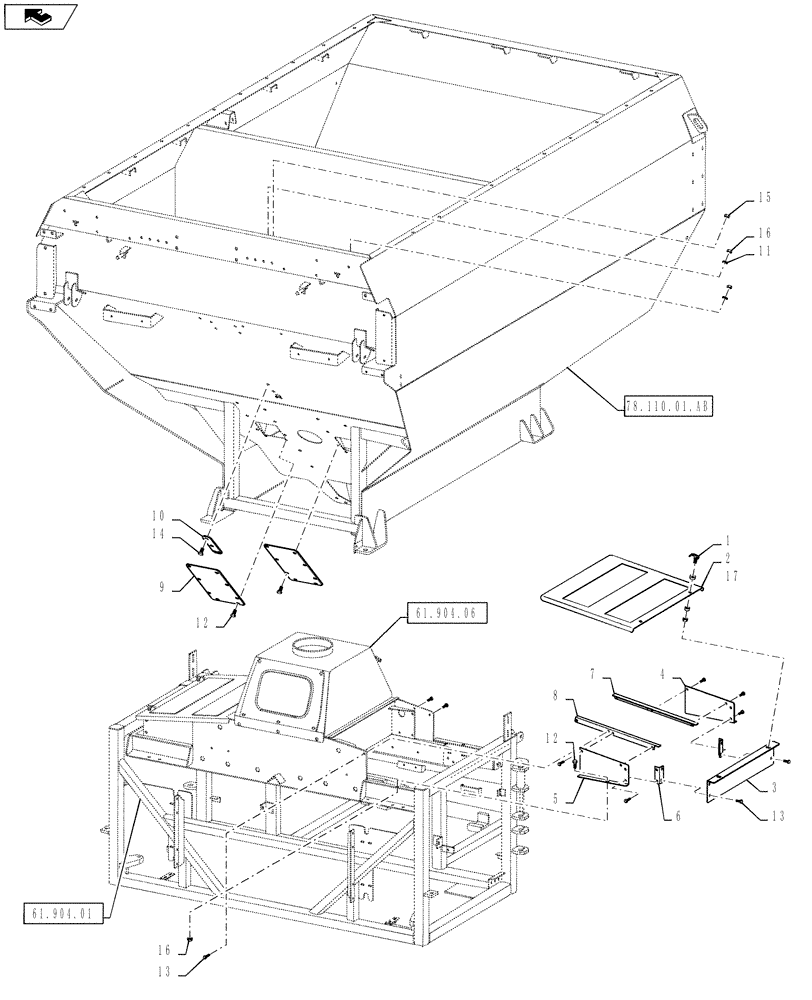

Схема запчастей Case IH 810 - (78.110.01.AE) - SINGLE BIN ASSEMBLY (78) - SPRAYING
16
13
3
12
6
15
1
17
11
14
9
5
7
12
8
10
16
4
2
61.904.06
78.110.01.ab
61.904.01
13
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

342478A1

LATCH

Swell

4шт.

2

BN307755

COVER

Single Bin

2шт.

3

BN307756

COVER

End, Support

2шт.

4

BN307757

COVER

RH Support

2шт.

5

BN307758

COVER

LH Support

2шт.

6

BN307759

COVER

Angle, Support

4шт.

7

BN307760

COVER

Angle, RH Support

2шт.

8

BN307762

COVER

Angle, LH Support

2шт.

9

BN309886

COVER

Auxiliary Auger Hole

2шт.

10

BN309887

COVER

Sensor Hole

1шт.

11

BN50142

WASHER,5/16", Stainless Steel

24шт.

12

BN50476

BOLT,5/16"-18 x 0.75", Stainless

26шт.

13

87270117

SELF-TAP SCREW,Hex Socket, 1/4" - 20 x 1/2"

1/4"-20 X 1/2", Stainless Steel

32шт.

14

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

15

BN55359

LOCK NUT,1/4"-20, SS

4шт.

16

BN55361

NUT,5/16"-18, Nylon, Stainless

32шт.

17

BN65578

STRIP

Safety Walk, FlexTred, 6" x 26"

4шт.
