(78.110.01.AD) - FRONT AUXILIARY BIN GATE

Запчасти Case IH 810 (78.110.01.AD) - FRONT AUXILIARY BIN GATE (78) - SPRAYING

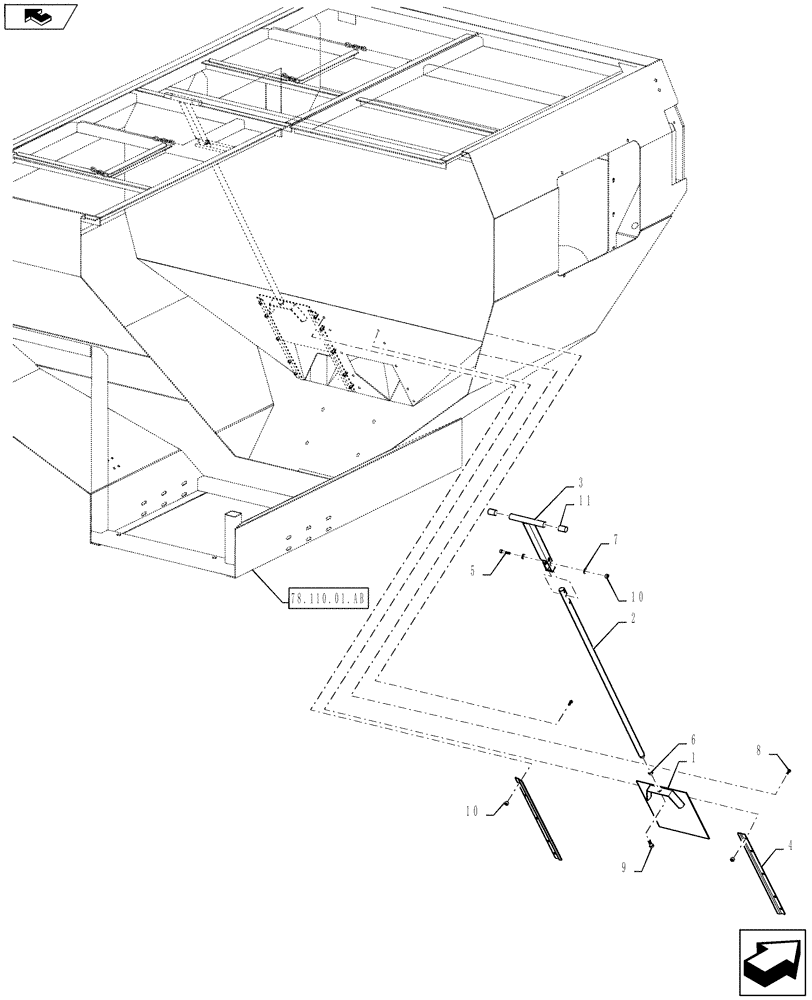

Схема запчастей Case IH 810 - (78.110.01.AD) - FRONT AUXILIARY BIN GATE (78) - SPRAYING
11
4
2
3
1
78.110.01.ab
9
6
home
10
8
5
10
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN311028

GATE ASSY

Auxiliary Bin

2шт.

2

BN311029

ROD

Auxiliary Bin Gate

2шт.

3

BN311030

HANDLE

Auxiliary Bin Gate

2шт.

4

BN311036

SLIDE

Auxiliary Bin Gate

4шт.

5

BN311038

NUT

5/16-18 X 2, Stainless Steel

2шт.

6

BN50071

NUT,1/2"-13, Stainless

2шт.

7

BN50142

WASHER,5/16", Stainless Steel

4шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

20шт.

9

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

10

BN55361

NUT,5/16"-18, Nylon, Stainless

22шт.

11

BN65712

CAP

RND, .937 ID X 1.50 IL

4шт.
