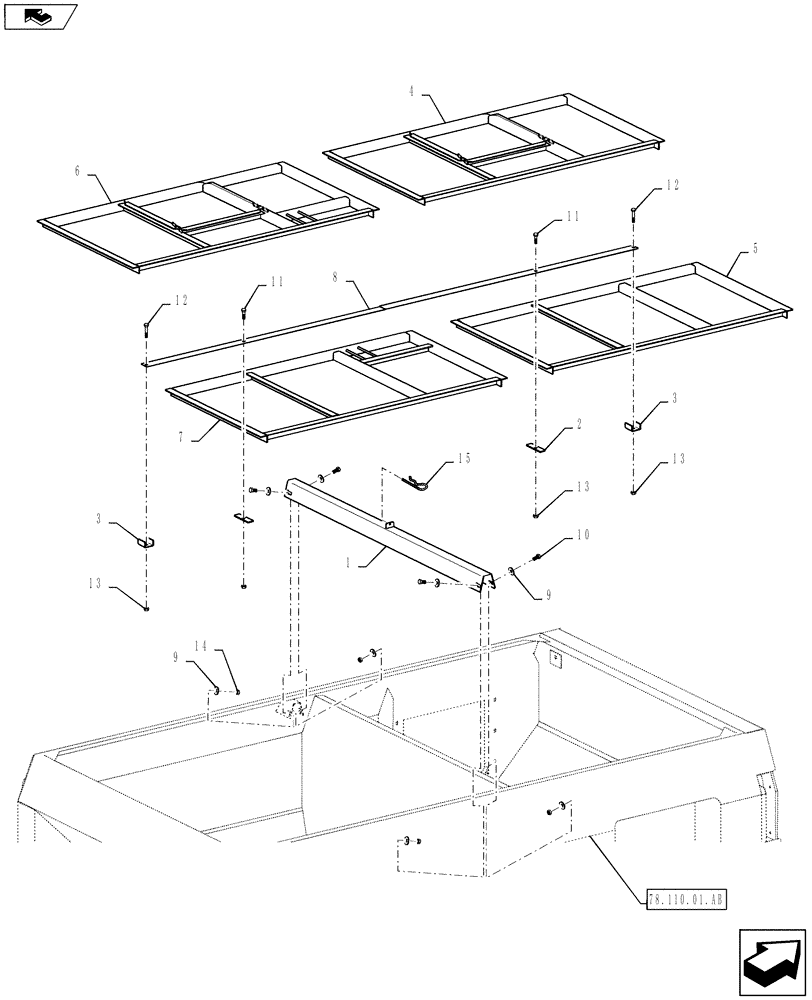

Запчасти Case IH 810 (78.110.01.AC) - MAIN BIN SCREEN (78) - SPRAYING
3
3
7
4
15
12
11
13
home
6
10
78.110.01.ab
13
11
13
9
1
5
8
12
9
14
2
№
Артикул
Название
Примечание
Количество
1
BN15199
SUPPORT
Screen, Center
1шт.
2
BN21803
MOUNTING PLATE
Screens
2шт.
3
BN21809
HOLDER
Tie Down, Screens
2шт.
4
BN311063
SCREEN
LH Front
1шт.
5
BN311064
SCREEN
RH Front
1шт.
6
BN311065
SCREEN
LH Rear
1шт.
7
BN311066
SCREEN
RH Rear
1шт.
8
BN35896
COVER
Center, Screen
2шт.
9
BN50142
WASHER,5/16", Stainless Steel
8шт.
10
BN50476
BOLT,5/16"-18 x 0.75", Stainless
4шт.
11
BN50671
BOLT,1/4"-20 x 1.00", Stainless Steel
2шт.
12
BN50681
BOLT,Hex, 1/4" - 20 x 1-1/2", SST
1/4-20 X 1.5, Stainless Steel
2шт.
13
BN55359
LOCK NUT,1/4"-20, SS
4шт.
14
BN55361
NUT,5/16"-18, Nylon, Stainless
4шт.
15
BN71007
CLIP,3/16" Hairpin
Hairpin, 3/16" #8
1шт.
Выбрано товаров: 15
