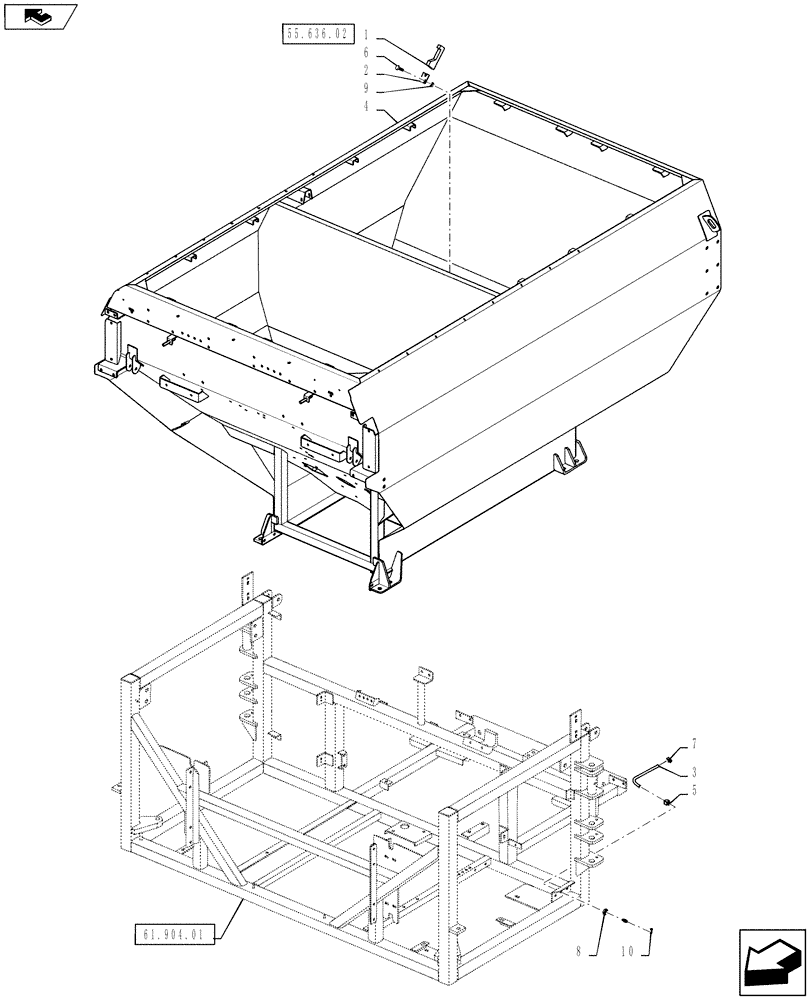

Запчасти Case IH 810 (78.110.01.AB) - MAIN BIN (78) - SPRAYING

1

BN319646

SENSOR

Bin Level

1шт.

See Fig 55.636.02 For Service Parts

1шт.

2

BN319230

COVER

Wire, Hopper Sensor

1шт.

3

BN311096

HOSE

Grease, 104" Long, Swivel

1шт.

4

87267587

BOX

Main Bin

1шт.

5

BN35805

ADAPTER

Straight 1/8 NPSM - NPTF

1шт.

6

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

7

BN311142

ELBOW

1/4-28 UNFT x 1/8-27 NPTF 90

1шт.

8

BN53570

BHD LOCK NUT

1шт.

9

BN55359

LOCK NUT,1/4"-20, SS

2шт.

10

BN69951

CAP

Grease

1шт.
