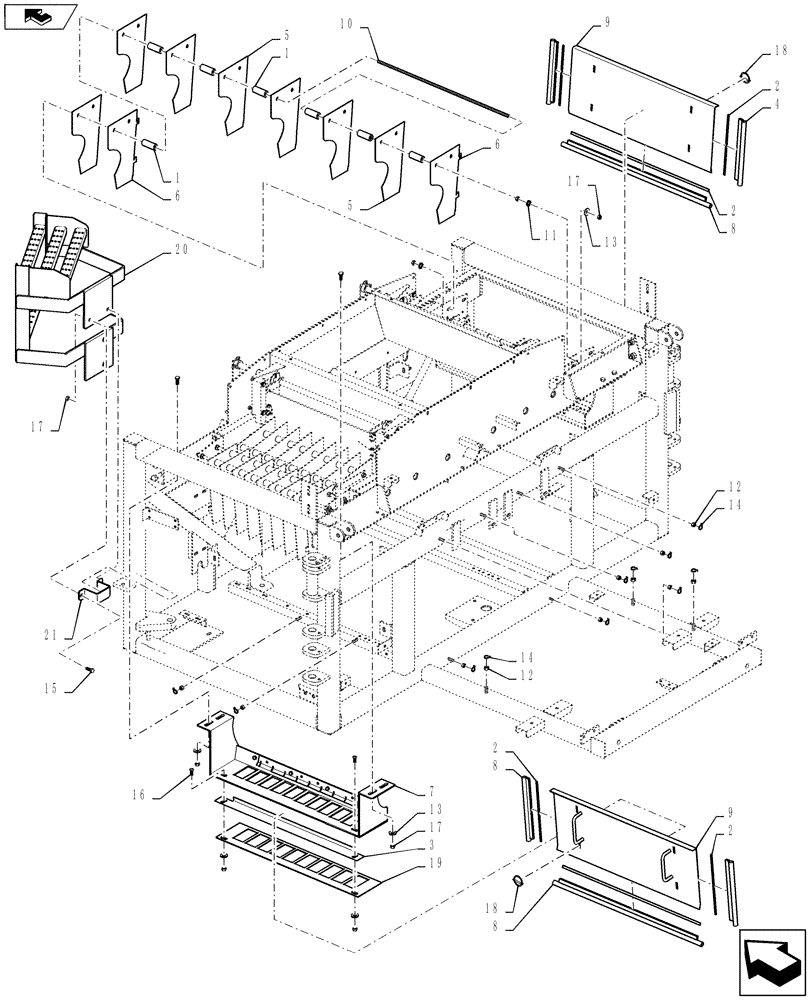

Запчасти Case IH 810 (61.904.05) - METERING SYSTEM DIVIDERS (61) - METERING SYSTEM

1

87265982

SPACER

Divider

32шт.

2

87267748

PLUG

Foam

12шт.

3

86986185

STOP DEVICE

Divider

2шт.

4

BN300592

SEAL

Seal, Door, Side

4шт.

5

BN307040

DIVIDER

14шт.

6

BN307041

DIVIDER

Outer, With Tab

4шт.

7

BN307226

SUPPORT

Air Manifold

2шт.

8

BN307595

DOOR SEAL

Door, Bottom

2шт.

9

BN307596

DOOR

Divider

2шт.

10

BN35414

ROD

3/8"-16 x 24-3/4"

4шт.

11

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

12

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

19шт.

13

BN50146

WASHER,3/8", Stainless

20шт.

14

BN570007

STRAP

Black, 14-1/2" Long

19шт.

15

BN50254

BOLT,3/8"-16 x 1", Stainless

10шт.

16

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

30шт.

18

87265724

PIN

1/4" DIA

4шт.

19

BN68581

GASKET

Between Divider and Venturi

2шт.

20

84406538

LADDER

Lower

1шт.

21

87267279

MOUNTING PLATE

Ladder

1шт.
