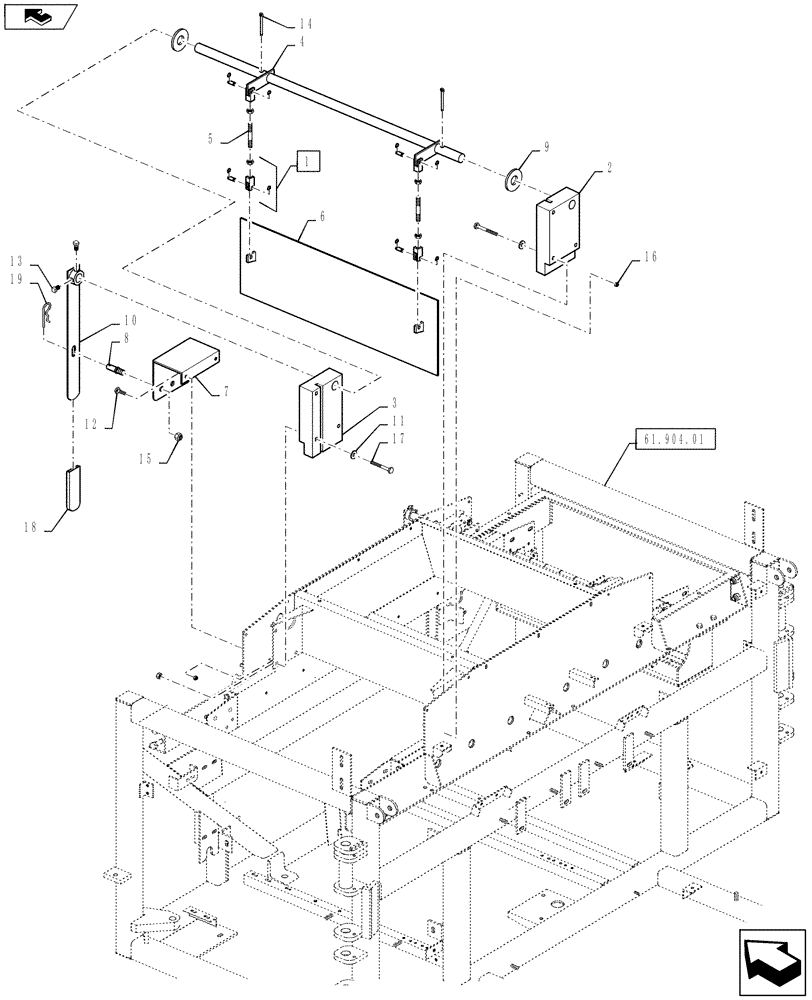

Запчасти Case IH 810 (61.904.04) - METERING GATE (61) - METERING SYSTEM

1

BN300254

KIT

5/16" Rod

8шт.

2

BN306615

SLIDE

Meter Gate, RH

2шт.

3

BN306616

SLIDE

Meter Gate, LH

2шт.

4

BN307008

SHAFT

Gate

2шт.

5

BN307011

ROD

5/16" Threaded, Stainless Steel

4шт.

6

87270728

GATE ASSY

2шт.

7

BN307046

MOUNT

Gate Adjust

2шт.

8

BN307047

PIN

3/8, With Shoulder

6шт.

9

BN309412

WASHER,3/4, Stainless Steel

4шт.

10

BN35411

HANDLE

Conveyor Gate Adjust

2шт.

11

BN50138

WASHER,1/4", SS

12шт.

12

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

13

BN50421

SET SCREW

5/16"-18 X 1/2"

4шт.

14

BN50604

COTTER PIN

1/8 X 1-1/2

4шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

16

BN55359

LOCK NUT,1/4"-20, SS

16шт.

17

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

12шт.

18

BN65711

CAP

1.25 X. 162 X 4.00

2шт.

19

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

2шт.
