(55.636.02) - MAIN BIN AND CO-AP BIN LEVEL SENSOR

Запчасти Case IH 810 (55.636.02) - MAIN BIN AND CO-AP BIN LEVEL SENSOR (55) - ELECTRICAL SYSTEMS

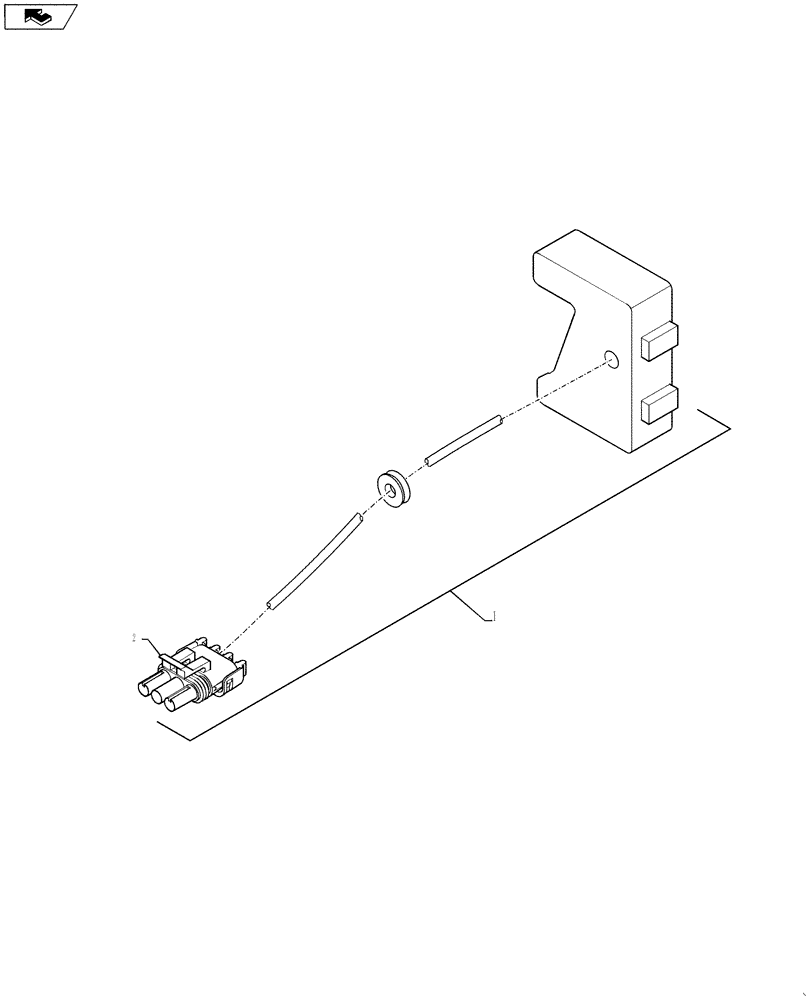

Схема запчастей Case IH 810 - (55.636.02) - MAIN BIN AND CO-AP BIN LEVEL SENSOR (55) - ELECTRICAL SYSTEMS
1
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN319646

SENSOR

Bin Level, Includes Ref 2

1шт.

2

87644909

WIRE CONNECTOR,Female, 3 Pins

Main Bin Level Sensor

1шт.

2

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Main Bin Level Sensor

3шт.

2

225124C1

SEAL,2 - 2.9 mm2

Main Bin Level Sensor

3шт.

Выбрано товаров: 4
