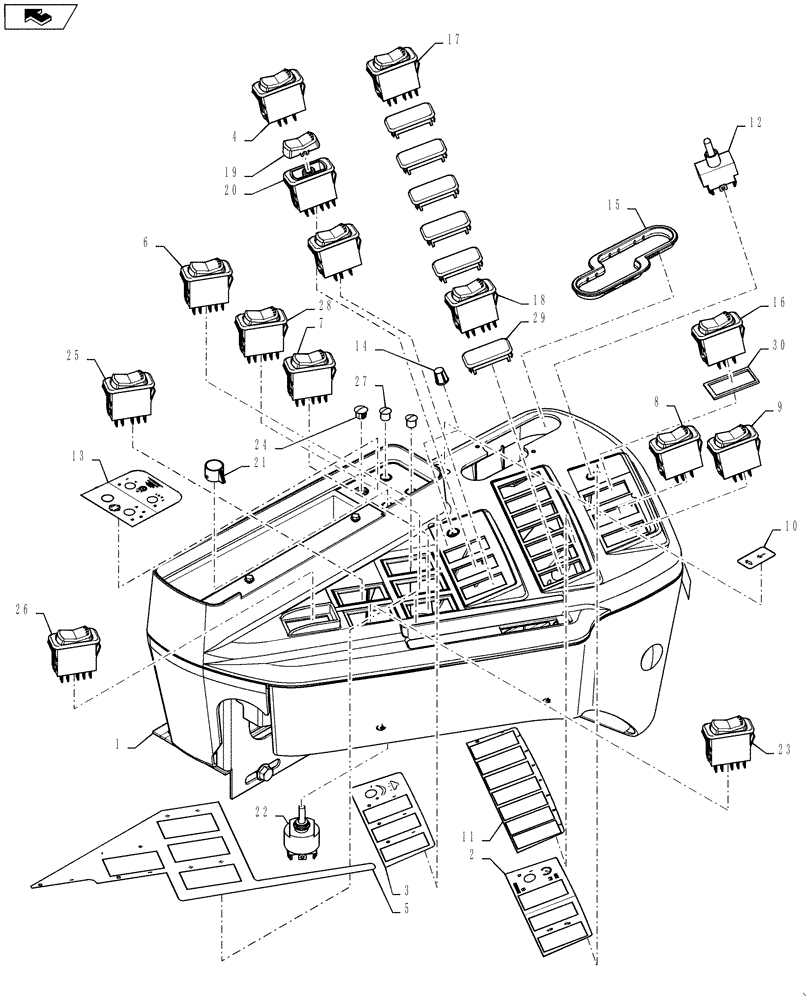

Запчасти Case IH 810 (55.521.02) - RH CONTROL PANEL, SCS5000 (55) - ELECTRICAL SYSTEMS

1

377999A1

CONSOLE

Panel, RH Controls

1шт.

2

87266889

DECAL

Fan Control

1шт.

3

87265867

DECAL

Foam Control

1шт.

4

BN321912

SWITCH

Foam Marker Activate

1шт.

5

87270532

DECAL

Boom Position

1шт.

6

BN321913

SWITCH

Boom Fold LH

1шт.

7

BN321915

SWITCH

Boom Fold RH

1шт.

8

BN324370

SWITCH

Fan, On/Off

1шт.

9

BN324369

SWITCH

Fan, Set

1шт.

10

BN324087

DECAL

Decelerate

1шт.

11

87266887

DECAL

Product Control

1шт.

12

BN24129

SWITCH

Cruise Control, On/Off

1шт.

13

87266892

DECAL

Gate Control

1шт.

14

118780A1

KNOB

Foam Marker

1шт.

15

128833A2

GUIDE

Propulsion Control Lever

1шт.

16

BN324151

SWITCH

Cruise Control Set

1шт.

17

BN324396

SWITCH

Boom Section

1шт.

18

BN324411

SWITCH

Main Auger, On/Off

1шт.

19

BN324405

SWITCH

Bin Gate, Rocker Switch Top Cover

2шт.

20

BN322908

SWITCH

Bin Gate, Rocker Switch Body

2шт.

21

342794A1

KNOB

Transmission Range Select

1шт.

22

86986401

SWITCH ASSY

Rotary, 4 Position, Transmission Range Select

1шт.

23

BN325000

SWITCH

Main Power

1шт.

24

282056A1

PLUG

Black

1шт.

25

BN321916

SWITCH

Sparge Pressure

1шт.

26

BN322904

SWITCH

Park Brake

1шт.

27

86625127

PLUG,Dome, .375" hole, Nylon

2шт.

28

344064A1

SWITCH

Boom Lock

1шт.

29

BN322626

PLUG

Rocker Switch Blank

8шт.

30

BN325825

SPACER

Switch

6шт.

31

84150951

DECAL

Fuse and Relay, SCS5000, Not Shown

1шт.

32

121412A1

FUSE,10A, Mini, Red

Not Shown

2шт.

33

121413A1

FUSE,15A, Mini, Blue

Not Shown

2шт.
