(55.404.03) - 46" FRAME EXTENSION TAILLIGHTS

Запчасти Case IH 810 (55.404.03) - 46" FRAME EXTENSION TAILLIGHTS (55) - ELECTRICAL SYSTEMS

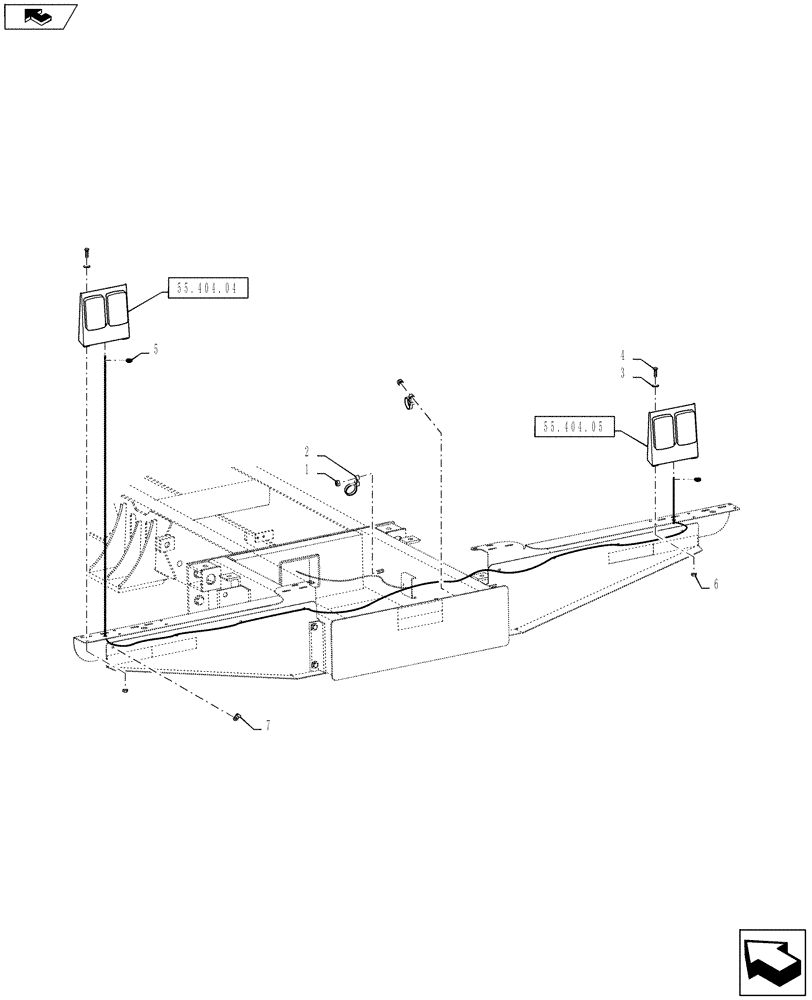

Схема запчастей Case IH 810 - (55.404.03) - 46" FRAME EXTENSION TAILLIGHTS (55) - ELECTRICAL SYSTEMS
6
1
4
2
3
55.404.04
55.404.05
7
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

2

BN570007

STRAP

Black, 14-1/2" Long

4шт.

3

BN50138

WASHER,1/4", SS

8шт.

4

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

5

BN85855

GROMMET

Large, 1/2" Hose

2шт.

6

BN55359

LOCK NUT,1/4"-20, SS

8шт.

7

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

8шт.
