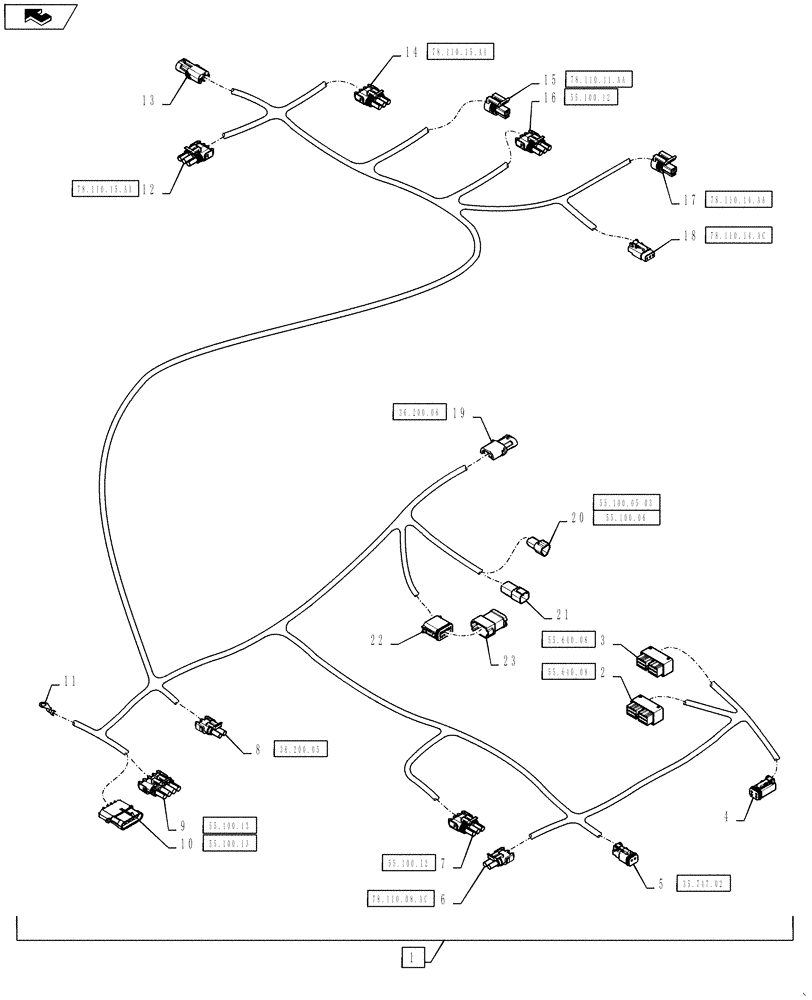

Запчасти Case IH 810 (55.100.14) - WET BOOM HARNESS (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
47362873
HARNESS
Wet Boom, Includes Ref 2 - 23
1шт.
2
84138326
ELEC CONNECTOR
Wet Boom Control Node, X-922F
1шт.
2
87270686
TERMINAL
Wet Boom Control Node, X-922F
4шт.
2
87270687
ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2
Wet Boom Control Node, X-922F
2шт.
2
84142712
PLUG
Wet Boom Control Node, X-922F
24шт.
3
87268797
MULTIPOLE CONNECTOR,Female, 30 Pole
Wet Boom Control Node, X-921F
1шт.
3
87270686
TERMINAL
Wet Boom Control Node, X-921F
21шт.
3
87270687
ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2
Wet Boom Control Node, X-921F
5шт.
3
84142712
PLUG
Wet Boom Control Node, X-921F
3шт.
4
87694153
CONTACT HOUSING,Female, 4 Cavities
Wet Can Buss Out, X-210F4
1шт.
4
84074640
LOCKING TAB,Wedge Lock
Wet Can Buss Out, X-210F4
1шт.
4
225365C1
SOCKET
Wet Can Buss Out, X-210F4
4шт.
5
87695582
ELEC CONNECTOR,Female, 2 Pole
Liquid Prop Valve, X-911F4
1шт.
5
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Liquid Prop Valve, X-911F4
2шт.
6
87692855
CONTACT HOUSING,Male, 2 Cavities
Sparge Valve, X-914F
1шт.
6
225123C1
TERMINAL CONNECTOR,Tin, 0.8mm
Sparge Valve, X-914F
2шт.
7
87644909
WIRE CONNECTOR,Female, 3 Pins
LH Mid Ball Valve, X-910F
1шт.
7
225123C1
TERMINAL CONNECTOR,Tin, 0.8mm
LH Mid Ball Valve, X-910F
3шт.
8
87692855
CONTACT HOUSING,Male, 2 Cavities
Boom Switch, X-930F
1шт.
8
225123C1
TERMINAL CONNECTOR,Tin, 0.8mm
Boom Switch, X-930F
2шт.
9
245486C1
ELEC CONNECTOR,4 Pin
Remote Controller Input, X-517F4
1шт.
9
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
Remote Controller Input, X-517F4
4шт.
10
245487C1
ELEC CONNECTOR,Male, 4 Pin
Remote Controller Output, X-520M4
1шт.
10
87692882
ELEC. TERMINAL PIN
Remote Controller Output, X-520M4
4шт.
11
84279551
ELEC CONNECTOR,1.00 - 2.50mm
Ground, G1-Wet
1шт.
12
87644909
WIRE CONNECTOR,Female, 3 Pins
RH Rear Ball Valve, X-906F
1шт.
12
225123C1
TERMINAL CONNECTOR,Tin, 0.8mm
RH Rear Ball Valve, X-906F
3шт.
13
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
Rear Liquid Level, X-908M
1шт.
13
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
Rear Liquid Level, X-908M
2шт.
14
87644909
WIRE CONNECTOR,Female, 3 Pins
LH Rear Ball Valve, X-909F
1шт.
14
225123C1
TERMINAL CONNECTOR,Tin, 0.8mm
LH Rear Ball Valve, X-909F
3шт.
15
87692837
WIRE CONNECTOR,Female, 3 Pole
Sprage PSI Sensor, X-916F
1шт.
15
87690510
ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2
Sprage PSI Sensor, X-916F
3шт.
16
87644909
WIRE CONNECTOR,Female, 3 Pins
RH Mid Ball Valve, X-904F
1шт.
16
225123C1
TERMINAL CONNECTOR,Tin, 0.8mm
RH Mid Ball Valve, X-904F
3шт.
17
87692837
WIRE CONNECTOR,Female, 3 Pole
Boom PSI Sensor, X-918F
1шт.
17
87690510
ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2
Boom PSI Sensor, X-918F
3шт.
18
87696551
CONTACT HOUSING,Female, 3 Pole
Flowmeter. X-919F
1шт.
18
87705586
WEDGE
Flowmeter. X-919F
1шт.
18
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Flowmeter. X-919F
1шт.
19
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
Boom Air Valve, X-931M
1шт.
19
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
Boom Air Valve, X-931M
2шт.
20
87695548
TERMINAL CONNECTOR
Product Harness Interface, X-550M
1шт.
20
87695625
WIRE CONNECTOR,Locking, Green
Product Harness Interface, X-550M
1шт.
20
86500035
ELEC. TERMINAL PIN,Male, 0.75 - 2mm
Product Harness Interface, X-550M
1шт.
20
381417A1
TERMINAL,Male, Nickel, 0.50 - 1.00mm
Product Harness Interface, X-550M
2шт.
21
87694102
ELEC CONNECTOR
Wet Can Buss In, X-210M4
1шт.
21
87694145
ELEC CONNECTOR
Wet Can Buss In, X-210M4
1шт.
21
225366C1
ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm
Wet Can Buss In, X-210M4
4шт.
22
87695592
CONTACT HOUSING,Female, 12 Pole
2 x 6 Way Splice, X-900F
1шт.
22
87695651
LOCKING TAB,Wedge Lock
2 x 6 Way Splice, X-900F
1шт.
22
86500036
TERMINAL,Female, Nickel, 0.75 - 2mm
2 x 6 Way Splice, X-900F
2шт.
22
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
2 x 6 Way Splice, X-900F
9шт.
22
84068583
PLUG,12 - 16 Ga, White
2 x 6 Way Splice, X-900F
1шт.
23
87381540
ELEC CONNECTOR
2 x 6 Way Splice Pack, SP-900M
1шт.
Выбрано товаров: 56
