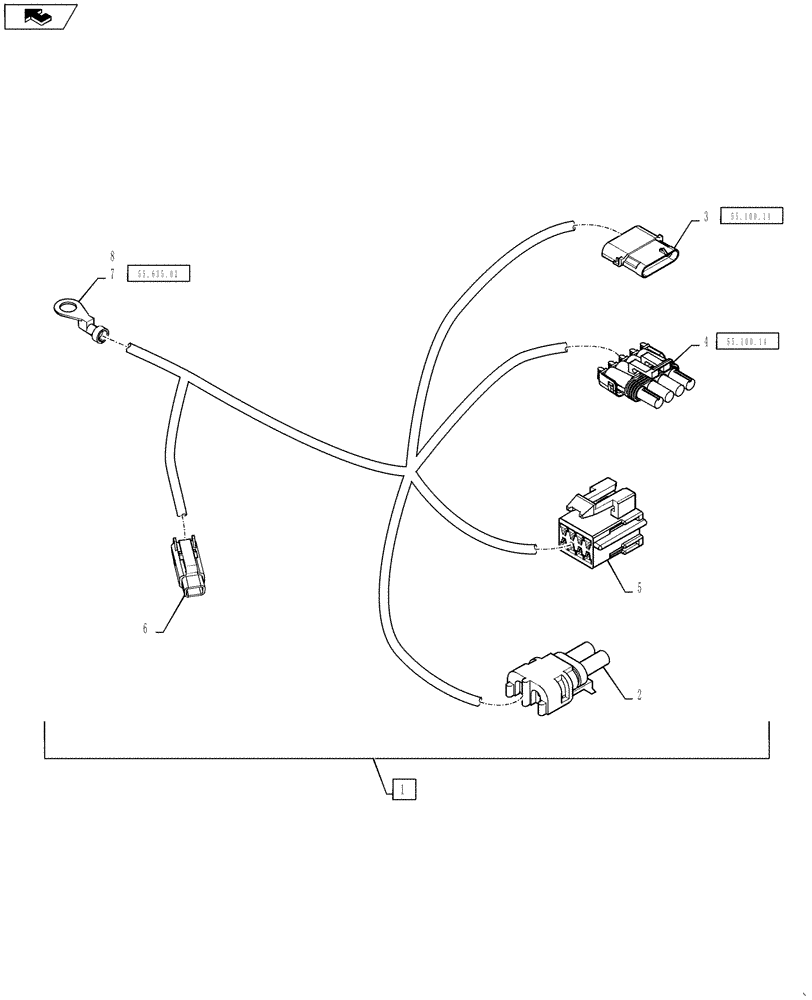

Запчасти Case IH 810 (55.100.13) - REMOTE MODULE HARNESS (55) - ELECTRICAL SYSTEMS

1

87266537

HARNESS

Remote Module, Includes Ref 2 - 8

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

Remote Park Brake, X-630F

1шт.

Connects To Main Frame Harness On Chassis

1шт.

3

245487C1

ELEC CONNECTOR,Male, 4 Pin

Remote Controller Input, X-517M

1шт.

4

245486C1

ELEC CONNECTOR,4 Pin

Remote Controller Output, X-520F

1шт.

5

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Engine, X-800F

1шт.

Connects To Main Frame Harness On Chassis

1шт.

6

222136A1

ELEC CONNECTOR,Male, 2 Pin

Light, X-006

1шт.

7

1964702C1

TERMINAL CONNECTOR

#6 Rings

16шт.

8

1964703C1

TERMINAL CONNECTOR

#8 Rings

2шт.
