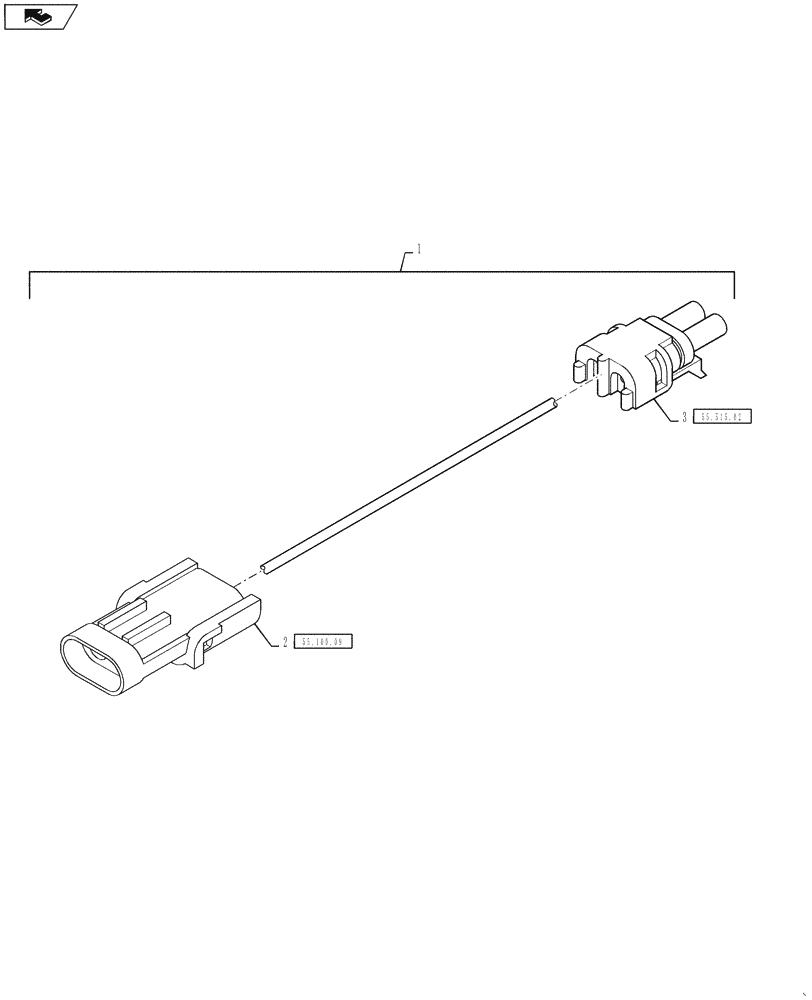

Запчасти Case IH 810 (55.100.11) - RH BOOM POSITION SWITCH HARNESS, 70 BOOM (55) - ELECTRICAL SYSTEMS

1

BN318448

WIRE HARNESS

Extension, RH Boom Position Switch, 70' Boom Only, Includes Ref 2 - 3

1шт.

2

245483C1

ELEC CONNECTOR,Male, 2 Pin

Boom Protect Harness Interface, JR

1шт.

2

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Boom Protect Harness Interface, JR

2шт.

2

225124C1

SEAL,2 - 2.9 mm2

Boom Protect Harness Interface, JR

2шт.

3

245483C1

ELEC CONNECTOR,Male, 2 Pin

RH Boom Position Switch, JRS

1шт.

3

225124C1

SEAL,2 - 2.9 mm2

RH Boom Position Switch, JRS

2шт.
