Запчасти Case IH 810 (55.100.08) - HYDRAULIC CONTROL HARNESS, SCS5000 (55) - ELECTRICAL SYSTEMS

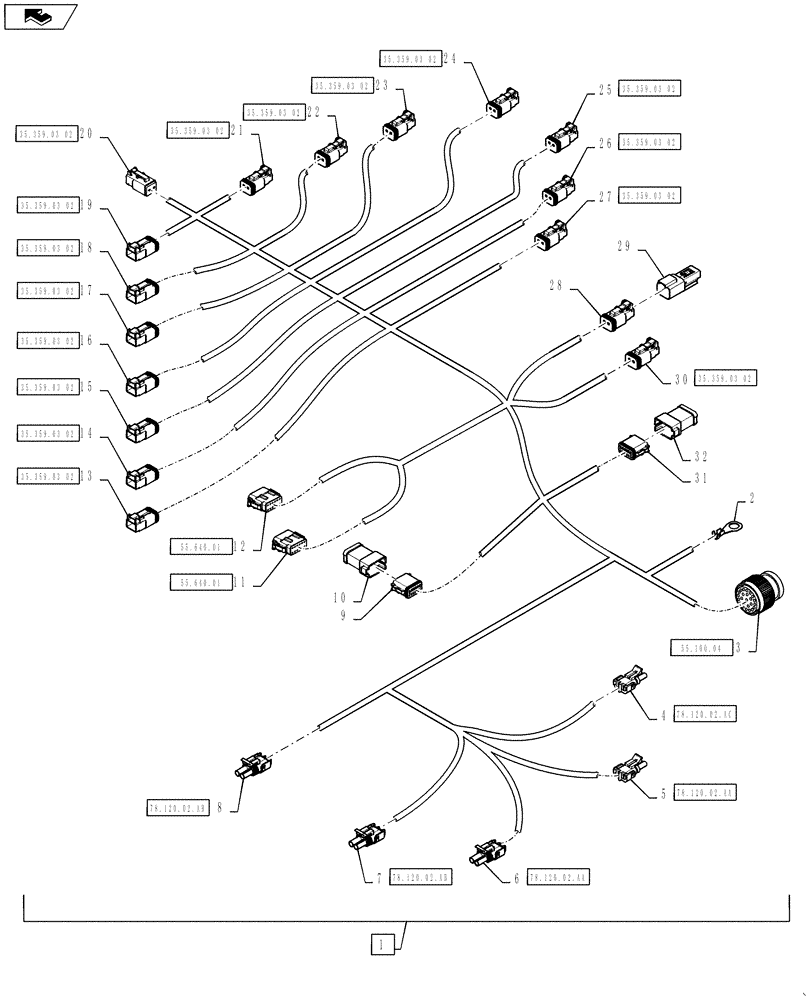

Схема запчастей Case IH 810 - (55.100.08) - HYDRAULIC CONTROL HARNESS, SCS5000 (55) - ELECTRICAL SYSTEMS
27
32
28
6
31
14
12
11
10
7
20
13
25
9
home
21
8
5
24
26
2
3
4
29
15
17
16
19
1
23
55.640.01
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
78.120.02.ab
78.120.02.ab
78.120.02.aa
78.120.02.aa
78.120.02.ac
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
35.359.03 02
55.640.01
55.100.04
22
18
30

Артикул

Название

Примечание

Количество

1

84195996

WIRE HARNESS

Hydraulic Control, Used With SCS5000 Controller Option, 810, Includes Ref 2 - 32

1шт.

2

84140737

TERMINAL CONNECTOR

Chassis Ground, G1-HF3

1шт.

3

380840A1

TERMINAL CONNECTOR,Female, 31 Cavities

Cab Harness Interface, XB-4F3

1шт.

3

84068583

PLUG,12 - 16 Ga, White

Cab Harness Interface, XB-4F3

12шт.

3

225241C1

SOCKET

Cab Harness Interface, XB-4F3

19шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Foam, Air Solenoid, X-421F3

1шт.

4

BN16174

DIODE,600V, 3A

3A 600V, RH Foam, Air Solenoid, X-421F3

1шт.

4

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Foam, Air Solenoid, X-421F3

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Foam, Foam Solenoid, X-415F3

1шт.

5

BN16174

DIODE,600V, 3A

3A 600V, RH Foam, Foam Solenoid, X-415F3

1шт.

5

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Foam, Foam Solenoid, X-415F3

2шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Foam, Foam Solenoid, X-416F3

1шт.

6

BN16174

DIODE,600V, 3A

3A 600V, LH Foam, Foam Solenoid, X-416F3

1шт.

6

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Foam, Foam Solenoid, X-416F3

2шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Foam, Air Solenoid, X-414F3

1шт.

7

BN16174

DIODE,600V, 3A

3A 600V, LH Foam, Air Solenoid, X-414F3

1шт.

7

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Foam, Air Solenoid, X-414F3

2шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Foam Motor, X-417F3

1шт.

8

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Foam Motor, X-417F3

2шт.

9

87695592

CONTACT HOUSING,Female, 12 Pole

Splice 094, X-426F3

1шт.

9

87695651

LOCKING TAB,Wedge Lock

Splice 094, X-426F3

1шт.

9

84068583

PLUG,12 - 16 Ga, White

Splice 094, X-426F3

2шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice 094, X-426F3

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice 094, X-426F3

9шт.

10

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, SP-426M3

1шт.

11

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Unload Detect Module, X-133F3

1шт.

11

87705198

WEDGE

Unload Detect Module, X-133F3

1шт.

11

84807680

PLUG

Unload Detect Module, X-133F3

6шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Unload Detect Module, X-133F3

8шт.

12

87700156

CONTACT HOUSING,Female, 12 Pole

Unload Detect Module, X-132F3

1шт.

12

87705198

WEDGE

Unload Detect Module, X-132F3

1шт.

12

84807680

PLUG

Unload Detect Module, X-132F3

1шт.

12

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Unload Detect Module, X-132F3

11шт.

13

87695582

ELEC CONNECTOR,Female, 2 Pole

Main Auger Gate Open, X-422F3

1шт.

13

87695649

ELEC CONNECTOR,Locking, Green

Main Auger Gate Open, X-422F3

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Main Auger Gate Open, X-422F3

2шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip Fold Out, X-409F3

1шт.

14

87695649

ELEC CONNECTOR,Locking, Green

RH Tip Fold Out, X-409F3

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Tip Fold Out, X-409F3

2шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip Fold Out, X-411F3

1шт.

15

87695649

ELEC CONNECTOR,Locking, Green

LH Tip Fold Out, X-411F3

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Tip Fold Out, X-411F3

2шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Down, X-404F3

1шт.

16

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Level Down, X-404F3

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Level Down, X-404F3

2шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Up, X-407F3

1шт.

17

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Level Up, X-407F3

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Level Up, X-407F3

2шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Fold Out, X-402F3

1шт.

18

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Fold Out, X-402F3

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Fold Out, X-402F3

2шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Fold Out, X-400F3

1шт.

19

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Fold Out, X-400F3

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Fold Out, X-400F3

2шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

Unload, X-412F3

1шт.

20

87695649

ELEC CONNECTOR,Locking, Green

Unload, X-412F3

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Unload, X-412F3

2шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Fold In, X-401F3

1шт.

21

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Fold In, X-401F3

1шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Fold In, X-401F3

2шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Fold In, X-403F3

1шт.

22

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Fold In, X-403F3

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Fold In, X-403F3

2шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Down, X-406F3

1шт.

23

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Level Down, X-406F3

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Level Down, X-406F3

2шт.

24

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Up, X-405F3

1шт.

24

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Level Up, X-405F3

1шт.

24

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Level Up, X-405F3

2шт.

25

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip Fold In, X-410F3

1шт.

25

87695649

ELEC CONNECTOR,Locking, Green

LH Tip Fold In, X-410F3

1шт.

25

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Tip Fold In, X-410F3

2шт.

26

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip Fold In, X-408F3

1шт.

26

87695649

ELEC CONNECTOR,Locking, Green

RH Tip Fold In, X-408F3

1шт.

26

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Tip Fold In, X-408F3

2шт.

27

87695582

ELEC CONNECTOR,Female, 2 Pole

Main Auger Gate Closed, X-422F3

1шт.

27

87695649

ELEC CONNECTOR,Locking, Green

Main Auger Gate Closed, X-422F3

1шт.

27

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Main Auger Gate Closed, X-422F3

2шт.

28

87695584

CONTACT HOUSING,Male, 2 Cavities

Auxiliary Power, X-413M3

1шт.

28

87577731

CONTACT HOUSING,2 Pole

Auxiliary Power, X-413M3

1шт.

28

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Auxiliary Power, X-413M3

1шт.

28

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Auxiliary Power, X-413M3

1шт.

29

87695582

ELEC CONNECTOR,Female, 2 Pole

Cap For Auxiliary Power, X-413F3

1шт.

29

84068583

PLUG,12 - 16 Ga, White

Cap For Auxiliary Power, X-413F3

2шт.

30

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Lock, X-454F3

1шт.

30

87695649

ELEC CONNECTOR,Locking, Green

Boom Lock, X-454F3

1шт.

30

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Boom Lock, X-454F3

2шт.

31

87695592

CONTACT HOUSING,Female, 12 Pole

Splice 094, X-425F3

1шт.

31

87695651

LOCKING TAB,Wedge Lock

Splice 094, X-425F3

1шт.

31

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice 094, X-425F3

2шт.

31

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice 094, X-425F3

10шт.

32

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, SP-425M3

1шт.

Выбрано товаров: 92
