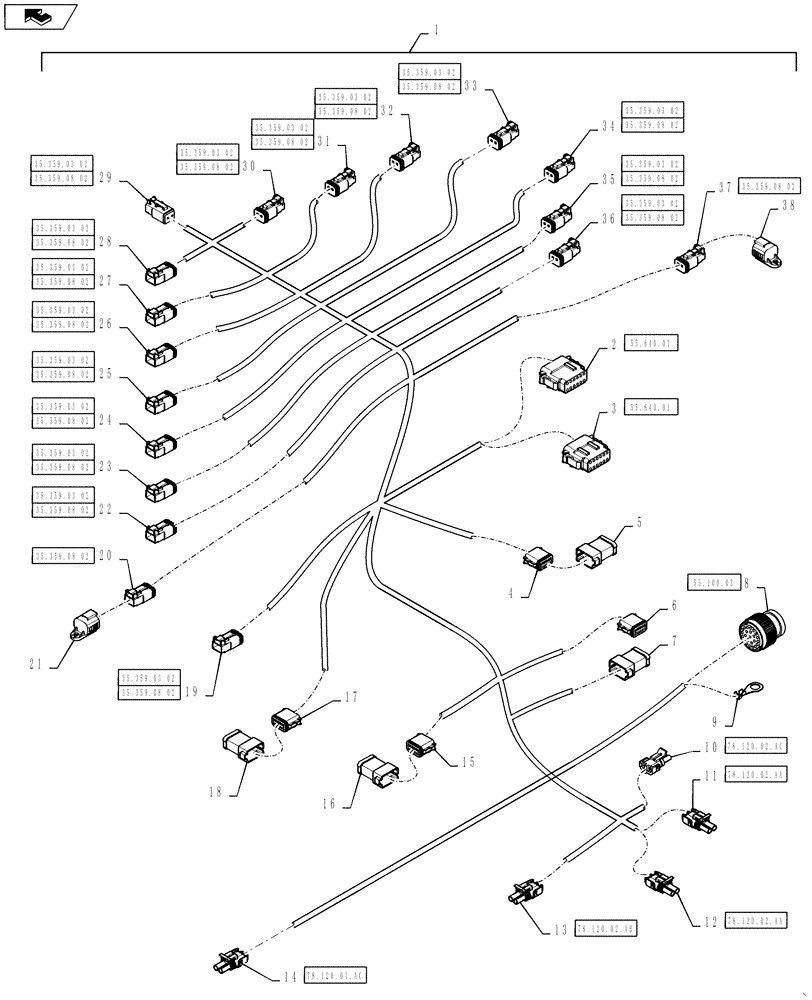

Запчасти Case IH 810 (55.100.07) - HYDRAULIC CONTROL HARNESS, VIPER PRO (55) - ELECTRICAL SYSTEMS

1

84168202

WIRE HARNESS

Hydraulic Control, Used With Viper Pro Controller Option, 810, Includes Ref 2 - 38

1шт.

2

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Unload Detect Module, X-133F2

1шт.

2

87705198

WEDGE

Unload Detect Module, X-133F2

1шт.

2

84807680

PLUG

Unload Detect Module, X-133F2

4шт.

2

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Unload Detect Module, X-133F2

8шт.

3

87700156

CONTACT HOUSING,Female, 12 Pole

Unload Detect Module, X-132F2

1шт.

3

87705198

WEDGE

Unload Detect Module, X-132F2

1шт.

3

84807680

PLUG

Unload Detect Module, X-132F2

1шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Unload Detect Module, X-132F2

11шт.

4

87695592

CONTACT HOUSING,Female, 12 Pole

Splice, X425F2

1шт.

4

87695651

LOCKING TAB,Wedge Lock

Splice, X425F2

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Splice, X425F2

3шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice, X425F2

8шт.

4

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice, X425F2

1шт.

5

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, SP-425M2

1шт.

6

87695592

CONTACT HOUSING,Female, 12 Pole

Accuboom Interface, X-433F2

1шт.

6

87695651

LOCKING TAB,Wedge Lock

Accuboom Interface, X-433F2

1шт.

6

84068583

PLUG,12 - 16 Ga, White

Accuboom Interface, X-433F2

3шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Accuboom Interface, X-433F2

9шт.

7

87695724

ELEC CONNECTOR,Male, 12 Pole

Accuboom Interface, X-433M2

1шт.

7

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Accuboom Interface, X-433M2

1шт.

7

84068583

PLUG,12 - 16 Ga, White

Accuboom Interface, X-433M2

3шт.

7

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Accuboom Interface, X-433M2

9шт.

8

380840A1

TERMINAL CONNECTOR,Female, 31 Cavities

Cab Harness Interface, XB-4F2

1шт.

8

84068583

PLUG,12 - 16 Ga, White

Cab Harness Interface, XB-4F2

10шт.

8

87695909

ELEC CONNECTOR,Female, 2 Pole

Cab Harness Interface, XB-4F2

21шт.

9

84140737

TERMINAL CONNECTOR

Chassis Ground, G1-HF2

1шт.

10

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Foam, Air Solenoid, X-421F2

1шт.

10

BN16174

DIODE,600V, 3A

3A 600V, RH Foam, Air Solenoid, X-421F2

1шт.

10

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Foam, Air Solenoid, X-421F2

2шт.

11

87692855

CONTACT HOUSING,Male, 2 Cavities

RH Foam, Foam Solenoid, X-415F2

1шт.

11

BN16174

DIODE,600V, 3A

3A 600V, RH Foam, Foam Solenoid, X-415F2

1шт.

11

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Foam, Foam Solenoid, X-415F2

2шт.

12

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Foam, Foam Solenoid, X-416F2

1шт.

12

BN16174

DIODE,600V, 3A

3A 600V, LH Foam, Foam Solenoid, X-416F2

1шт.

12

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Foam, Foam Solenoid, X-416F2

2шт.

13

87692855

CONTACT HOUSING,Male, 2 Cavities

LH Foam, Air Solenoid, X-414F2

1шт.

13

BN16174

DIODE,600V, 3A

3A 600V, LH Foam, Air Solenoid, X-414F2

1шт.

13

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Foam, Air Solenoid, X-414F2

2шт.

14

87692855

CONTACT HOUSING,Male, 2 Cavities

Foam Motor, X-417F2

1шт.

14

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Foam Motor, X-417F2

2шт.

15

87695592

CONTACT HOUSING,Female, 12 Pole

Splice, X-457F2

1шт.

15

87695651

LOCKING TAB,Wedge Lock

Splice, X-457F2

1шт.

15

84068583

PLUG,12 - 16 Ga, White

Splice, X-457F2

4шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice, X-457F2

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice, X-457F2

7шт.

16

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, SP-427M2

1шт.

17

87695592

CONTACT HOUSING,Female, 12 Pole

Splice, X-456F2

1шт.

17

87695651

LOCKING TAB,Wedge Lock

Splice, X-456F2

1шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice, X-456F2

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice, X-456F2

11шт.

18

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, SP-426M2

1шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Lock, X-454F2

1шт.

19

87695649

ELEC CONNECTOR,Locking, Green

Boom Lock, X-454F2

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Boom Lock, X-454F2

2шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

Supplemental Auger Gate Open, X-427F2

1шт.

20

87695649

ELEC CONNECTOR,Locking, Green

Supplemental Auger Gate Open, X-427F2

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Supplemental Auger Gate Open, X-427F2

2шт.

21

84391159

WIRE CONNECTOR

Cap For Supplemental Auger Gate Open, X-427M2

1шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

Main Auger Gate Open, X-423F2

1шт.

22

87695649

ELEC CONNECTOR,Locking, Green

Main Auger Gate Open, X-423F2

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Main Auger Gate Open, X-423F2

2шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip Fold In, X-408F2

1шт.

23

87695649

ELEC CONNECTOR,Locking, Green

RH Tip Fold In, X-408F2

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Tip Fold In, X-408F2

2шт.

24

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip Fold In, X-410F2

1шт.

24

87695649

ELEC CONNECTOR,Locking, Green

LH Tip Fold In, X-410F2

1шт.

24

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Tip Fold In, X-410F2

2шт.

25

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Down, X-404F2

1шт.

25

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Level Down, X-404F2

1шт.

25

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Level Down, X-404F2

2шт.

26

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Up, X-407F2

1шт.

26

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Level Up, X-407F2

1шт.

26

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Level Up, X-407F2

2шт.

27

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Fold Out, X-402F2

1шт.

27

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Fold Out, X-402F2

1шт.

27

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Fold Out, X-402F2

2шт.

28

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Fold Out, X-400F2

1шт.

28

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Fold Out, X-400F2

1шт.

28

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Fold Out, X-400F2

2шт.

29

87695582

ELEC CONNECTOR,Female, 2 Pole

Unload, X-412F2

1шт.

29

87695649

ELEC CONNECTOR,Locking, Green

Unload, X-412F2

1шт.

29

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Unload, X-412F2

2шт.

30

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Fold In, X-401F2

1шт.

30

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Fold In, X-401F2

1шт.

30

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Fold In, X-401F2

2шт.

31

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Fold In, X-403F2

1шт.

31

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Fold In, X-403F2

1шт.

31

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Fold In, X-403F2

2шт.

32

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Boom Level Down, X-406F2

1шт.

32

87695649

ELEC CONNECTOR,Locking, Green

LH Boom Level Down, X-406F2

1шт.

32

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Boom Level Down, X-406F2

2шт.

33

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Level Up, X-405F2

1шт.

33

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Level Up, X-405F2

1шт.

33

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Boom Level Up, X-405F2

2шт.

34

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Tip Fold Out, X-411F2

1шт.

34

87695649

ELEC CONNECTOR,Locking, Green

LH Tip Fold Out, X-411F2

1шт.

34

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Tip Fold Out, X-411F2

2шт.

35

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Tip Fold Out, X-409F2

1шт.

35

87695649

ELEC CONNECTOR,Locking, Green

RH Tip Fold Out, X-409F2

1шт.

35

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Tip Fold Out, X-409F2

2шт.

36

87695582

ELEC CONNECTOR,Female, 2 Pole

Main Auger Gate Closed, X-422F2

1шт.

36

87695649

ELEC CONNECTOR,Locking, Green

Main Auger Gate Closed, X-422F2

1шт.

36

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Main Auger Gate Closed, X-422F2

2шт.

37

87695582

ELEC CONNECTOR,Female, 2 Pole

Supplemental Auger Gate Closed, X-428F2

1шт.

37

87695649

ELEC CONNECTOR,Locking, Green

Supplemental Auger Gate Closed, X-428F2

1шт.

37

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Supplemental Auger Gate Closed, X-428F2

2шт.

38

84391159

WIRE CONNECTOR

Cap For Supplemental Auger Gate Closed, X-428M2

1шт.
