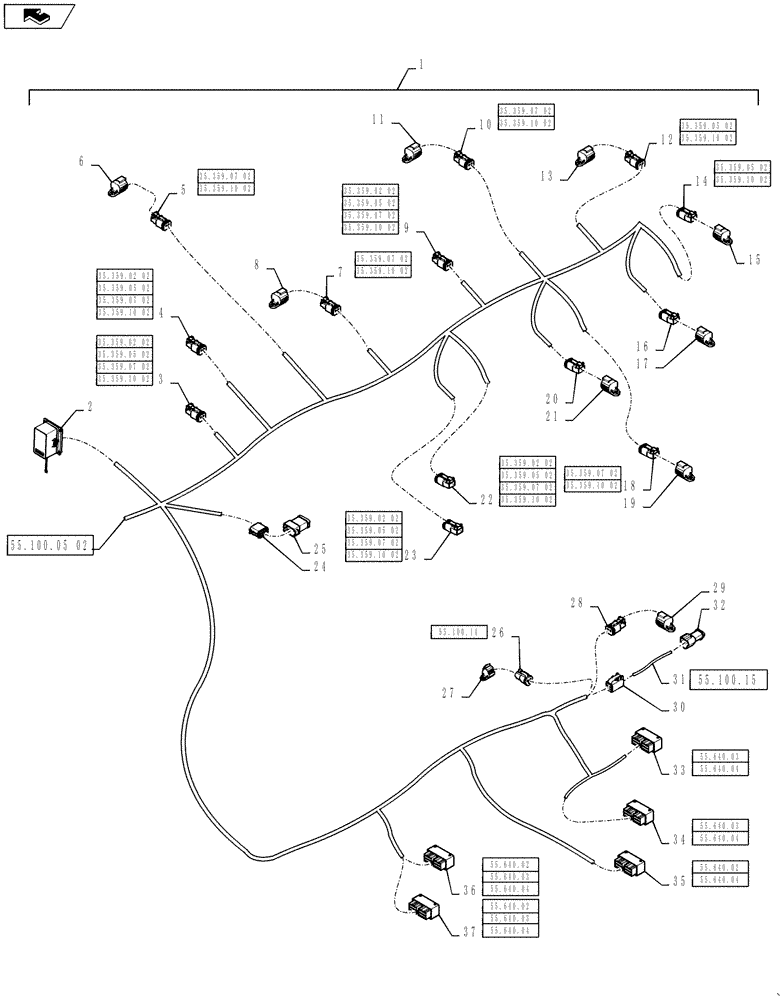

Запчасти Case IH 810 (55.100.05[03]) - PRODUCT HARNESS, VIPER PRO (55) - ELECTRICAL SYSTEMS

1

84573692

WIRE HARNESS

Product, Used With Viper Pro Controller Option, 810, Includes Ref 2 - 37 And All Parts On Fig 55.100.05(01) and 55.100.05(02)

1шт.

2

87312843

FUSE BOX

Fuse and Relay, X-507F2

1шт.

2

87655334

RELAY,12V, 35A, Micro

Fuse and Relay, X-507F2

5шт.

2

121410A1

FUSE,5A, Mini, Tan

Fuse and Relay, X-507F2

4шт.

2

121414A1

FUSE,20A, Mini, Yellow

Fuse and Relay, X-507F2

4шт.

2

87686742

PLUG

Fuse and Relay, X-507F2

14шт.

2

87704966

TERMINAL

Fuse and Relay, X-507F2

20шт.

2

87693249

ELEC. TERMINAL PIN

Fuse and Relay, X-507F2

11шт.

2

84392736

TERMINAL CONNECTOR

Fuse and Relay, X-507F2

5шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Auger Enable, X-509F2

1шт.

3

87695649

ELEC CONNECTOR,Locking, Green

Auger Enable, X-509F2

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Auger Enable, X-509F2

2шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

Main Auger, X-508F2

1шт.

4

87695649

ELEC CONNECTOR,Locking, Green

Main Auger, X-508F2

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Main Auger, X-508F2

2шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Supplemental Auger, X-529F2

1шт.

5

87695649

ELEC CONNECTOR,Locking, Green

LH Supplemental Auger, X-529F2

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Supplemental Auger, X-529F2

2шт.

6

84391159

WIRE CONNECTOR

Cap For LH Supplemental Auger, X-529M2

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Supplemental Auger, X-530F2

1шт.

7

87695649

ELEC CONNECTOR,Locking, Green

RH Supplemental Auger, X-530F2

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Supplemental Auger, X-530F2

2шт.

8

84391159

WIRE CONNECTOR

Cap For RH Supplemental Auger, X-530M2

1шт.

9

87695649

ELEC CONNECTOR,Locking, Green

RH Conveyor Motor, X-502F2

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Conveyor Motor, X-502F2

2шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Supplemental Motor, X-519F2

1шт.

10

87695649

ELEC CONNECTOR,Locking, Green

RH Supplemental Motor, X-519F2

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Supplemental Motor, X-519F2

2шт.

11

84391159

WIRE CONNECTOR

Cap For RH Supplemental Motor, X-519M2

1шт.

12

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Co-Ap Motor, X-527F2

1шт.

12

87695649

ELEC CONNECTOR,Locking, Green

RH Co-Ap Motor, X-527F2

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Co-Ap Motor, X-527F2

2шт.

13

84391159

WIRE CONNECTOR

Cap For RH Co-Ap Motor, X-527M2

1шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Co-Ap Motor, X-528F2

1шт.

14

87695649

ELEC CONNECTOR,Locking, Green

LH Co-Ap Motor, X-528F2

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Co-Ap Motor, X-528F2

2шт.

15

84391159

WIRE CONNECTOR

Cap For LH Co-Ap Motor, X-528M2

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Supplemental Proportionate Valve, X-526F2

1шт.

16

87695649

ELEC CONNECTOR,Locking, Green

Supplemental Proportionate Valve, X-526F2

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Supplemental Proportionate Valve, X-526F2

2шт.

17

84391159

WIRE CONNECTOR

Cap For Supplemental Proportionate Valve, X-526M2

1шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Supplemental Motor, X-531F2

1шт.

18

87695649

ELEC CONNECTOR,Locking, Green

LH Supplemental Motor, X-531F2

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Supplemental Motor, X-531F2

2шт.

19

84391159

WIRE CONNECTOR

Cap For LH Supplemental Motor, X-531M2

1шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

Co-Ap Proportionate Valve, X-525F2

1шт.

20

87695649

ELEC CONNECTOR,Locking, Green

Co-Ap Proportionate Valve, X-525F2

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Co-Ap Proportionate Valve, X-525F2

2шт.

21

84391159

WIRE CONNECTOR

Cap For Co-Ap Proportionate Valve, X-525M2

1шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Conveyor Motor, X-504F2

1шт.

22

87695649

ELEC CONNECTOR,Locking, Green

LH Conveyor Motor, X-504F2

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Conveyor Motor, X-504F2

2шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Conveyor Proportionate Valve, X-517F2

1шт.

23

87695649

ELEC CONNECTOR,Locking, Green

Conveyor Proportionate Valve, X-517F2

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Conveyor Proportionate Valve, X-517F2

2шт.

24

87695592

CONTACT HOUSING,Female, 12 Pole

Splice, X-557F2

1шт.

24

87695651

LOCKING TAB,Wedge Lock

Splice, X-557F2

1шт.

24

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice, X-557F2

11шт.

24

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice, X-557F2

1шт.

25

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, SP-557M2

1шт.

25

87698541

LOCKING TAB,Wedge Lock, 12-Pin

12 Way Splice Pack, SP-557M2

1шт.

26

87695580

ELEC CONNECTOR,Female, 3 Pole

Wet Kit Harness Power, X-550F2

1шт.

26

84074639

LOCKING TAB,Wedge Lock

Wet Kit Harness Power, X-550F2

1шт.

26

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Wet Kit Harness Power, X-550F2

3шт.

27

84391165

HOUSING,Male, 3 Pins

Cap For Wet Kit Harness Power, X-550M2

1шт.

28

87695582

ELEC CONNECTOR,Female, 2 Pole

Control Power, X-500F2

1шт.

28

87695649

ELEC CONNECTOR,Locking, Green

Control Power, X-500F2

1шт.

28

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Control Power, X-500F2

2шт.

29

84391159

WIRE CONNECTOR

Cap For Control Power, X-500M2

1шт.

30

87694153

CONTACT HOUSING,Female, 4 Cavities

Can Buss, X-210F2

1шт.

30

87694146

ELEC CONNECTOR,Locking, Green

Can Buss, X-210F2

1шт.

30

225365C1

SOCKET

Can Buss, X-210F2

4шт.

31

87267294

WIRE HARNESS

Active Terminator Adaptor Harness, H210M

1шт.

See Fig 55.100.15 For Service Parts

1шт.

32

84058092

CONTACT HOUSING,120 Ohm Resistor

120Amp Active Terminator, 210T

1шт.

32

87695625

WIRE CONNECTOR,Locking, Green

120Amp Active Terminator, 210T

1шт.

33

84138326

ELEC CONNECTOR

Supplemental Bin Control, X-556F2

1шт.

33

87270686

TERMINAL

Supplemental Bin Control, X-556F2

8шт.

33

84142712

PLUG

Supplemental Bin Control, X-556F2

22шт.

34

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

Supplemental Bin Control, X-553F2

1шт.

34

87270686

TERMINAL

Supplemental Bin Control, X-553F2

18шт.

34

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

Supplemental Bin Control, X-553F2

5шт.

34

84142712

PLUG

Supplemental Bin Control, X-553F2

7шт.

35

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

Co-Ap Bin Control, X-552F2

1шт.

35

87270686

TERMINAL

Co-Ap Bin Control, X-552F2

21шт.

35

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

Co-Ap Bin Control, X-552F2

5шт.

35

84142712

PLUG

Co-Ap Bin Control, X-552F2

4шт.

36

84138326

ELEC CONNECTOR

Main Bin Control, X554F2

1шт.

36

87270686

TERMINAL

Main Bin Control, X554F2

10шт.

36

84142712

PLUG

Main Bin Control, X554F2

20шт.

37

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

Main Bin Control, X551F2

1шт.

37

87270686

TERMINAL

Main Bin Control, X551F2

20шт.

37

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

Main Bin Control, X551F2

5шт.

37

84142712

PLUG

Main Bin Control, X551F2

5шт.
