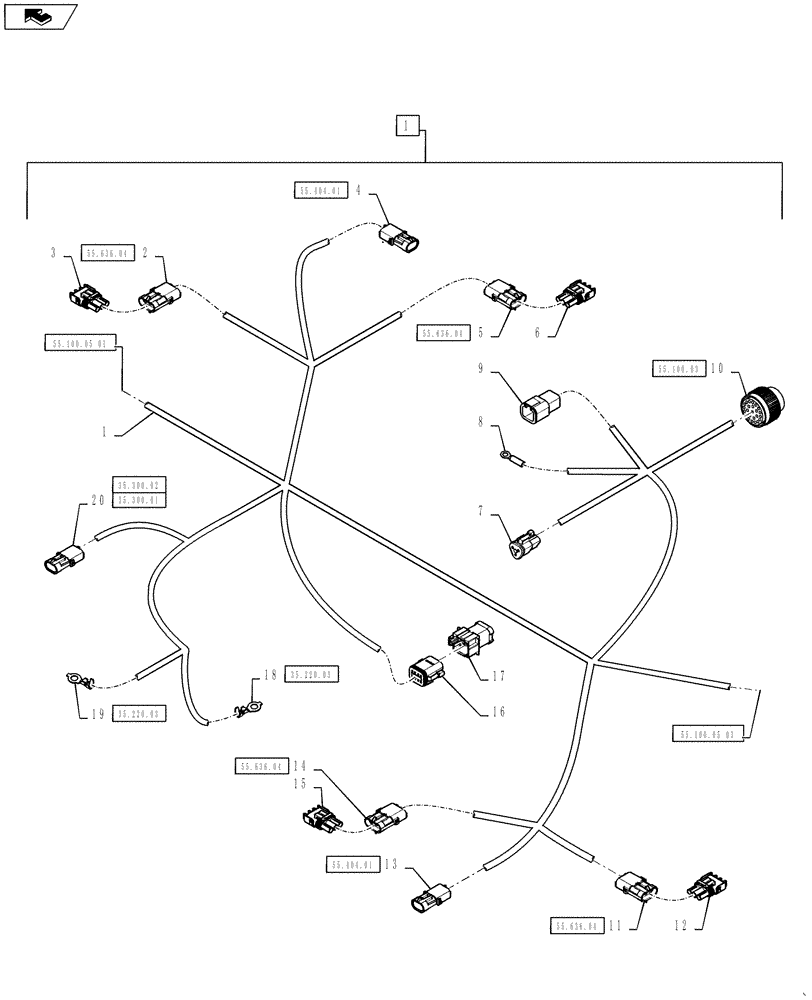

Запчасти Case IH 810 (55.100.05[02]) - PRODUCT HARNESS, VIPER PRO (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
84573692
WIRE HARNESS
Product, Used With Viper Pro Controller Option, 810
1шт.
2
87692858
ELEC CONNECTOR,Male
RH Supplemental RPM Sensor, X-536M2
1шт.
2
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
RH Supplemental RPM Sensor, X-536M2
3шт.
3
87644909
WIRE CONNECTOR,Female, 3 Pins
Cap For RH Supplemental RPM Sensor, X-536F2
1шт.
3
87686742
PLUG
Cap For RH Supplemental RPM Sensor, X-536F2
3шт.
4
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
RH Bin Light, X-549M2
1шт.
4
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
RH Bin Light, X-549M2
2шт.
5
87692858
ELEC CONNECTOR,Male
RH Co-ap RPM Sensor, X-537M2
1шт.
5
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
RH Co-ap RPM Sensor, X-537M2
3шт.
6
87644909
WIRE CONNECTOR,Female, 3 Pins
Cap For RH Co-ap RPM Sensor, X-537F2
1шт.
6
87686742
PLUG
Cap For RH Co-ap RPM Sensor, X-537F2
3шт.
7
87695580
ELEC CONNECTOR,Female, 3 Pole
Denox Engine Harness Interface, X-505F2
1шт.
7
84074639
LOCKING TAB,Wedge Lock
Denox Engine Harness Interface, X-505F2
1шт.
7
84068583
PLUG,12 - 16 Ga, White
Denox Engine Harness Interface, X-505F2
1шт.
7
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Denox Engine Harness Interface, X-505F2
2шт.
8
84398828
TERMINAL,3/8" Ring, SAE 8
Ground, G1-PF2
1шт.
9
87421341
MULTIPOLE CONNECTOR,Male, 4 Pole
Denox Engine Harness Interface, X-506M2
1шт.
9
87707798
WEDGE
Denox Engine Harness Interface, X-506M2
1шт.
9
87704524
ELEC CONNECTOR,Pin, Size 12
Denox Engine Harness Interface, X-506M2
4шт.
10
380841A1
TERMINAL CONNECTOR
Cab Harness Interface, XB-5F2
1шт.
10
84807680
PLUG
Cab Harness Interface, XB-5F2
28шт.
10
223953A1
SOCKET/RECEPTACLE
Cab Harness Interface, XB-5F2
4шт.
10
225039C1
TERMINAL
Cab Harness Interface, XB-5F2
2шт.
10
225241C1
SOCKET
Cab Harness Interface, XB-5F2
1шт.
11
87692858
ELEC CONNECTOR,Male
LH Co-ap RPM Sensor, X-532M2
1шт.
11
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
LH Co-ap RPM Sensor, X-532M2
3шт.
12
87644909
WIRE CONNECTOR,Female, 3 Pins
Cap For LH Co-ap RPM Sensor, X-532F2
1шт.
12
87686742
PLUG
Cap For LH Co-ap RPM Sensor, X-532F2
3шт.
13
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
LH Bin Light, X-533M2
1шт.
13
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
LH Bin Light, X-533M2
2шт.
14
87692858
ELEC CONNECTOR,Male
LH Supplemental RPM Sensor, X-534M2
1шт.
14
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
LH Supplemental RPM Sensor, X-534M2
3шт.
15
87644909
WIRE CONNECTOR,Female, 3 Pins
Cap For LH Supplemental RPM Sensor, X-534F2
1шт.
15
87686742
PLUG
Cap For LH Supplemental RPM Sensor, X-534F2
3шт.
16
87700325
ELEC CONNECTOR,Female, 8 Cavities
Bin Lights Splice, X-559F2
1шт.
16
84806312
LOCKING TAB,Wedge Lock
Bin Lights Splice, X-559F2
1шт.
16
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Bin Lights Splice, X-559F2
8шт.
17
87270259
ELEC CONNECTOR
Bin Lights Splice Pack, SP-559M2
1шт.
18
84477044
TERMINAL
Fan +, X-516F2
1шт.
19
84477044
TERMINAL
Fan -, X-518F2
1шт.
20
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
Fan Speed, X-515M2
1шт.
20
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
Fan Speed, X-515M2
2шт.
Выбрано товаров: 42
