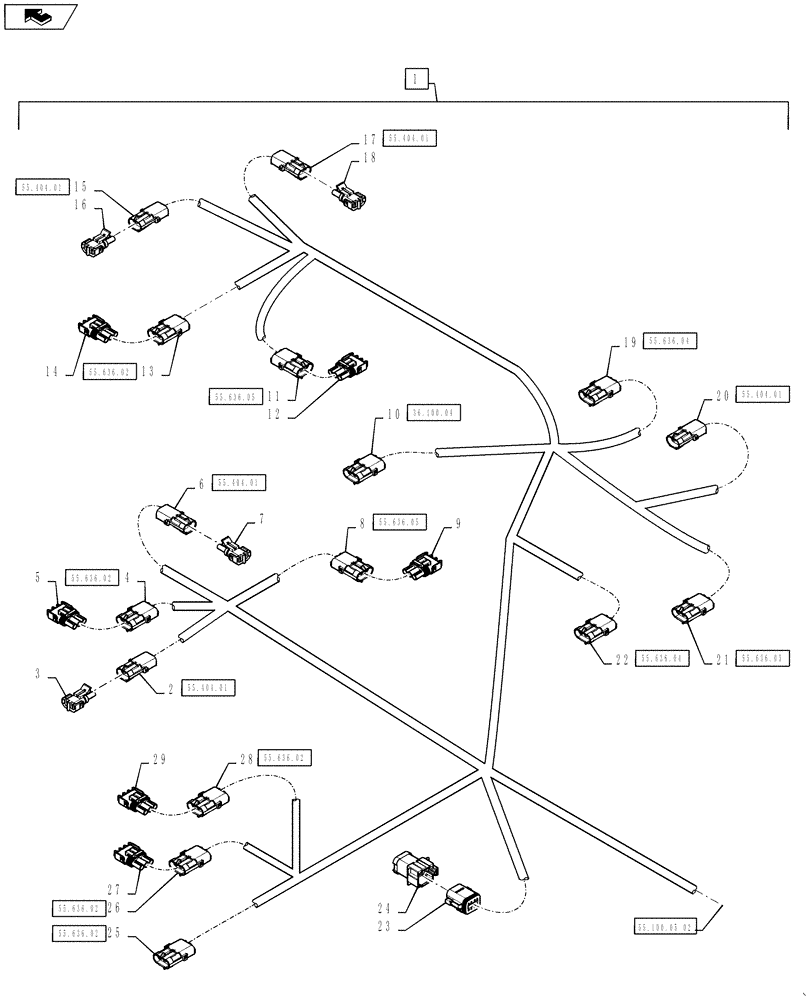

Запчасти Case IH 810 (55.100.05[01]) - PRODUCT HARNESS, VIPER PRO (55) - ELECTRICAL SYSTEMS

1

84573692

WIRE HARNESS

Product, Used With Viper Pro Controller Option, 810, Includes Ref 2 - 29 And All Parts On Fig 55.100.05(02) and 55.100.05(03)

1шт.

2

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

RH Co-ap Light, X-547M2

1шт.

2

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Co-ap Light, X-547M2

2шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For RH Co-ap Light, X-547F2

1шт.

3

87686742

PLUG

Cap For RH Co-ap Light, X-547F2

2шт.

4

87692858

ELEC CONNECTOR,Male

RH Co-ap Bin Level Sensor, X-539M2

1шт.

4

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Co-ap Bin Level Sensor, X-539M2

3шт.

5

87644909

WIRE CONNECTOR,Female, 3 Pins

Cap For RH Co-ap Bin Level Sensor, X-539F2

1шт.

5

87686742

PLUG

Cap For RH Co-ap Bin Level Sensor, X-539F2

3шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

RH Supplemental Bin Light, X-548M2

1шт.

6

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Supplemental Bin Light, X-548M2

2шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For RH Supplemental Bin Light, X-548F2

1шт.

7

87686742

PLUG

Cap For RH Supplemental Bin Light, X-548F2

2шт.

8

87692858

ELEC CONNECTOR,Male

RH Supplemental Auger Sensor, X-544M2

1шт.

8

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Supplemental Auger Sensor, X-544M2

3шт.

9

87644909

WIRE CONNECTOR,Female, 3 Pins

Cap For RH Supplemental Auger Sensor, X-544F2

1шт.

9

87686742

PLUG

Cap For RH Supplemental Auger Sensor, X-544F2

3шт.

10

87692858

ELEC CONNECTOR,Male

Fan RPM Sensor, X-510M2

1шт.

10

87270686

TERMINAL

Fan RPM Sensor, X-510M2

3шт.

11

87692858

ELEC CONNECTOR,Male

LH Supplemental Auger Sensor, X-543M2

1шт.

11

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Supplemental Auger Sensor, X-543M2

3шт.

12

87644909

WIRE CONNECTOR,Female, 3 Pins

Cap For LH Supplemental Auger Sensor, X-543F2

1шт.

12

87686742

PLUG

Cap For LH Supplemental Auger Sensor, X-543F2

3шт.

13

87692858

ELEC CONNECTOR,Male

LH Co-ap Bin Level Sensor, X-538M2

1шт.

13

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Co-ap Bin Level Sensor, X-538M2

3шт.

14

87644909

WIRE CONNECTOR,Female, 3 Pins

Cap For LH Co-ap Bin Level Sensor, X-538F2

1шт.

14

87686742

PLUG

Cap For LH Co-ap Bin Level Sensor, X-538F2

3шт.

15

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

LH Co-ap Light, X-545M2

1шт.

15

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Co-ap Light, X-545M2

2шт.

16

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For LH Co-ap Light, X-545F2

1шт.

16

87686742

PLUG

Cap For LH Co-ap Light, X-545F2

2шт.

17

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

LH Supplemental Bin Light, X-546M2

1шт.

17

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Supplemental Bin Light, X-546M2

2шт.

18

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For LH Supplemental Bin Light, X-546F2

1шт.

18

87686742

PLUG

Cap For LH Supplemental Bin Light, X-546F2

2шт.

19

87692858

ELEC CONNECTOR,Male

LH Main RPM Sensor, X-541M2

1шт.

19

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Main RPM Sensor, X-541M2

3шт.

20

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Main Bin Light, X-513M2

1шт.

20

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Main Bin Light, X-513M2

2шт.

21

87692858

ELEC CONNECTOR,Male

Main Auger Sensor, X-520M2

1шт.

21

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Main Auger Sensor, X-520M2

3шт.

22

87692858

ELEC CONNECTOR,Male

RH Main RPM Sensor, X-542M2

1шт.

22

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

RH Main RPM Sensor, X-542M2

3шт.

23

87700325

ELEC CONNECTOR,Female, 8 Cavities

Splice, X-558F2

1шт.

23

84806312

LOCKING TAB,Wedge Lock

Splice, X-558F2

1шт.

23

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice, X-558F2

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice, X-558F2

7шт.

24

87270259

ELEC CONNECTOR

8 Way Splice Pack, X-558M2

1шт.

25

87692858

ELEC CONNECTOR,Male

Main Bin Level Sensor, X-501M2

1шт.

25

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Main Bin Level Sensor, X-501M2

3шт.

26

87692858

ELEC CONNECTOR,Male

LH Supplemental Bin Sensor, X-535M2

1шт.

26

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

LH Supplemental Bin Sensor, X-535M2

3шт.

27

87644909

WIRE CONNECTOR,Female, 3 Pins

Cap For LH Supplemental Bin Sensor, X-535F2

1шт.

27

87686742

PLUG

Cap For LH Supplemental Bin Sensor, X-535F2

3шт.

28

87692858

ELEC CONNECTOR,Male

Main Bin Level Sensor, X-540M2

1шт.

28

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Main Bin Level Sensor, X-540M2

3шт.

29

87644909

WIRE CONNECTOR,Female, 3 Pins

Cap For Main Bin Level Sensor, X-540F2

1шт.

29

87686742

PLUG

Cap For Main Bin Level Sensor, X-540F2

3шт.
