(39.130.31) - DEFLECTOR ASSEMBLY, 2.5" TUBES, RH BOOM

Запчасти Case IH 810 (39.130.31) - DEFLECTOR ASSEMBLY, 2.5" TUBES, RH BOOM (39) - FRAMES AND BALLASTING

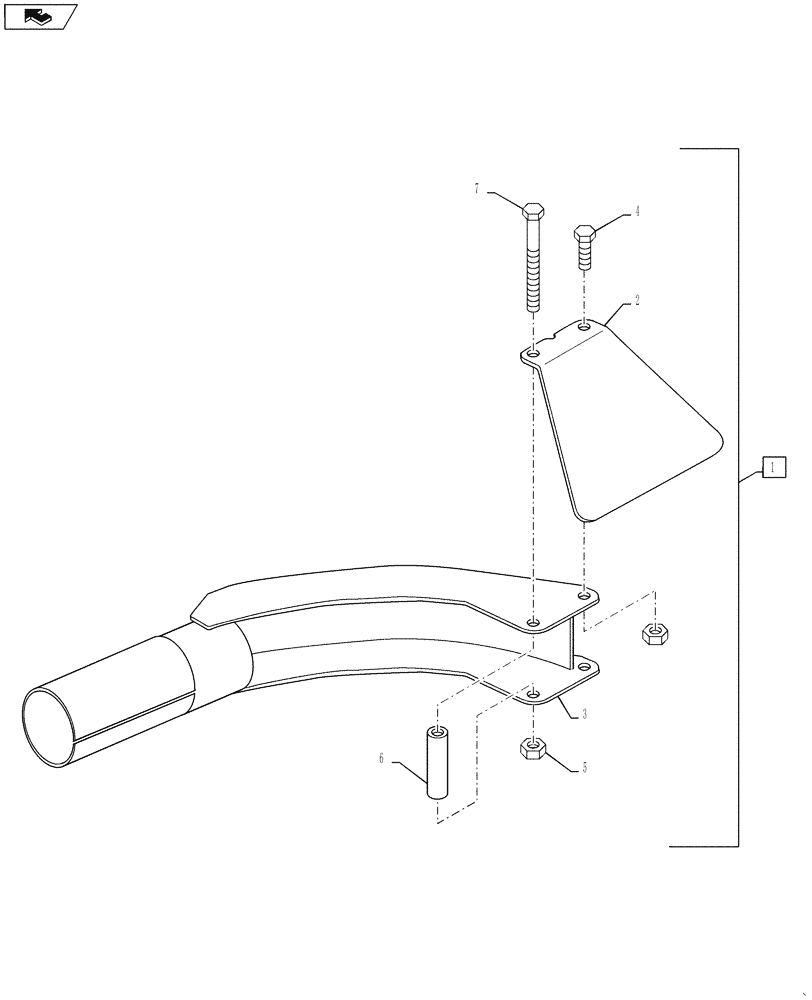

Схема запчастей Case IH 810 - (39.130.31) - DEFLECTOR ASSEMBLY, 2.5" TUBES, RH BOOM (39) - FRAMES AND BALLASTING
7
home
5
6
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN325678

DEFLECTOR

Assembly, 2-1/2" Tube, RH, Includes Ref 2 - 7

1шт.

2

BN325656

DEFLECTOR

End Plate, 2-1/2" Tube

1шт.

3

BN325019

DEFLECTOR

2-1/2" Tube

1шт.

4

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

5

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

6

BN325020

SPACER

Deflector

1шт.

7

BN320109

BOLT,5/16"-18 X 3.50", Stainless

1шт.
