(39.130.29) - VENTURI GROUP, RH, 3" TUBES

Запчасти Case IH 810 (39.130.29) - VENTURI GROUP, RH, 3" TUBES (39) - FRAMES AND BALLASTING

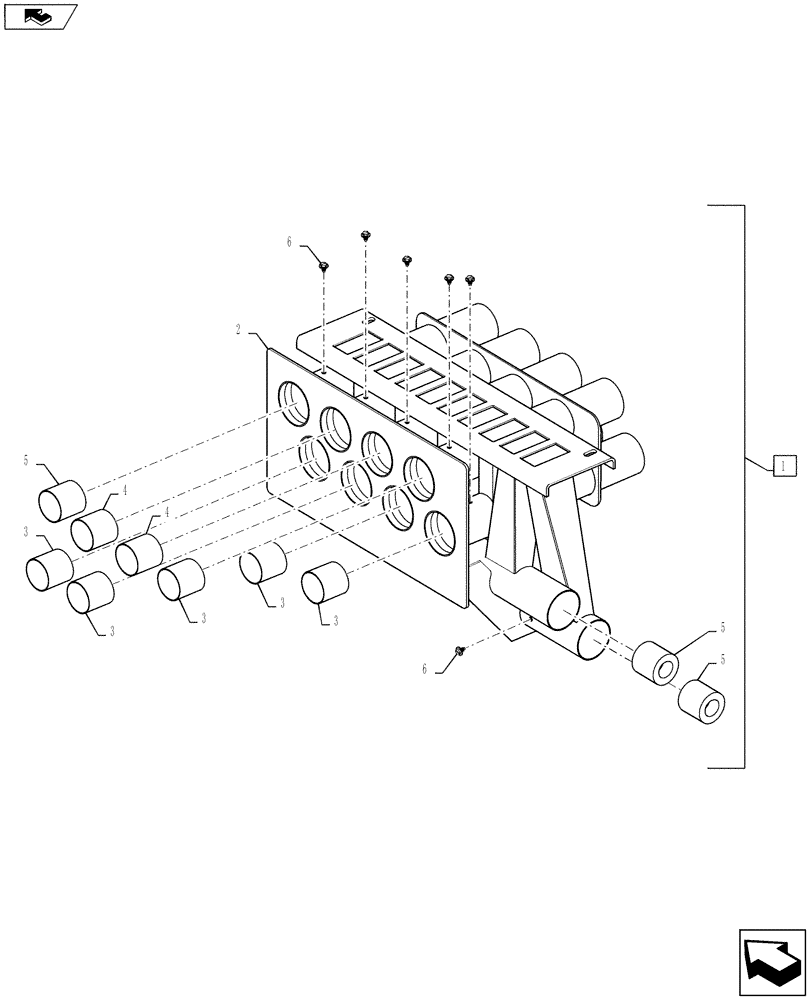

Схема запчастей Case IH 810 - (39.130.29) - VENTURI GROUP, RH, 3" TUBES (39) - FRAMES AND BALLASTING
4
5
3
6
4
3
2
1
3
3
5
6
5
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN303282

VENTURI

Complete, RH, 3" Boom Tubes, 3" Rear Tubes, Includes Ref 2 - 6

1шт.

2

BN300818

VENTURI

RH, 3" Tubes

1шт.

3

BN303564

VENTURI

3" OD x 1.2" ID, Green

5шт.

4

BN303565

VENTURI

3" OD x 1.3" ID, Yellow

2шт.

5

BN303566

VENTURI

3" OD x 1.4" ID, Brown

3шт.

6

BN55388

SCREW,#10 x 3/8", SST

#10 X 3/8, Stainless Steel, Type A

10шт.
