(39.130.27) - VENTURI GROUP, RH, 2-1/2" TUBES

Запчасти Case IH 810 (39.130.27) - VENTURI GROUP, RH, 2-1/2" TUBES (39) - FRAMES AND BALLASTING

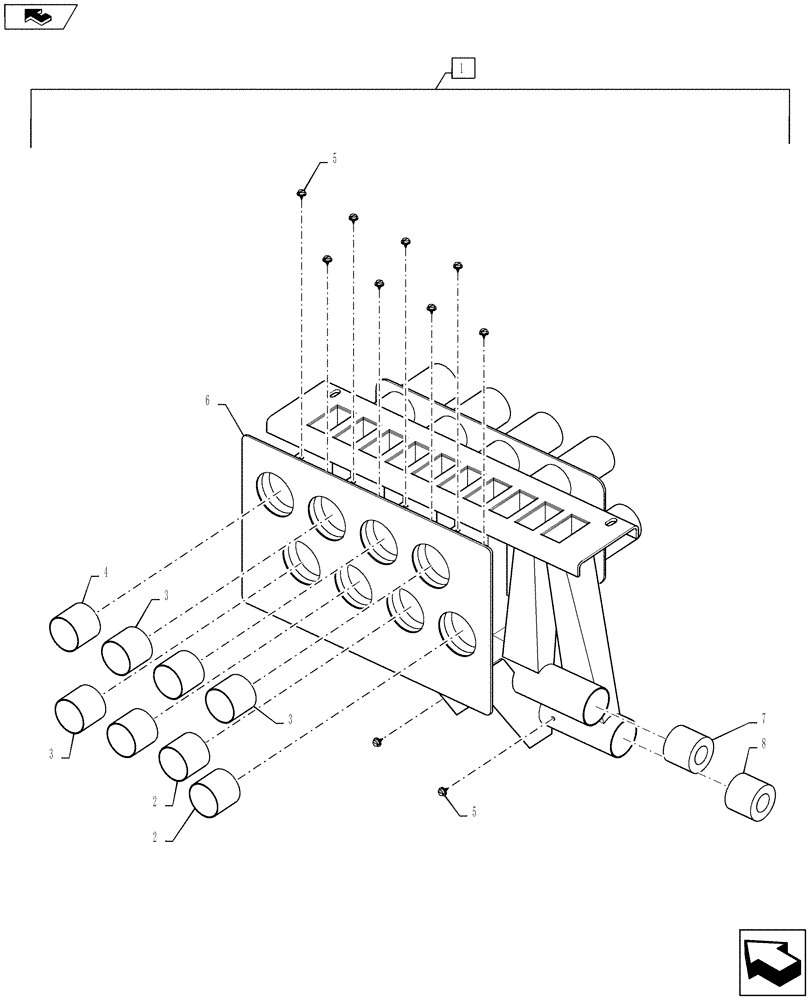

Схема запчастей Case IH 810 - (39.130.27) - VENTURI GROUP, RH, 2-1/2" TUBES (39) - FRAMES AND BALLASTING
6
2
5
8
4
7
2
1
5
3
3
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86986582

VENTURI

Complete, RH, 2-1/2" Boom Tubes, 3" Rear Tubes, Includes Ref 2 - 8

1шт.

2

BN300323

VENTURI

2-1/2" OD x 1" ID, Blue

2шт.

3

BN300324

VENTURI

2-1/2" OD x 1.1" ID, Red

5шт.

4

BN300325

VENTURI

2-1/2" OD x 1.2" ID, Green

1шт.

5

BN55388

SCREW,#10 x 3/8", SST

#10 X 3/8, Stainless Steel, Type A

10шт.

6

86986576

VENTURI

RH, 2.5" Boom Tubes With 3" Rear Tubes

1шт.

7

BN303566

VENTURI

3" OD x 1.4" ID, Brown

1шт.

8

BN303565

VENTURI

3" OD x 1.3" ID, Yellow

1шт.
