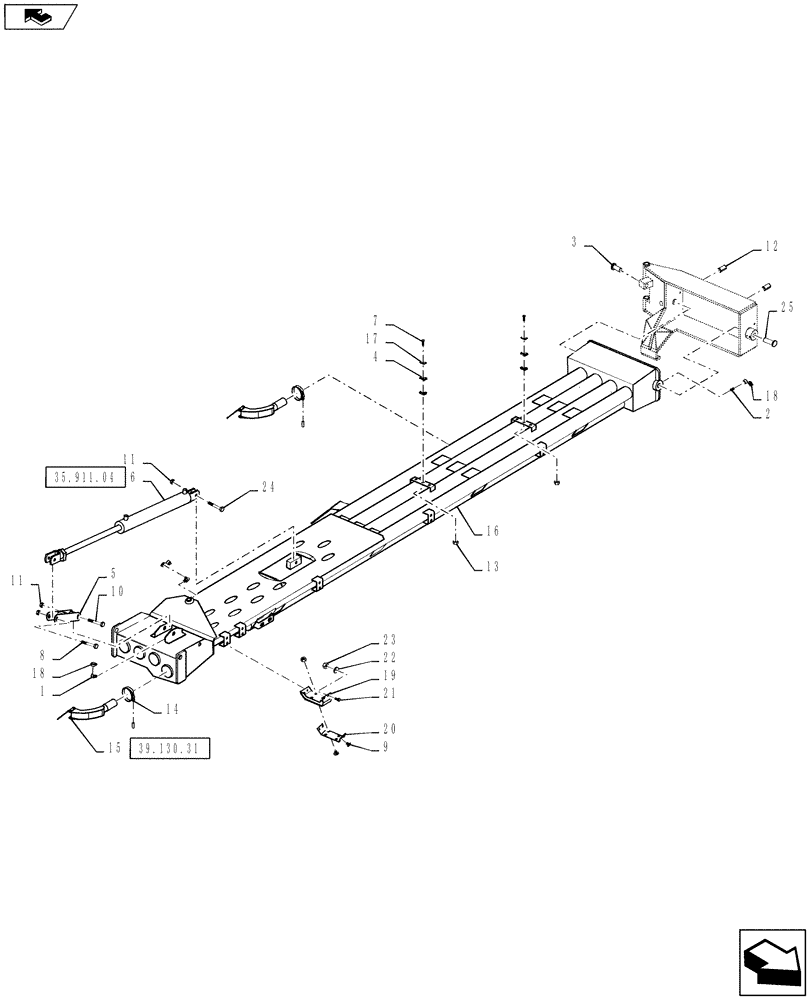

Запчасти Case IH 810 (39.130.22) - 70 BOOM, RH, INNER, 2-1/2" TUBES (39) - FRAMES AND BALLASTING

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

1шт.

2

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

3

BN15256

PIN,31.75mm OD x 63.5mm L

1.25" Dia x 2.50"

1шт.

4

BN29779

CLAMP

Dual, 1/2" Tube

3шт.

5

87265962

ARM

Control Link

1шт.

6

87266458

CYLINDER,Double Acting, 31.75mm Rod, 503.68mm Stroke

Outer Boom Fold, 70' Boom, 3 X 19.63 X 1.25, Complete

1шт.

See Fig 35.911.04 For Service Parts

1шт.

7

BN50239

BOLT,5/16"-18 x 1.75", Stainless

3шт.

8

87310194

BOLT,3/4"-10 x 3-1/2", G5, DOR

1шт.

9

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

8шт.

10

87310196

BOLT,3/4"-10 x 4-1/2", G5, DOR

1шт.

11

87310323

NUT,3/4"-10, GR B, DOR

3шт.

12

84204174

SLOTTED PIN

3/8 X 2-1/2", Stainless Steel

2шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

14

87271751

CLAMP

Hi-Torque

4шт.

15

BN325678

DEFLECTOR

Assembly, 2-1/2" Tube, RH

4шт.

See Fig 39.130.31 For Service Parts

1шт.

16

87269889

BOOM

70', RH, Inner

1шт.

17

BN311653

PLATE

Top, Dual, Size 2

3шт.

18

BN69951

CAP

Grease

3шт.

19

BN315570

CRADLE

Boom Holder

1шт.

20

BN315572

CRADLE

Slide, Boom Holder

1шт.

21

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

22

87310600

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

23

87343981

NUT,1/2"-13, GR B, DOR

4шт.

24

87310195

BOLT,3/4"-10 X 4.00", G5, DOR

1шт.

25

BN65661

PIN,31.75mm OD x 66.8mm L

1.25" dia x 2.88"

1шт.
