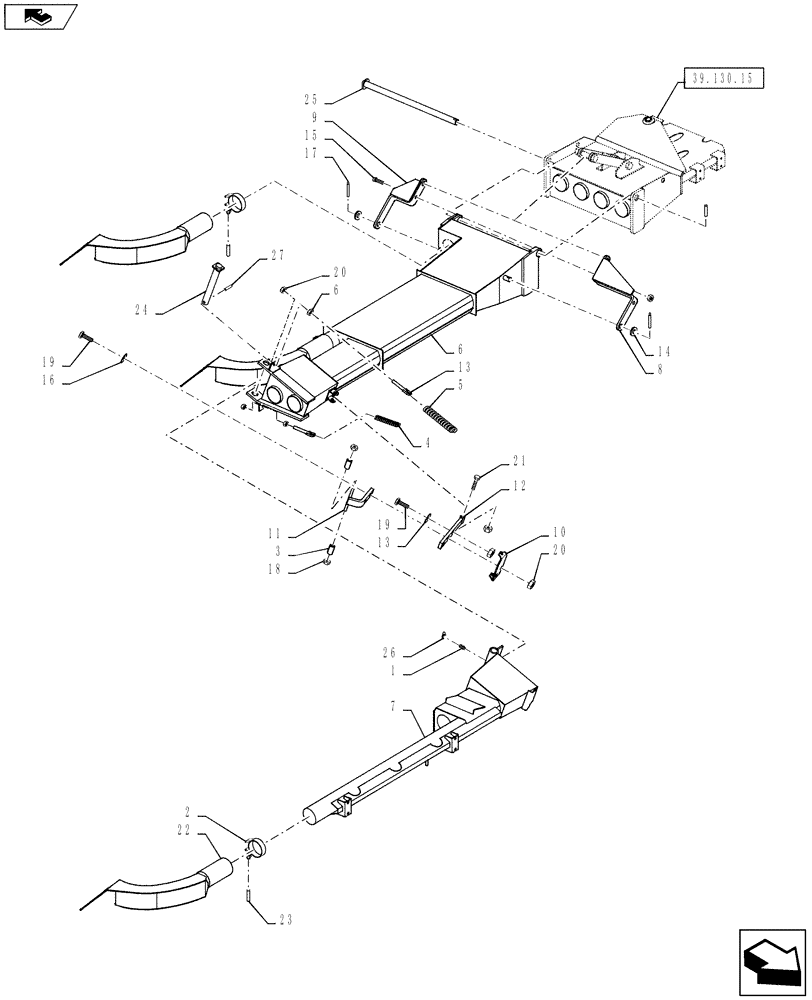

Запчасти Case IH 810 (39.130.17) - 60 BOOM, RH, OUTER, 3" TUBES (39) - FRAMES AND BALLASTING

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

1шт.

2

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", Stainless Steel, T-Bolt

4шт.

3

BN19820

SPACER,10.92mm ID x 22.1mm OD x 36.2mm L

plastic .37 id x 1.42

2шт.

4

BN24468

SPRING

Tension 1.25" x 5.5"

2шт.

5

BN24504

LEVER

Takeup, Spring

2шт.

6

BN35536

BOOM

Mid, RH

1шт.

7

BN35538

BOOM

Breakaway, RH

1шт.

8

BN35561

ARM

Fold, Front, RH

1шт.

9

BN35563

ARM

Fold, Rear, RH

1шт.

10

BN35850

BRACKET

Spring, Breakaway

1шт.

11

BN35851

LATCH

Breakaway

1шт.

12

BN35853

SUPPORT

Breakaway Latch

1шт.

13

BN50071

NUT,1/2"-13, Stainless

3шт.

14

87564720

WASHER,0.78" ID x 1.25" OD x 0.07" Thk

2шт.

15

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

1шт.

16

BN50595

WASHER,1/2", Stainless

2шт.

17

BN50604

COTTER PIN

1/8 X 1-1/2

2шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

19

BN50786

BOLT,1/2"-13 x 2", Stainless

3шт.

20

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

7шт.

21

BN55368

BOLT,1/2"-13 X 2-1/2", Stainless Steel

1шт.

22

344018A1

DEFLECTOR

RH

4шт.

23

BN68086

CAP

Round, Rubber, 1/4" ID X 1" Long

4шт.

24

BN69944

PIN

Breakaway

1шт.

25

BN69947

PIN

Mid Boom

1шт.

26

BN69951

CAP

Grease

1шт.

27

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 x 1 1/2

2шт.
