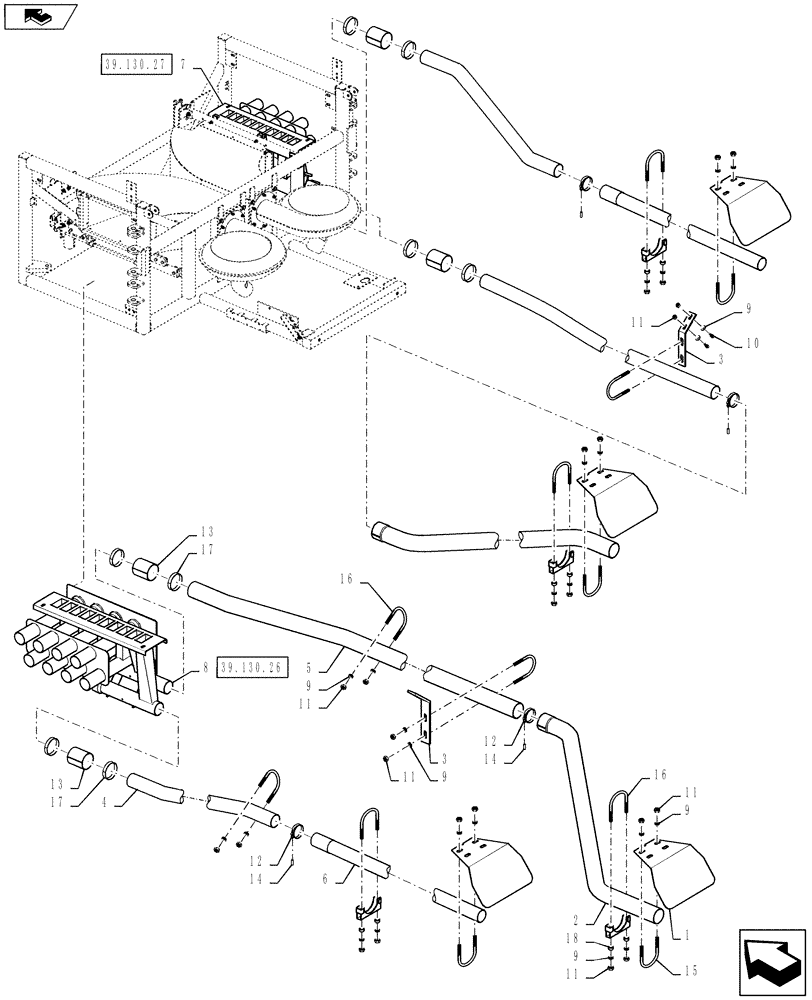

Запчасти Case IH 810 (39.130.11) - 60 BOOM REAR TUBES, 2-1/2" TUBES (39) - FRAMES AND BALLASTING

1

344019A1

DEFLECTOR

Rear

4шт.

2

86986121

TUBE,3" OD

Outside Rear, 60' Boom

2шт.

3

BN300747

BRACKET

Rear Tubes

2шт.

4

86986579

TUBE,3" OD

Rear Delivery

2шт.

5

86986436

TUBE,3" OD x 99.25", 4.31" L

Rear Delivery

2шт.

6

86986580

TUBE,3" ID x 112.25", 2.50" L

Rear Delivery

2шт.

7

86986582

VENTURI

RH, 2-1/2" Boom Tubes, 3" Rear Tubes

1шт.

See Fig 39.130.27 For Service Parts

1шт.

8

86986583

VENTURI

LH, 2-1/2" Boom Tubes, 3" Rear Tubes

1шт.

See Fig 39.130.26 For Service Parts

1шт.

9

BN50146

WASHER,3/8", Stainless

40шт.

10

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

40шт.

12

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", Stainless Steel, T-Bolt

4шт.

13

86986595

COUPLING,76.2mm ID x 88.9mm OD x 88.9mm L

3" ID

4шт.

14

BN68086

CAP

Round, Rubber, 1/4" ID X 1" Long

4шт.

15

BN68492

U-BOLT

3/8-16 UNC X 3, Stainless Steel

8шт.

16

BN53399

PIPE CLAMP

3" Heavy Duty

10шт.

17

87485005

CLAMP,2.56" - 3.5"

Hose, SAE 48, 3.5 - 2.56

8шт.

18

87265704

SPACER

Nylon. 10.4mm ID x 22mm OD x 10mm Thick

8шт.
