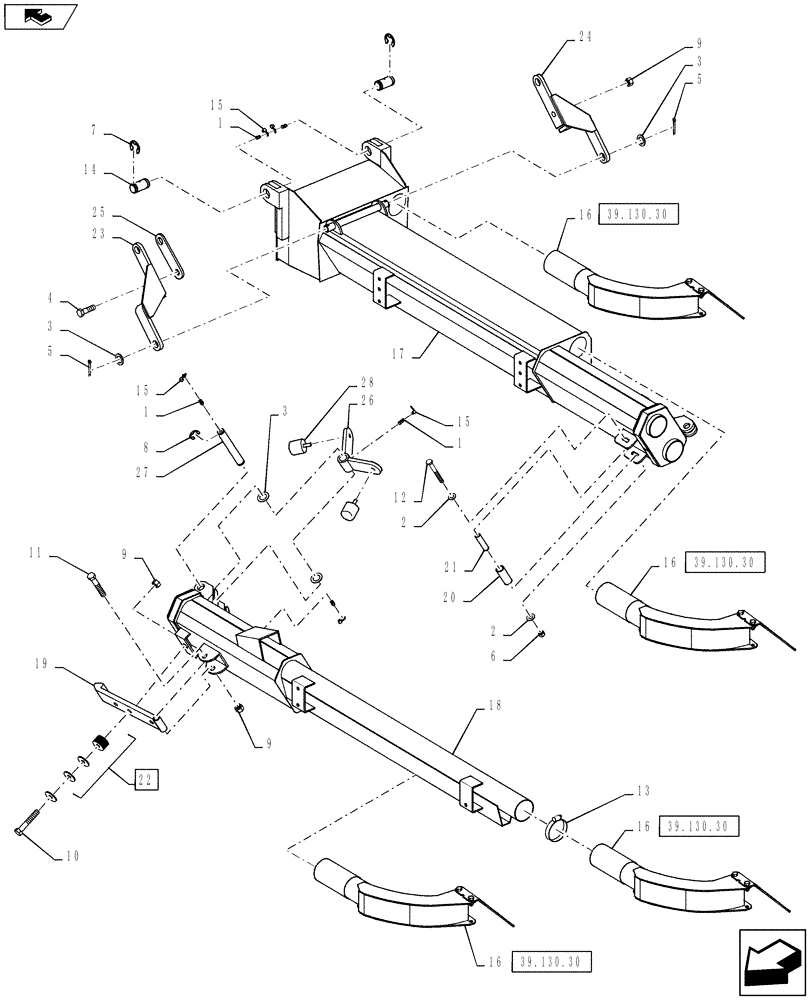

Запчасти Case IH 810 (39.130.07) - 60 BOOM, LH, OUTER, 2-1/2" TUBES (39) - FRAMES AND BALLASTING

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

5шт.

2

87310597

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

3

87564720

WASHER,0.78" ID x 1.25" OD x 0.07" Thk

4шт.

4

BN50594

BOLT,1/2"-13 x 1.75", Stainless

1шт.

5

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.

6

87343970

NUT,3/8"-16, G8, DOR

1шт.

7

BN52335

E-RING,1"

E-Type, 1", SST

4шт.

8

BN52336

CLIP

E-Type, 3/4", SST

2шт.

9

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

3шт.

10

BN55369

BOLT,1/2"-13 x 3", Stainless

1шт.

11

BN55372

BOLT,1/2"-13 x 3.25", Stainless

1шт.

12

87310189

BOLT,3/8"-16 x 3-1/2", G5

1шт.

13

87271751

CLAMP

Hi-Torque

4шт.

14

BN67861

PIN,26.42mm OD x 50.8mm L

Mid Boom Fold

2шт.

15

BN69951

CAP

Grease

5шт.

16

BN325679

DEFLECTOR

Assembly, 2-1/2" Tube, LH

4шт.

See Fig 39.130.30 For Service Parts

1шт.

17

BN69196

BOOM

Mid, 2-1/2" Boom, LH

1шт.

18

BN69198

BOOM

Breakaway, 2-1/2" Boom, LH

1шт.

19

BN69290

LINK

Breakaway

1шт.

20

BN69294

ROLLER

Breakaway

1шт.

21

BN69295

SPACER

Breakaway

1шт.

22

BN69452

SPRING

DISC, 1.5 X .515 X .07

14шт.

23

87265964

LINKAGE

Boom Fold, RH

1шт.

24

87265965

LINKAGE

Boom Fold, LH

1шт.

25

BN69466

SPACER

Boom Fold Links

1шт.

26

BN69467

STOP

Breakaway

1шт.

27

BN69745

PIN,20.07mm OD x 146.05mm L

Outer Boom Fold

1шт.

28

BN25232

BUMPER

1.56" Dia - Urethane

2шт.
