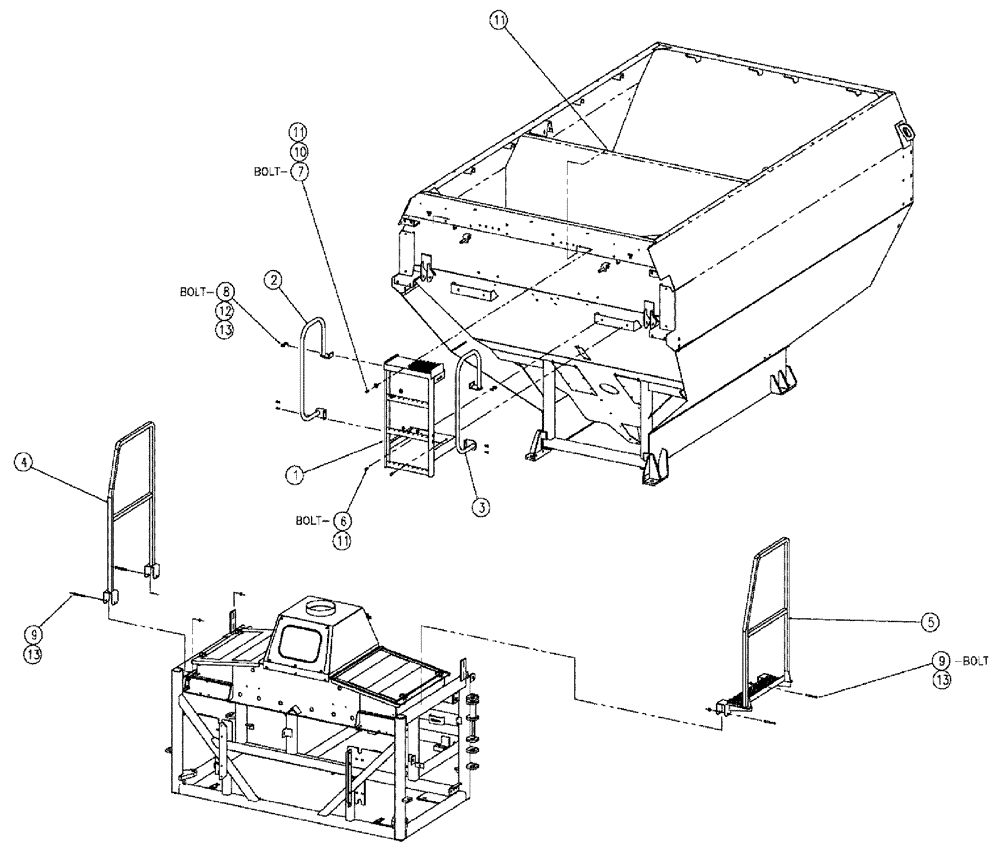

Запчасти Case IH 810 (02-054) - LADDER GROUP, SINGLE BIN Bin Group

1

87267597

LADDER

Single Bin

1шт.

2

BN313701

HANDRAIL

W/M, SINGLE, L.H.

1шт.

3

BN313702

HANDRAIL

W/M, SINGLE, R.H.

1шт.

4

87271434

HANDRAIL

RH, Start Serial: 6999

1шт.

4a

343304A1

HANDRAIL

RH

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

5

87271435

HANDRAIL

LH, Start Serial: 6999

1шт.

5a

343303A1

HANDRAIL

outer, LH

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

6

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

7

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

8шт.

9

BN50242

BOLT,5/16"-18 X 3-1/4", Stainless Steel

4шт.

10

BN50146

WASHER,3/8", Stainless

2шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

12

BN50142

WASHER,5/16", Stainless Steel

8шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

12шт.
