(02-053) - HYDRAULIC TUBES GROUP, TRIPLE BIN, 37 & 50 CU. FT.

Запчасти Case IH 810 (02-053) - HYDRAULIC TUBES GROUP, TRIPLE BIN, 37 & 50 CU. FT. Bin Group

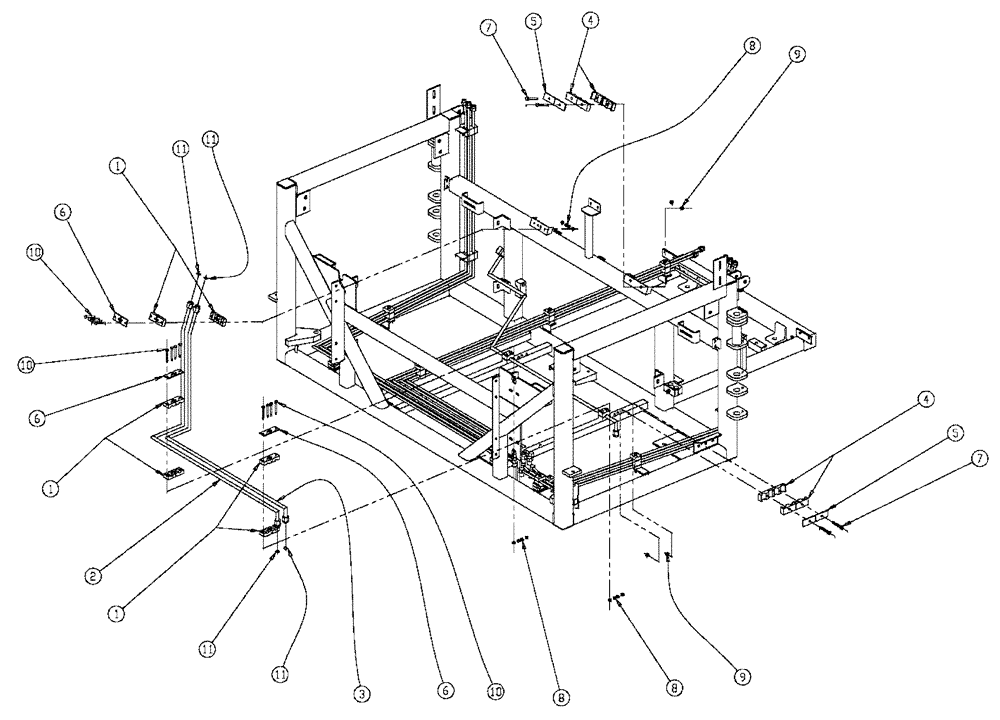

Схема запчастей Case IH 810 - (02-053) - HYDRAULIC TUBES GROUP, TRIPLE BIN, 37 & 50 CU. FT. Bin Group
11
11
9
8
1
11
7
4
8
1
6
9
3
10
6
7
8
4
2
6
10
5
1
5
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN29783

CLAMP

Single, 1/2" Tube

6шт.

2

BN306982

TUBE

COAP, RH

1шт.

3

BN306983

TUBE

SUPP, RH

1шт.

4

BN307913

CLAMP

DUAL, 1/2 PIPE

4шт.

5

BN309484

PLATE

TOP, DUAL, SIZE 3

4шт.

6

BN309485

PLATE

TOP, SINGLE, SIZE 2

6шт.

7

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

4шт.

8

BN55359

LOCK NUT,1/4"-20, SS

12шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

10

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

12шт.

11

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR 8 FFOR

4шт.
