(02-052) - HYDRAULIC TUBES GROUP, DOUBLE BIN, 37 & 50 CU. FT.

Запчасти Case IH 810 (02-052) - HYDRAULIC TUBES GROUP, DOUBLE BIN, 37 & 50 CU. FT. Bin Group

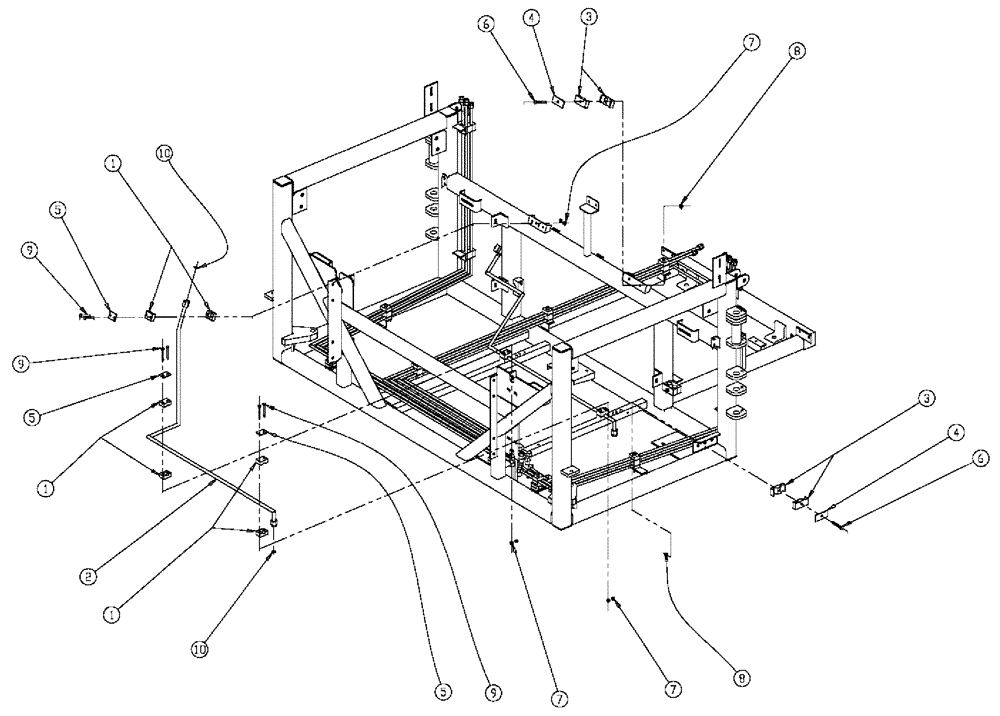

Схема запчастей Case IH 810 - (02-052) - HYDRAULIC TUBES GROUP, DOUBLE BIN, 37 & 50 CU. FT. Bin Group
4
6
5
2
7
1
7
8
5
9
8
6
10
3
3
7
1
5
1
10
9
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN29783

CLAMP

Single, 1/2" Tube

3шт.

2

BN306982

TUBE

COAP, R.H.

1шт.

3

BN307913

CLAMP

DUAL, 1/2 PIPE

2шт.

4

BN309484

PLATE

TOP, DUAL, SIZE 3

2шт.

5

BN309485

PLATE

TOP, SINGLE, SIZE 2

3шт.

6

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

2шт.

7

BN55359

LOCK NUT,1/4"-20, SS

6шт.

8

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

9

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

6шт.

10

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR 8 FFOR

2шт.
